INSTALLATION INSTRUCTIONS FOR PART GMOS-LAN-09
GM LAN non-amplified OnStar
Interface 2014-up
Note: This interface will also work in vehicles listed below that are not equipped with OnStar.
CHEVROLET
Silverado 1500
KIT FEATURES
• Provides accessory (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Used in non-amplified systems
• Retains chimes
• Provides NAV outputs (parking brake,
reverse, mute, V.S.S.)
• Retains OnStar/OE Bluetooth
METRA. The World's best kits.™
GMOS-LAN-09
APPLICATIONS
GMC
2014-up
Sierra 1500
• Adjustable volume for chimes and OnStar
• Retains OE AUX input
• High level speaker input
• USB updatable
• Retains balance and fade
1-800-221-0932
INTERFACE COMPONENTS

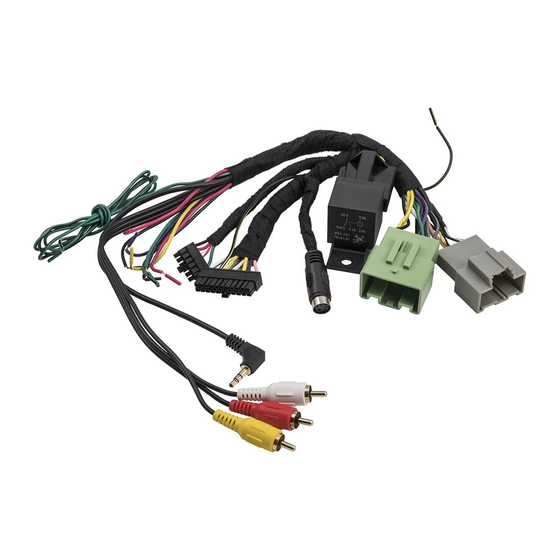

• GMOS-LAN-09 interface • 16-pin harness with
stripped leads • 22-pin harness to 16 and 20-pin
GM harness with stripped leads
TOOLS REQUIRED
• Cutting tool • Crimping tool • Tape • Connectors
(example: butt-connectors, bell caps, etc.)
2014-up
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
metraonline.com
© COPYRIGHT 2004-2013 METRA ELECTRONICS CORPORATION
