INSTALLATION INSTRUCTIONS FOR PART INSTGMOS-LAN-03
GM LAN 11 Non-amplified OnStar
• Provides accessory (12-volt 10-amp)
• Retains R.A.P. (Retained Accessory Power)
• Used in non-amplified systems or when replacing amplified systems
• Retains chimes
• Provides NAV outputs (Parking Brake, Reverse, Mute, V.S.S.)
• ASWC harness included (ASWC not included)
• Retains OnStar/OE Bluetooth
• Adjustable volume for chimes and OnStar
• High level speaker input
• USB updatable
• Retains balance and fade

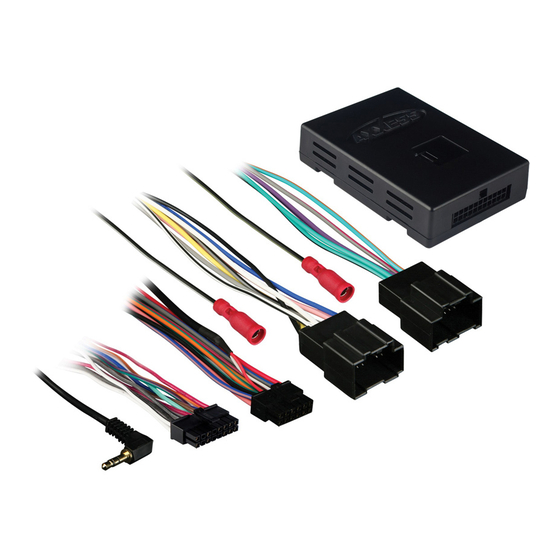

GMOS-LAN-03 interface • 16-pin harness with stripped leads
18-pin harness to 30-pin GM harness with stripped leads
Cutting Tool • Crimping Tool • Tape • Connectors (example: butt-connectors, bell caps, etc.
