Axxess AX-CH013-SWC Installation Instructions Manual

Chrysler data interface with swc2004-up
Hide thumbs
Table of Contents

Advertisement

Quick Links

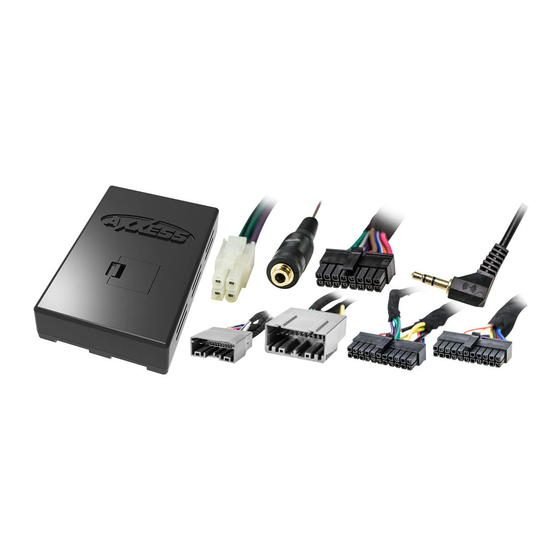

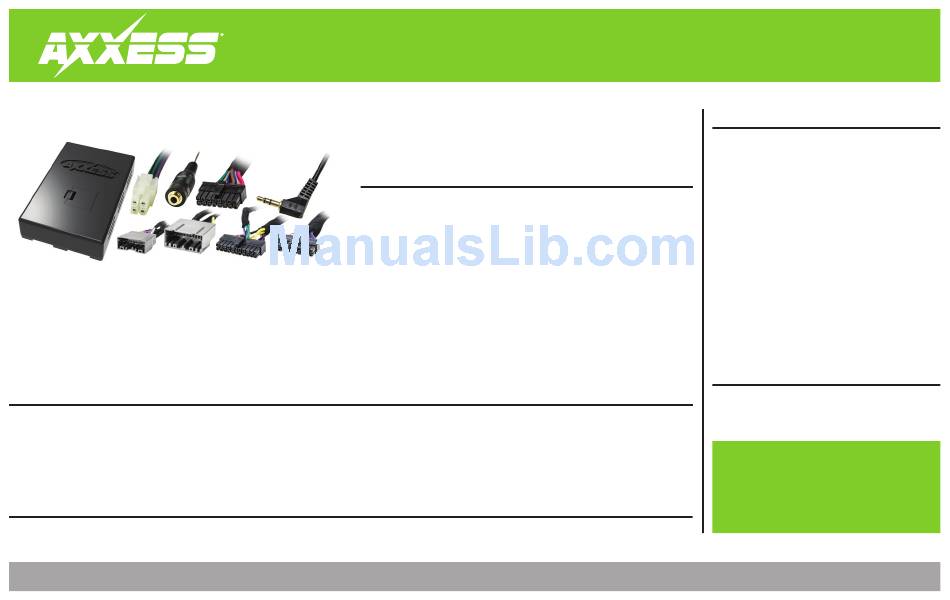

INTERFACE COMPONENTS
• AX-CH013-SWC interface
• LD-BX-CH3 harness
• LD-BX-CH4 harness
• 16-pin harness with stripped leads
APPLICATIONS
See inside front cover
AxxessInterfaces.com
Chrysler Data Interface with SWC
*Visit AxxessInterfaces.com for up-to-date vehicle specific applications.
INTERFACE FEATURES
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Retains safety chimes (LD-BX-CH4 applications)
• Can be used in both amplified and non-amplified models
• Retains balance and fade (non-amplified models only)
• Retains Blind Spot Detection (if equipped)
• Includes antenna adapters for both generations of vehicles
• Micro "B" USB updatable
• 4-pin harness with stripped leads
• Female 3.5mm connector with stripped lead
• Antenna adapters (2)
© COPYRIGHT 2018 METRA ELECTRONICS CORPORATION
AX-CH013-SWC
I N S TA L L AT I O N I N S T R U C T I O N S
2004-up*

TABLE OF CONTENTS

Connections to be made ................................... 3-6
- For models without an amplifier .......................3
- For models with an amplifier ............................4
Installing the AX-CH013-SWC ................................5
Programming the AX-CH013-SWC ........................6
Adjusting the AX-CH013-SWC ................................6
Steering wheel control settings ....................... 7-9
- L.E.D. feedback ....................................................7
- Changing radio type ...........................................7
Troubleshooting ................................................... 10
TOOLS REQUIRED
• Wire cutter • Crimp tool • Solder gun • Tape
• Connectors (example: butt-connectors, bell caps, etc.)
• Small flat-blade screwdriver
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
REV. 7/25/18 INSTAX-CH013-SWC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AX-CH013-SWC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axxess AX-CH013-SWC

Summary of Contents for Axxess AX-CH013-SWC

  • Page 1: Table Of Contents

    - For models with an amplifier ......4 INTERFACE FEATURES - 3.5mm jack steering wheel control retention ..5 • Provides accessory power (12-volt 10-amp) Installing the AX-CH013-SWC ........5 • Retains R.A.P. (retained accessory power) Programming the AX-CH013-SWC ......6 • Provides NAV outputs (parking brake, reverse, speed sense) Adjusting the AX-CH013-SWC ........6...
  • Page 2 APPLICATIONS Applications below use Applications below use the LD-BX-CH3 harness the LD-BX-CH4 harness CHRYSLER CHRYSLER JEEP 2005-2007 2011-2014 Commander 2008-2010 Aspen 2007 2008-2010 Compass 2009-2017.5 PT Cruiser 2006-2010 Aspen 2008-2009 Grand Cherokee 2008-2013 Sebring 2007-2010 Liberty 2008-2012 DODGE Town & Country 2008-2017 Patriot 2009-2017...

  • Page 3: Connections To Be Made

    CONNECTIONS TO BE MADE Attention! This interface will work with models that are either non-amplified, or amplified. From the LD-BX-CH3 OR LD-BX-CH4 harness to the aftermarket radio: Please follow the instructions carefully for your model vehicle. Failure to do so will result in •...

  • Page 4: For Models With An Amplifier

    CONNECTIONS TO BE MADE (CONT) The following (3) wires are only for multimedia/navigation radios that require these wires. Attention! This interface will work with models that are either non-amplified, analog amplified, or digital amplified. Please follow the instructions carefully for your model vehicle. Failure to do •...

  • Page 5: Mm Jack Steering Wheel Control Retention

    For the radios listed below, connect the included female 3.5mm connector with stripped leads, to the male 3.5mm SWC jack from the AX-CH013-SWC. Any remaining wires tape off and disregard. Attention! Do not connect the AX-CH013-SWC harness to the wiring harness in the vehicle just yet. •...

  • Page 6: Programming The Ax-Ch013-Swc

    • Start the vehicle. • With a small flat-blade screwdriver, adjust the potentiometer clockwise to raise the audio • Connect the AX-CH013-SWC harness to the wiring harness in the vehicle. level; counterclockwise to lower the audio level. • The L.E.D. will initially turn on solid Green, then turn off for a few seconds while it auto •...

  • Page 7: Steering Wheel Control Settings

    * Note: If the AX-CH013-SWC flashes Red (7) times, and you do not have an Alpine radio 5. Once the desired radio number has been selected, press and hold the Volume-Down button connected to it, that means the AX-CH013-SWC does not detect a radio connected it.

  • Page 8: Remapping The Steering Wheel Control Buttons

    (1) second until the L.E.D. comes on, and then release the Volume-Up button. This will tell 1. Eclipse (Type 1) 7. Alpine 13. LG the AX-CH013-SWC that this function is not available and it will move on to the next function. 2. Kenwood 8. Visteon 14. Parrot 3.

  • Page 9: Dual Assignment Instructions (Long Button Press)

    Dual assignment legend 1. Not allowed 7. Preset-Up 13. On-Hook The AX-CH013-SWC has the capability to assign (2) functions to a single button, except Volume- 2. Not allowed 8. Preset-Down 14. Off-Hook Up and Volume-Down. Follow the steps below to program the button(s) to your liking.

  • Page 10: Troubleshooting

    TROUBLESHOOTING Resetting the AX-CH013-SWC 1. The Blue reset button is located inside the interface, between the two connectors. The button is accessible outside the interface, no need to open the interface. 2. Press and hold the reset button for two seconds, and then let go to reset the interface.
  • Page 11 REV. 7/25/2018 INSTAX-CH013-SWC...
  • Page 12 AX-CH013-SWC I N S TA L L AT I O N I N S T R U C T I O N S IMPORTANT If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated.
