Installation instructions for part GMOS-LAN-03
GM Data Interface
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Provides NAV outputs (parking brake,
reverse, speed sense)
• Pre-wired ASWC-1 harness (ASWC-1 sold
separately)
• Retains chimes to the factory speaker
* If the vehicle is amplified, either use the GMOS-LAN-04 interface, or bypass the amplifier. If bypassing the
amplifier, follow the "Axxess Interface Amp Bypass Schematic" online.
CHEVROLET
Cobalt
2007-2010
HHR
2006-2011
Malibu
2008-2012
®
Axxess Integrate
®
GMOS-LAN-03
2006-2012
• Adjustable chime level
• Retains OnStar / OE Bluetooth
• Adjustable OnStar level
• Designed for non-amplified models, or
when bypassing a factory amp *
• Retains balance and fade
• USB-CAB updatable (sold separately)
PONTIAC
SATURN
G5
2007-2009
Aura
G6
2010
Sky
G6 (5th digit of VIN must
be a J, K, or L)
2009
Solstice
2006-2009
axxessinterfaces.com
Connections to be made ................................................2-3
Installing the GMOS-LAN-03 ............................................ 3
Initializing the GMOS-LAN-03 .......................................... 3
Adjusting the GMOS-LAN-03 ............................................ 4

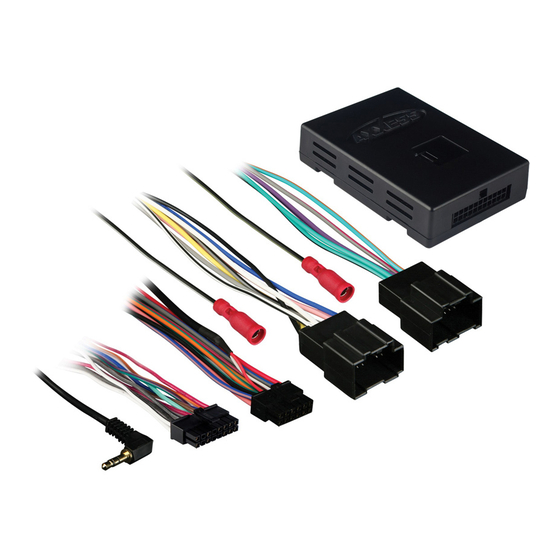

• GMOS-LAN-03 interface • GMOS-LAN-03 harness
• 16-pin harness with stripped leads
• Wire cutter • Crimp tool • Solder gun • Tape
• Connectors (example: butt-connectors, bell caps, etc.)
• Small flat-blade screwdriver
2007-2009
2007-2009
CAUTION!
especially air bag indicator lights must be connected before cycling
the ignition. Also, do not remove the factory radio with the key in the
on position, or while the vehicle is running.
