APPLICATIONS
Volkswagen
Beetle
2012-2015
CC
2009-2017
EOS
2007-2016
Golf
(DDIN models only)
Golf, Golf R
2003-2014
AxxessInterfaces.com
Volkswagen SWC
and Data Interface 2002-2017
INTERFACE FEATURES
• Provides accessory power
• Provides wires for multimedia
• Used in both amplified and
• Retains audio controls on the
• Designed to be compatible with
GTI
Jetta
(DDIN models only)
Jetta, Jetta GLI
2002
Jetta SportWagen
Passat
(Steering Wheel Control)
• Auto detects vehicle type, radio
(10-amp)
connection, and preset controls
• Ability to dual assign steering
radios (park brake, reverse,
wheel control buttons
speed sense)
• Retains memory settings even
after battery disconnection or
non-amplified systems*
interface removal (non volatile
memory)
steering wheel
• Provides illumination output
• Micro-B USB updatable
all major radio brands
* Excluding Fender audio systems
2002-2014
R32
2002
Rabbit
2003-2015
Tiguan
2010-2014
2002-2015
© COPYRIGHT 2019 METRA ELECTRONICS CORPORATION
AXTC-VW1
I N S T A L L A T I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Connections ............................................................2
Programming .........................................................3
Troubleshooting .....................................................4
INTERFACE COMPONENTS

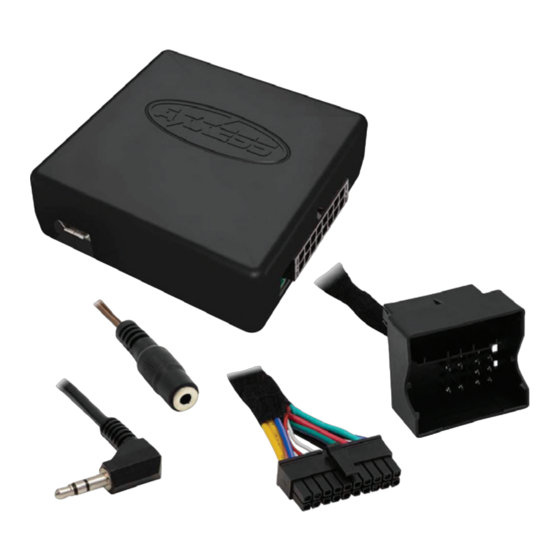

• AXTC-VW1 interface
• AXTC-VW1 harness
• 3.5mm adapter
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
Product Info
2007-2008
2007-2009
2009-2015
REV. 7/30/19 INSTAXTC-VW1
Advertisement
Related Manuals for Axxess AXTC-VW1
Summary of Contents for Axxess AXTC-VW1
- Page 1 • Auto detects vehicle type, radio (10-amp) connection, and preset controls INTERFACE COMPONENTS • Provides wires for multimedia • Ability to dual assign steering • AXTC-VW1 interface radios (park brake, reverse, wheel control buttons • AXTC-VW1 harness speed sense) • Retains memory settings even •...
- Page 2 CONNECTIONS Reset Button Vehicle Connector LED Light Radio Connections Aftermarket Radio Black - Ground (radio’s features may vary) Yellow - Battery power Front Red - Accessory power Rear View AUX-IN Orange - Illumination Rear Blue - Not used Blue/White - Amp turn-on Blue/Pink - VSS/Speed-Sense Green/Purple - Reverse signal Light Green - Parking brake...
- Page 3 Cycle the ignition on. Green LED Cycle the ignition off, then back on. Connect the AXTC-VW1 harness to the AXTC-VW1 interface, and then to the wiring harness in the vehicle. Tap Volume Up Locate the Volume Up button on the the steering wheel. Program the Test all functions of the installation for proper operation.
- Page 4 AXTC-VW1 I N S T A L L A T I O N I N S T R U C T I O N S Having difficulties? We’re here to help. TROUBLESHOOTING Contact our Tech Support line at: 386-257-1187 If the interface fails to function,...
