INTERFACE FEATURES
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Provides NAV outputs (parking brake, reverse, and speed sense)
• Retains chimes
• Pre-wired ASWC-1 harness (ASWC-1 sold separately)
• Retains OnStar / OE Bluetooth
† Excluding Trucks 2018-up
APPLICATIONS
CHEVROLET
Colorado
2017-up
(with IOB radio)
Cruze, Cruze Hatchback
2016-up
(with IOA radio)
* The IOA/IOB code, if applicable, can be found in the "Service Parts Identification" label located:
• Glovebox – Canyon/Colorado/Cruze/Equinox/Silverado/Sierra • Rear compartment floor – Malibu
AxxessInterfaces.com
GM Data Interface
*Visit AxxessInterfaces.com for up-to-date vehicle specific applications.
• Adjustable OnStar level
• Retains the factory backup camera†
• Can be used in both amplified and non-amplified models (excluding Bose)
• Retains balance and fade
• Micro "B" USB updatable
Equinox
2018-up
(with IOB radio)
Malibu
2016-up
(with IOA radio)
Silverado
2016-up
(with IOB radio)
© COPYRIGHT 2018 METRA ELECTRONICS CORPORATION
2016-up*
GMC
Canyon
2017-up
(with IOB radio)
Sierra
2016-up
(with IOB radio)
GMOS-LAN-10
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Connections to be made .......................................2
Installing the GMOS-LAN-10 ..................................3
Programming the GMOS-LAN-10 ..........................3
Adjusting the GMOS-LAN-10 ..................................3
Troubleshooting .....................................................3

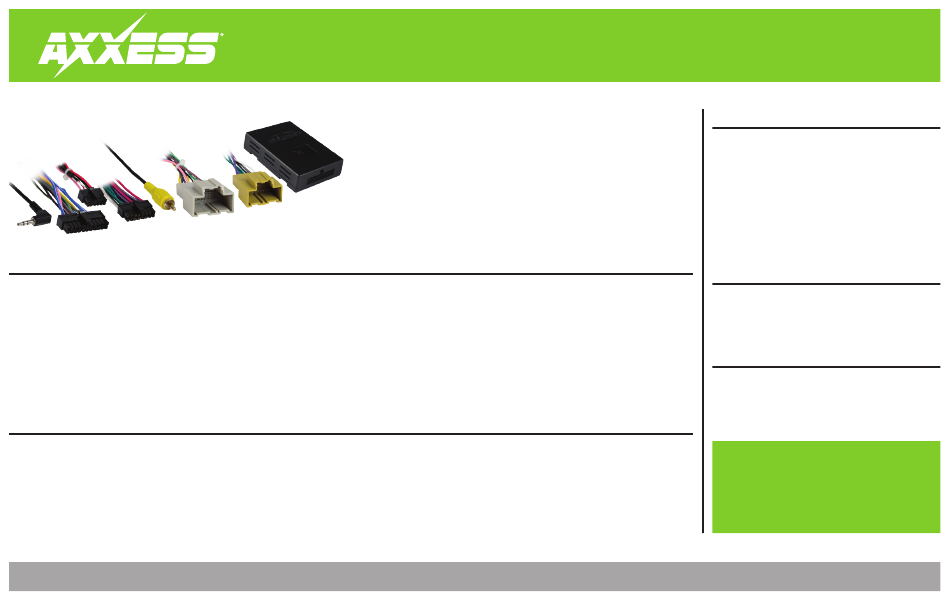

INTERFACE COMPONENTS
• GMOS-LAN-10 interface • GMOS-LAN-10 harness
• 16-pin harness with stripped leads
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip ties
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
REV. 7/3/18 INSTGMOS-LAN-10
Advertisement
Related Manuals for Axxess GMOS-LAN-10
Summary of Contents for Axxess GMOS-LAN-10
- Page 1 INTERFACE FEATURES INTERFACE COMPONENTS • Provides accessory power (12-volt 10-amp) • Adjustable OnStar level • GMOS-LAN-10 interface • GMOS-LAN-10 harness • Retains R.A.P. (retained accessory power) • Retains the factory backup camera† • 16-pin harness with stripped leads • Provides NAV outputs (parking brake, reverse, and speed sense) •...
- Page 2 • Connect the Light Green wire to the parking brake wire. Note: The relay attached to the GMOS-LAN-10 harness is only for audible turn signal clicks. No • Tape off and disregard the following (4) wires, they will not be used in this application.
- Page 3 • Wait 10 seconds, and then with a small screwdriver, turn the potentiometer clockwise to • If an ASWC-1 (sold separately) will be used, do not connect it until the GMOS-LAN-10 is raise the chime level; counterclockwise to lower the chime level.
- Page 4 GMOS-LAN-10 I N S TA L L AT I O N I N S T R U C T I O N S IMPORTANT If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated.
