Axxess GMRC-04 Installation Instructions

GM Class II data bus interface
2000-2005
• Provides accessory (12-volt 10-amp)
• Retains R.A.P. (Retained Accessory Power), if equipped
• Used in non-amplified systems or when replacing amplified systems
• Retains all warning chimes through onboard speaker

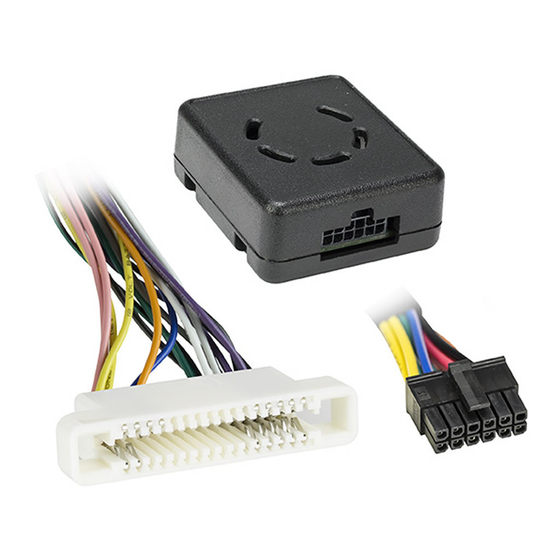

INTERFACE COMPONENTS
• 10-pin to 32-pin GM harness
BUICK OLDSMOBILE
Le Sabre 2000-2005 Aurora
Axxess Integrate
Installation instructions for part GMRC-04
GMRC-04
FEATURES
• GMRC-04 data interface
APPLICATIONS
PONTIAC
2001-2003 Bonneville
TABLE OF CONTENTS
Connections to be made ................................................... 2
Installing the GMRC-04 .................................................... 3
TOOLS REQUIRED
• Cutting tool • Crimping tool • Tape
• Connectors (example: butt-connectors, bell caps, etc.)
CAUTION!
All accessories, switches, climate controls panels, and
especially air bag indicator lights must be connected before cycling
2000-2005
the ignition. Also, do not remove the factory radio with the key in the
on position, or while the vehicle is running.
