Chrysler/Dodge amplified data interface
INTERFACE FEATURES
• Provides accessory (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Used in amplified systems
• Provides NAV outputs (parking brake, reverse, mute
& vehicle speed sense.)
INTERFACE COMPONENTS

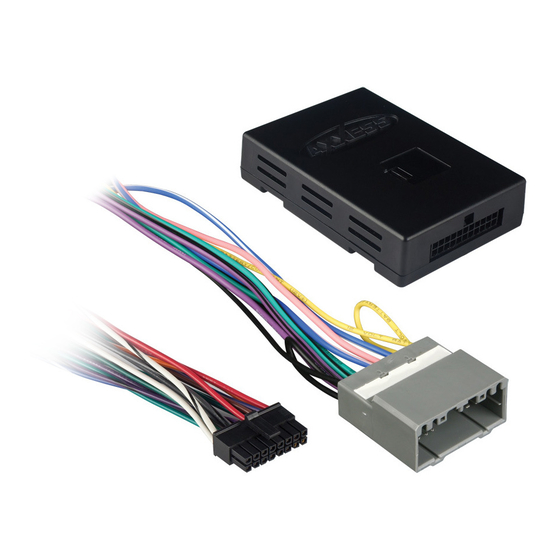

• CHTO-02 interface
• 16-pin harness with stripped leads
• 14-pin harness to 22-pin Chrysler harness with stripped leads
APPLICATIONS
CHRYSLER
DODGE
Pacifica
2004-2008
Ram 1500
Ram 2500/3500 2003-2004
axxessinterface.com
2002-2008
• Includes prewired ASWC-1 harness (ASWC-1 sold separately)
• High level speaker input
• USB updatable
• Retains balance and fade
2002-2004
© COPYRIGHT 2017 METRA ELECTRONICS CORPORATION
CHTO-02
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Connections To Be Made .......................................2
Installing The Chto-02 ...........................................3
Testing The Chto-02 ..............................................3
TOOLS REQUIRED
• Cutting tool • Crimping tool • Tape
• Connectors (example: butt-connectors, bell
caps, etc.)
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
REV. 6/20/17 INSTCHTO-02
