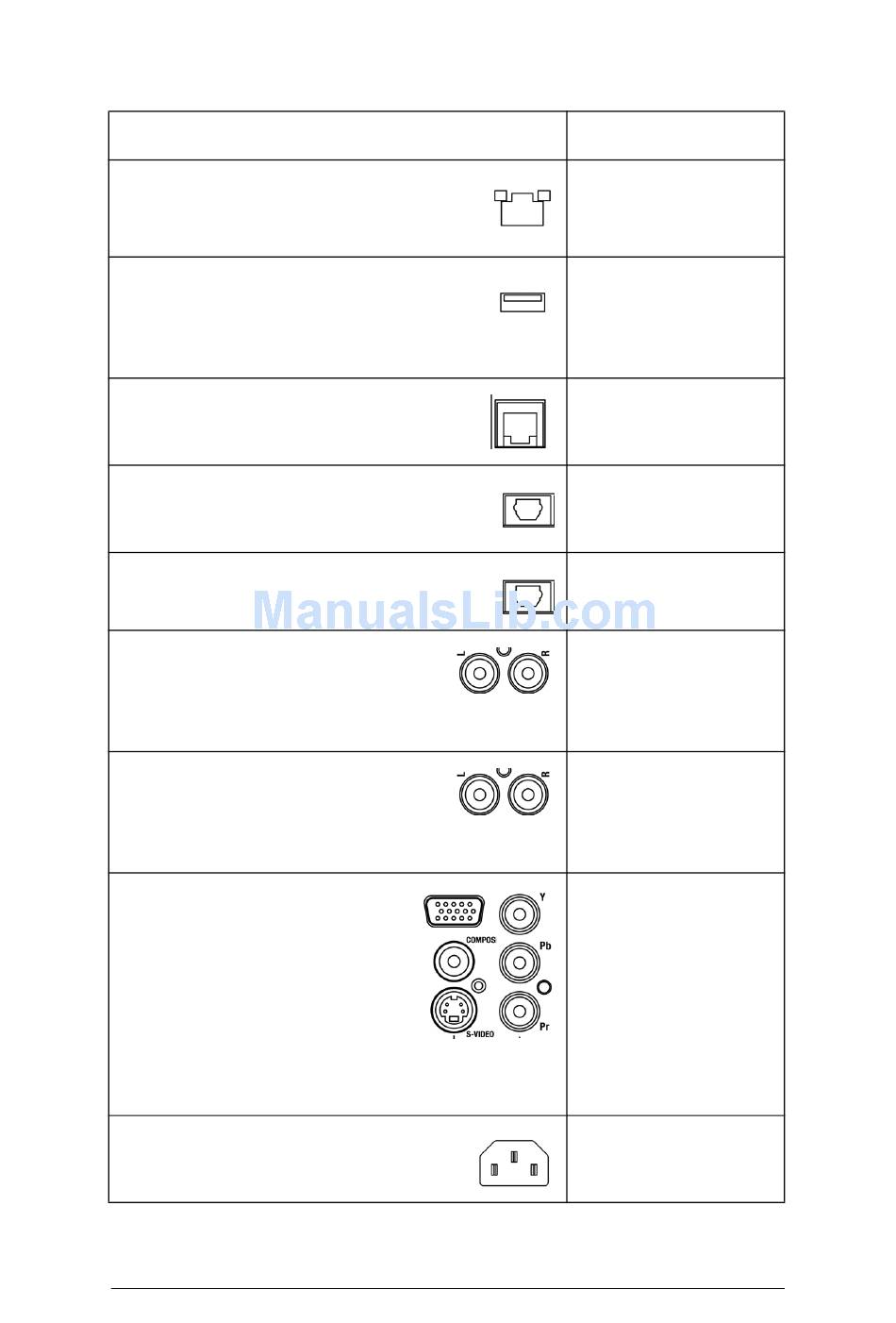

Connection Options and Typical Use
Ethernet — RJ-45 for a 10/100 BaseT
Ethernet connection, using a shielded
Ethernet cable.
USB — For supported USB memory
devices (such as FAT32 formatted
devices). One is on the back and one is
on the front (behind the door).
Modem — RJ-11 port (currently
disabled).
Digital Audio In — Optical connection
(Toslink) for digital audio input.
Digital Audio Out — Optical connection
(Toslink) for digital audio output.
Audio In (Left-Right pairs)
1-3 — RCA jack for stereo channel
input for up to 3 stereo analog
sources.
Audio Out (Left-Right pairs)
1-3 — RCA jack for stereo channel
line output for amplifiers or audio
switches.
Video Out Options —
VGA, Component, Composite or
S-Video port for displaying
navigation menus on a monitor or
TV. Second simultaneous outputs
available only if using combination
of Composite and S-VIDEO. See
See "Video Out Options Ranked by Quality" on
page 19.
Power plug port — For IEC power
cord.
18
Reserved for:
1.
1.
2.
Disabled
In:
Out:
1.
2.
3.
1.
2.
3.
1.
2. (Conditional)
For IEC power cord
