Control 4 HC-300 Installation Manual

Home Controller
HC-300
Installation Guide
Supported Model

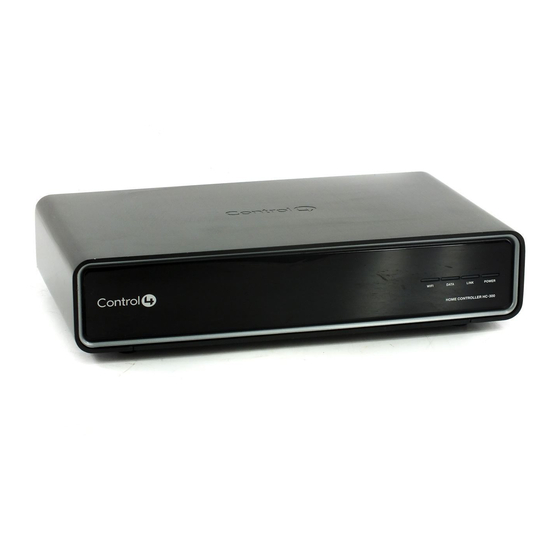

C4-HC300C-E-B Home Controller HC-300
Introduction
The Control4® Home Controller HC-300 provides options for controlling lights, home
theaters, distributed audio systems, distributed video systems, and other devices controlled
using various protocols, such as Infra Red (IR) Serial, Contact, and Relay. It provides
extensive media management services for audio and video sources, such as CDs and DVDs
stored in connected devices. It also allows you to use an external storage device with USB
support for media storage, and it has multi-zone audio capabilities, sending music to rooms
throughout the home.
When the Controller and other system components are installed and configured (using
Control4 Composer software or another Control4 setup program), your users can control
the system using one of the two (2) user interfaces included with this Cotnroller: On-Screen
Navigator or a System Remote Control or any other Control4 user interface device (sold
separately.
What's in the Box
The following are included in your Home Controller box:
• Home Controller HC-300
• Pluggable terminal block connector (1)
• System Remote Control with LCD Navigator display and 4 AAA batteries
• IEC 320 power cord
• IR emitters (6)
• Home Controller HC-300 Installation Guide (this document). Note: You can find this
and other related documents online at http://www.control4.com.
Accessories Available for Purchase
• USB WiFi Adapter (C4-NWA-11G-USB)
Important Safety Instructions
1. Read and keep these instructions.
2. Heed all warnings and follow all instructions for this product in this and other Con-
trol4® documents included with or related to this product.
3. Improper use of this product may result in potential electric shock.
4. Do not use this product near water.
5. Never spill liquid of any kind on this product.
6. Clean this product only with a damp or dry cloth. Do not use liquid cleaners or aerosol
cleaners to clean the product.
7. Install this product according to the manufacturer's instructions.
8. Install this product according to the National Electrical Code ANSI/NFPA 70 and the
prevailing local codes and requirements.
9. This product should be operated with the type of power indicated on the marked label.
If you are not sure of the type of power available, consult your Control4 dealer or local
power company.
10. Slots and openings on a cabinet rack, and components used with this product are pro-
vided for ventilation, reliable operation, and protection from overheating of the product.
These slots and openings must not be blocked or covered.
11. This product should never be placed near or over a radiator or heat register, or in a
built-in installation unless proper ventilation is provided.
12. Never push objects of any kind into this product through cabinet slots because they
may touch dangerous voltage points or short out parts that could result in a fire or
electric shock.
13. Only use the attachments and accessories included with this product or recommended
by Control4.
14. Do not allow anything to rest on the power cord. Do not install or place this product
where people will walk on the cord.
15. Do not use extension cords with any products in a Control4 system.
16. If applicable, unplug this product during lightning storms or when unused for long
periods of time.
17. Do not exceed the maximum wire size (if specified) in this guide.
18. This product must be installed by qualified professionals only.
19. Do not attempt to service this product yourself except as noted in this guide. Opening
or removing covers of internal components may expose you to dangerous voltage
points or other risks.
20. Refer all servicing to qualified service personnel. Servicing is required when the ap-
paratus has been damaged or frayed in any way; for example, a power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into this product, this
product has been exposed to rain or moisture, this product does not operate normally,
or this product has been dropped.
WARNING! To reduce the risk of electrical shock, do not expose this apparatus
to rain or moisture.
AVERTISSEMENT! Pour réduire le risque de choc électrique, n'exposez pas cet
appareil à la pluie ou à l'humidité.
WARNUNG! Um das Risiko des elektrischen Schlages zu verringern, setzen Sie
diesen Apparat nicht Regen oder Feuchtigkeit aus.
WARNING! This CLASS I apparatus must be connected to an AC mains socket
outlet that has a protective earthing connection (i.e., third-prong ground conduc-
tor). DO NOT DEFEAT THE PROTECTIVE EARTHING CONNECTION!
Control4 Supported Devices
Control4 devices that communicate with this Controller include:
• Touch Screens—All types and sizes (such as portable, tabletop, and in-wall, or 10", 7",
5", and mini)
• LCD Keypads
• Wireless 2, 3, & 6 Button Keypads
• Wireless Thermostats
• Speaker Points®
• Audio Matrix Switch
• Multi Channel Amplifiers
• 4-Zone Amplifiers
• Multi Tuners (V1 or V2)
• Wireless Dimmers
• Wireless Switches
• Wireless Outlet Dimmers
• Wireless Outlet Switches
• Third-party devices
For a more information, refer to the Product pages at http://www.control4.com.
Requirements and Specifications
Prior to installing this product, ensure that: Ethernet network wiring is in place.
The Home Controller HC-300C specifications are:
Model Number
Network Support
Media Recognition
Audio Playback Formats
Display
Power Requirements
Dimensions
Weight
Additional Resources
The following resources are available to provide you with additional support.
• HC-300 Wall Template, part # 851-00001, available at: http://www.control4.com/dealer/
support/pid.htm
• Your Control4 Reseller
• Control4 Web Site: http://www.control4.com
• Composer online help

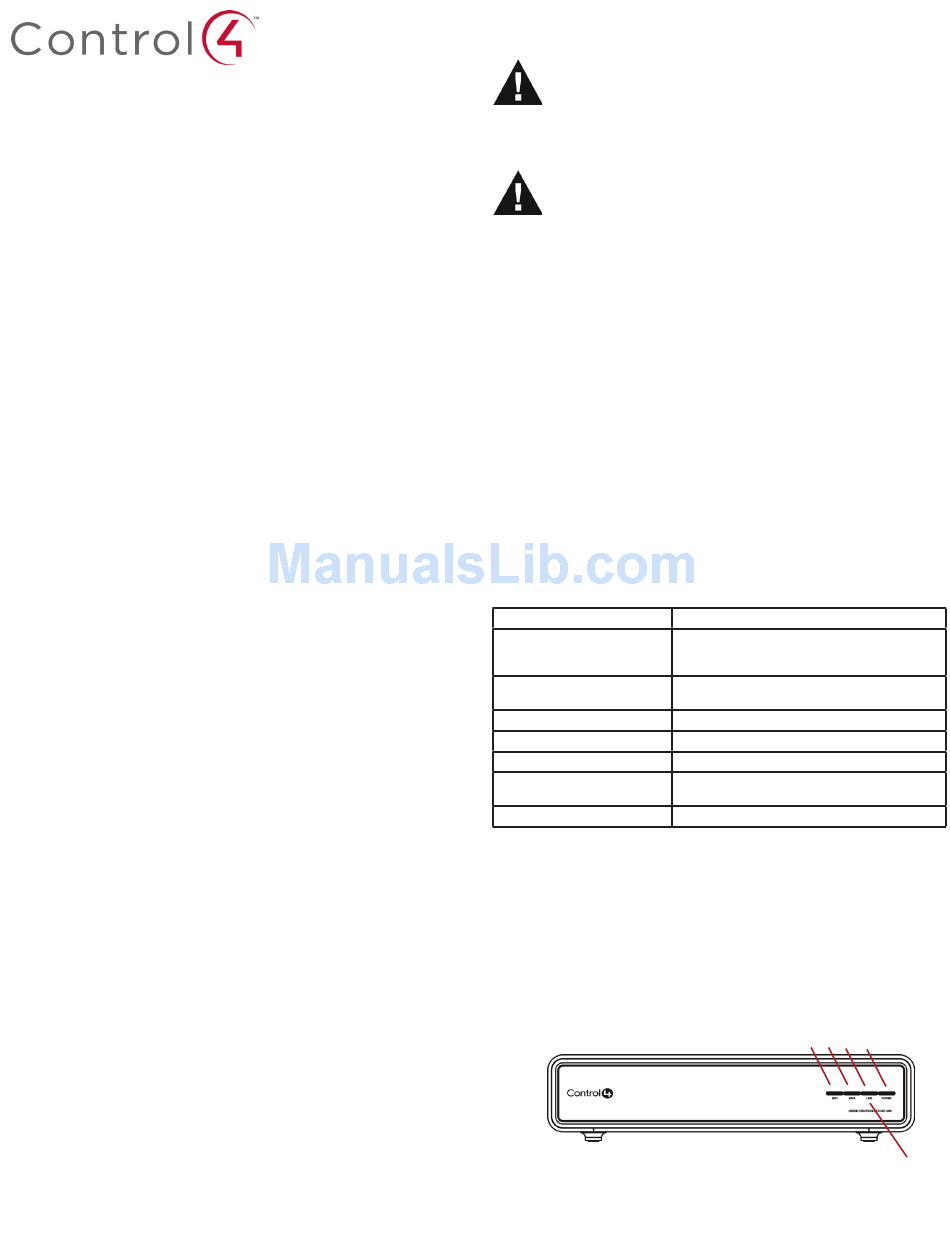

Front View
C4-HC300C-E-B
Ethernet—required
WiFi--optional, requires a WiFi adapter (sold
separately)
Online CD/DVD recognition and media information
service
MP3: 32kbps to 320kbps, CBR and VBR
LED indicators
100-240 VAC, 60/50 Hz, 0.26 A MAX
H x W x D: 2.80" (71 mm) x 11.98" (304 mm) x 7.24"
(184 mm) (with feet and connectors)
4.7 pounds
1 2 3 4
5
