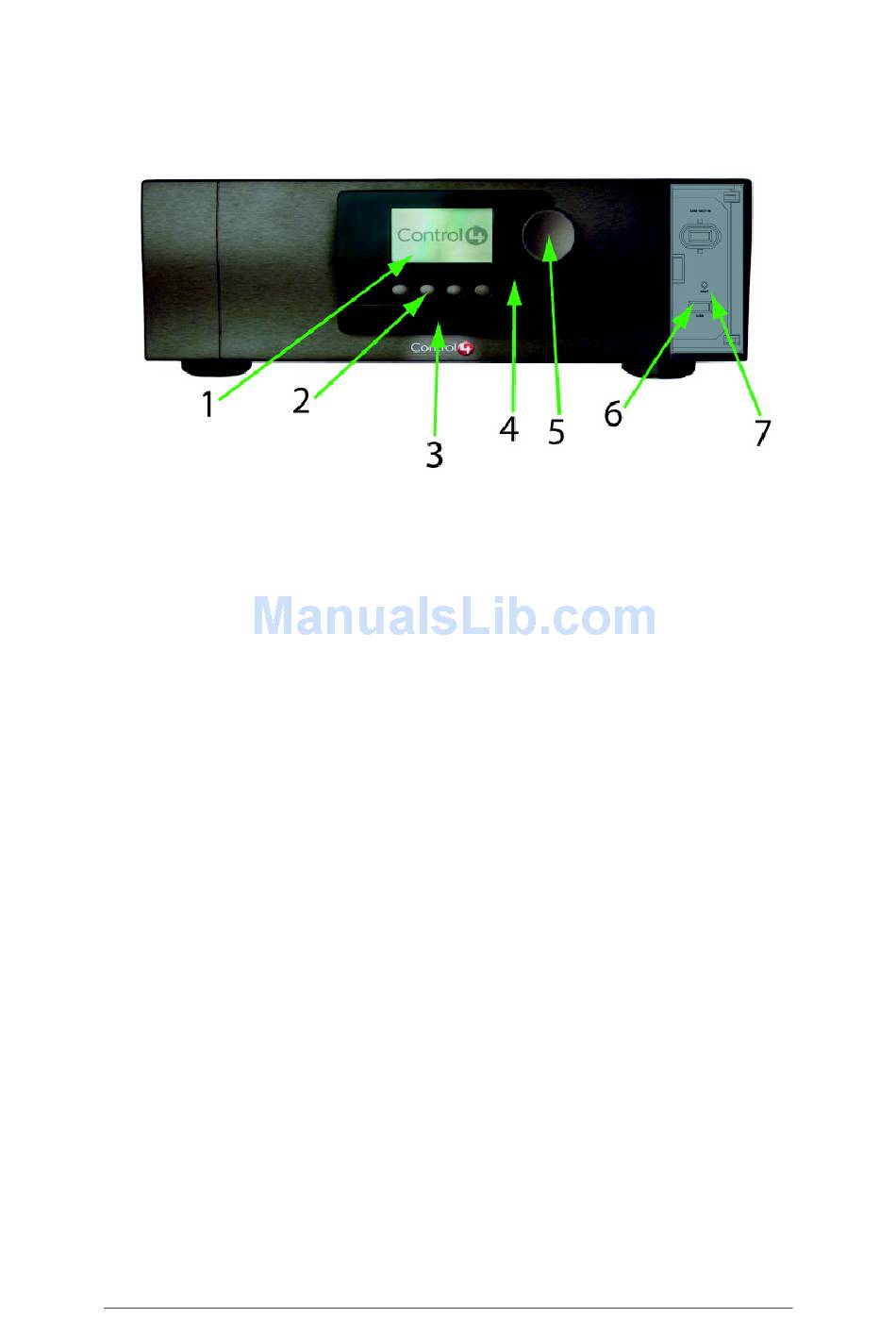

Front View with Door Opened

Front display area
1.
and title sections, media information, receiver status, and system menus.
2. Buttons — For choosing options on the front display.
3. CD drive — For importing CDs into the system.
4. IR window — For capturing IR codes from third party devices from
hand-held devices, such as remote controls using the Driver Wizard
within Composer. The IR filter is designed to capture codes at or
close to 40 kHz.
5. Select Dial — For identifying the network address on the network
and for scrolling through menus and media lists on the front display.
6. USB port — For supported USB memory devices, such as FAT32
formatted devices, for storing MP3 files to utilize on the Control4
system.
7. Reset button — Resides behind the closed door for resetting the
Media Controller by holding the button for 10 seconds.
— For viewing settings, network addresses, playlist
9
