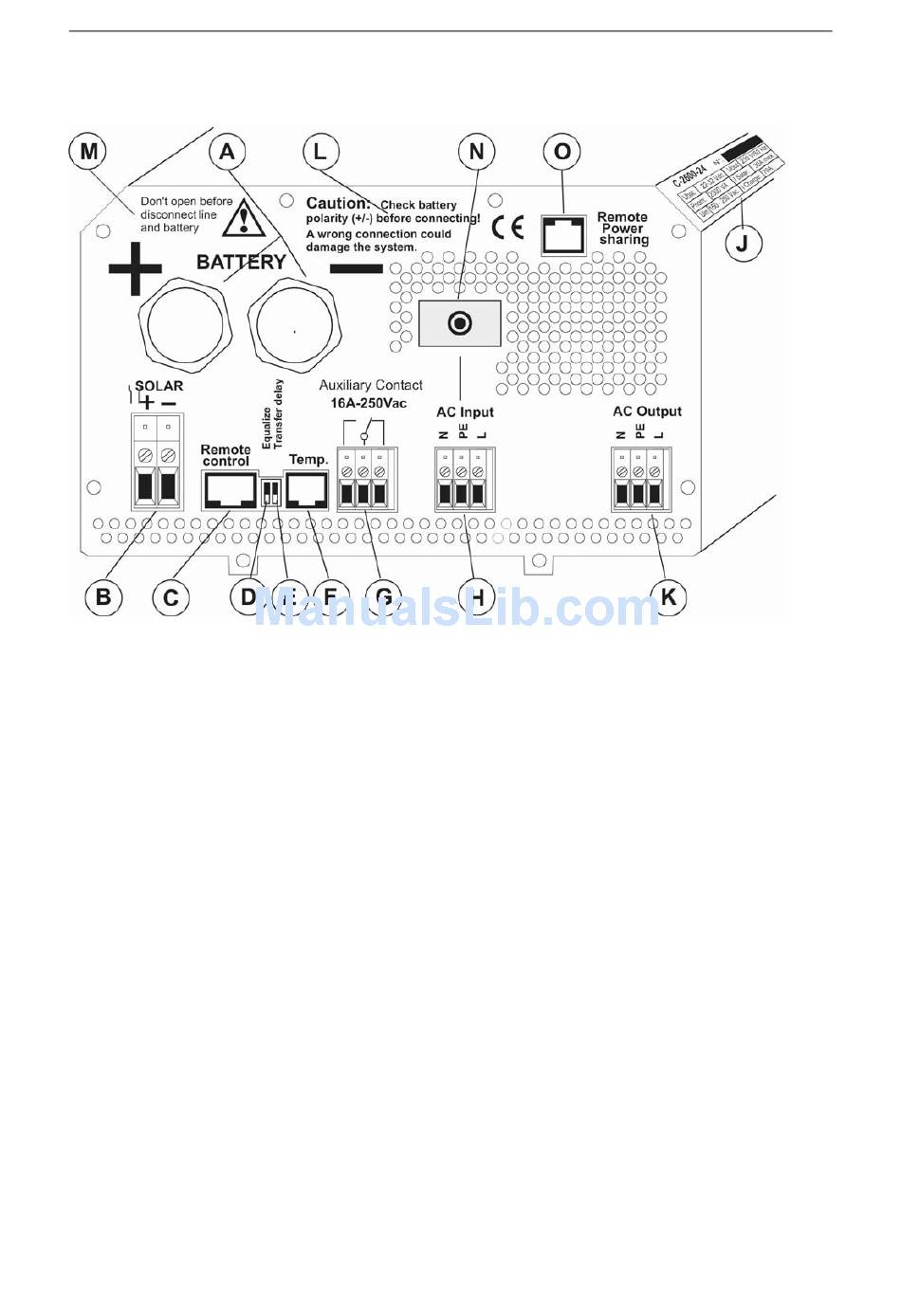

Connection Plan

A Battery +/-
B SOLAR +/-
C Remote contr.
D Equalize
E Transfer delay
F Temp.
G Aux. Contact
H AC Input
J ID Plate
K AC Output
L Caution...
M Don't...
N 16A Protection
O Remote Power Sharing Input current repartition
Battery cable (already installed)
Connection terminal for Solar modules
Connection terminal for Remote Control RCC-01
Slide switch for equalization of the Battery
Slide switch for Transfer Delay
Connection terminal for Temperature sensor CT-35
Connection terminal for Auxiliary Contact
Connection terminal for AC-input. Located directly
above this terminal is the automatic safety cut-out for
this terminal.
Identification plate with Technical data and Serial
number
Connection terminal for AC-output
Caution: Check Polarity (+/-) before connecting the
battery !
Do not open without disconnecting all terminals
16A Protection switch for the Transfer system
