SMART Board In-WallRear Projection Installation Manual page 25

5. Use one of the wrenches to grip the top nut and turn it. This action also rotates the leg.
Continue turning until the leg reaches the appropriate height.
6. Remove the top jam nut using two wrenches and return it to its original leveling leg (or use it to
adjust the other front leg).
7. Lock the adjusted leveling leg into place by rotating the remaining jam nut down until it
reaches the mirror stand base, and then tighten it in place with the wrench.

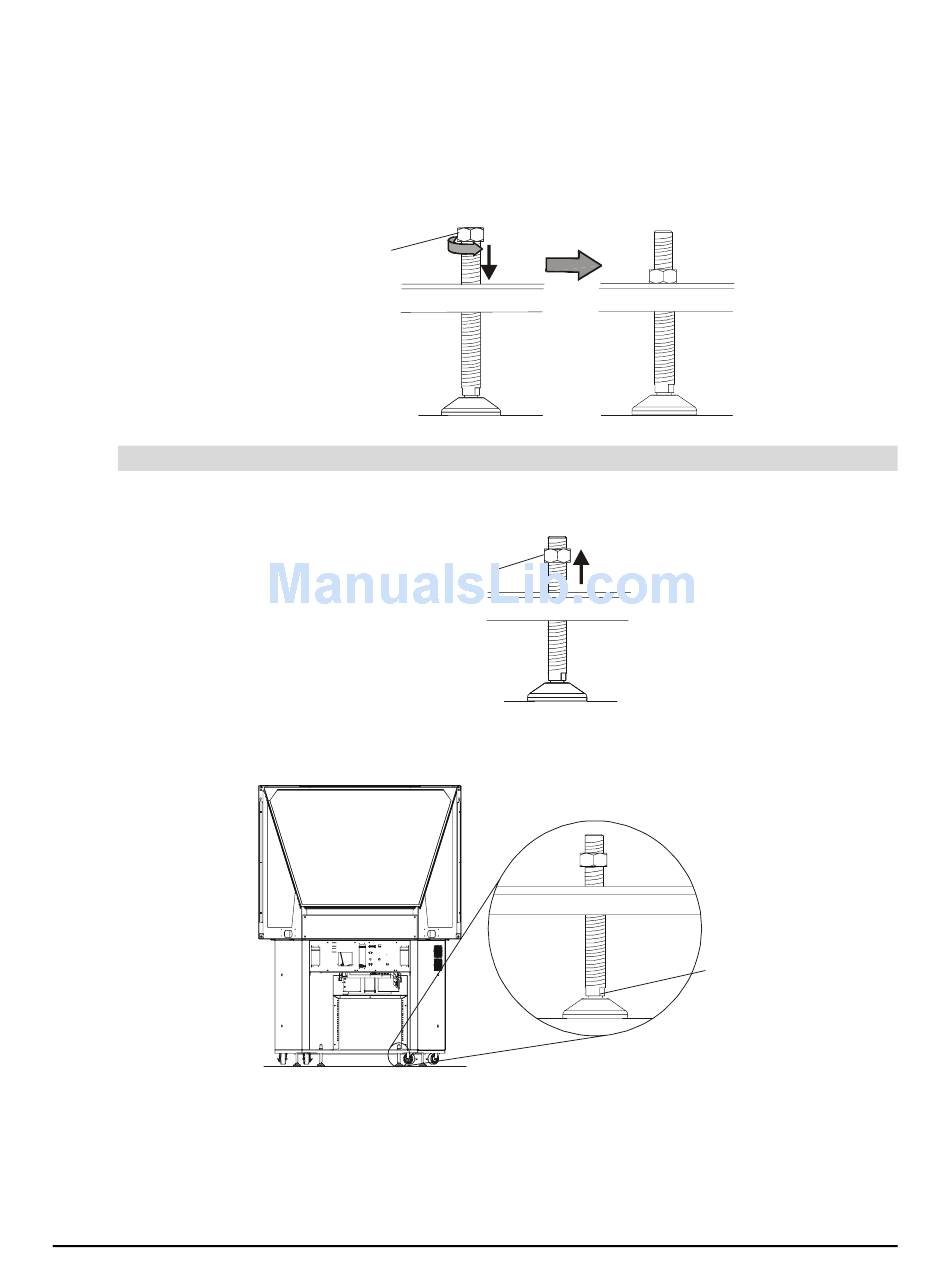

To adjust the rear legs on the 2865 and all legs on the 2965
1. Raise the jam nut on the leveling leg.
2. Using a 1/2" flat or adjustable wrench, grip one leveling leg in the 1/2" (1.3 cm) flat area just
above the foot.
3. Rotate the wrench and leg until the mirror stand reaches the appropriate height.
Jam Nut
Jam Nut
Installing Your Interactive Whiteboard
Grip the leg with the
wrench on this flat area
