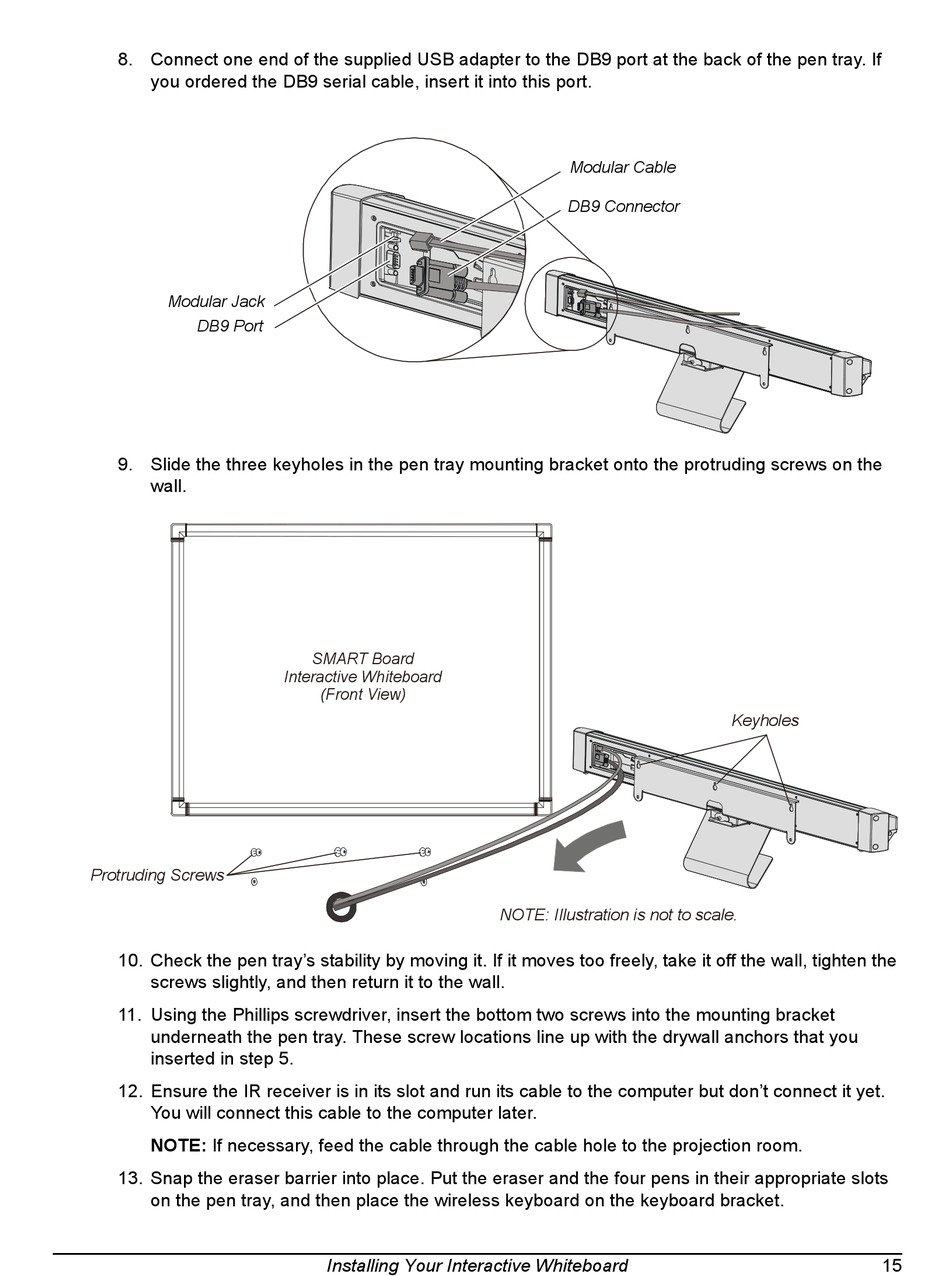

8. Connect one end of the supplied USB adapter to the DB9 port at the back of the pen tray. If
you ordered the DB9 serial cable, insert it into this port.
Modular Jack
DB9 Port
9. Slide the three keyholes in the pen tray mounting bracket onto the protruding screws on the
wall.
Protruding Screws
10. Check the pen tray's stability by moving it. If it moves too freely, take it off the wall, tighten the
screws slightly, and then return it to the wall.
11. Using the Phillips screwdriver, insert the bottom two screws into the mounting bracket
underneath the pen tray. These screw locations line up with the drywall anchors that you
inserted in step 5.
12. Ensure the IR receiver is in its slot and run its cable to the computer but don't connect it yet.
You will connect this cable to the computer later.
NOTE: If necessary, feed the cable through the cable hole to the projection room.
13. Snap the eraser barrier into place. Put the eraser and the four pens in their appropriate slots
on the pen tray, and then place the wireless keyboard on the keyboard bracket.
SMART Board
Interactive Whiteboard
(Front View)
Installing Your Interactive Whiteboard
Modular Cable
MOD8 Cable
DB9 Connector
NOTE: Illustration is not to scale.
Keyholes
15
