Movable Drive Face - Sym Mio 50 Service Manual

To this chapter contents
8. V-Belt Drive System / Kick Starter

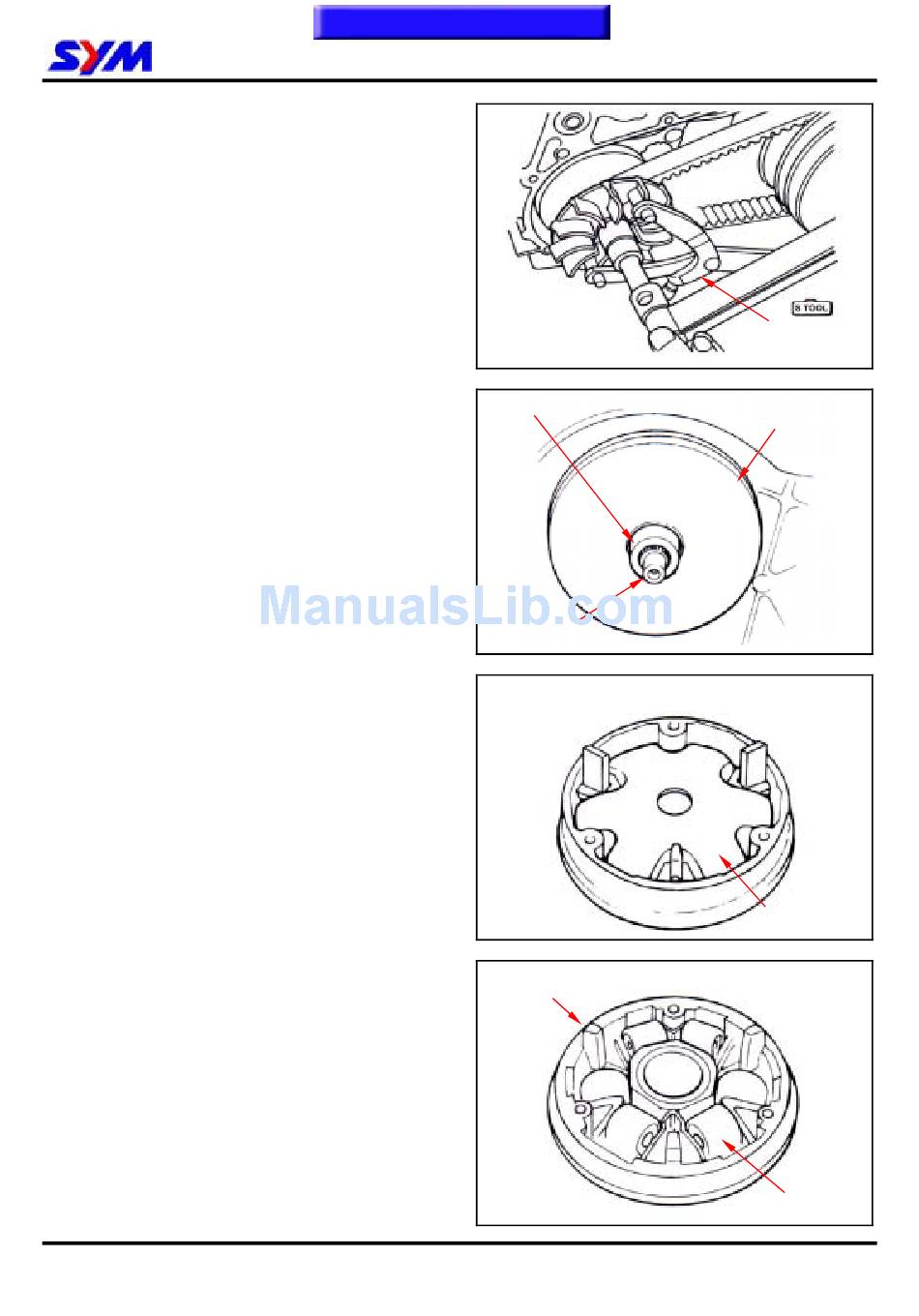

Movable Drive Face

Removal
Remove left crankcase cover.
Hold drive face with universal fixture, and then
remove drive face nut.
Remove drive face.
Special Service Tool:
Universal fixture SYM-2210100
Universal fixture
Take out the drive belt from the drive face.
Drive face boss
Movable drive face
Remove movable drive face set and drive face
boss from crankshaft.
Crankshaft
Remove ramp plate.
Ramp plate
Remove weight rollers from movable drive face.
Movable drive face
Weight roller
8-7
