8.3 ISOLATED PROGRAMMING & MONITORING CONNECTOR
Refer to Table 8-1 for detailed description of the rear panel Isolated Programming & Monitoring
connector. To provide the lowest noise performance, it is recommended to use shielded-twisted
pair wiring.
Refer to Fig.8-1 for description of the Isolated Analog Programming & Monitoring connector.
Isolated programming plug P/N: MC1.5/8-ST-3.81, Phoenix.
+VPROG_ISO
GND_ISO

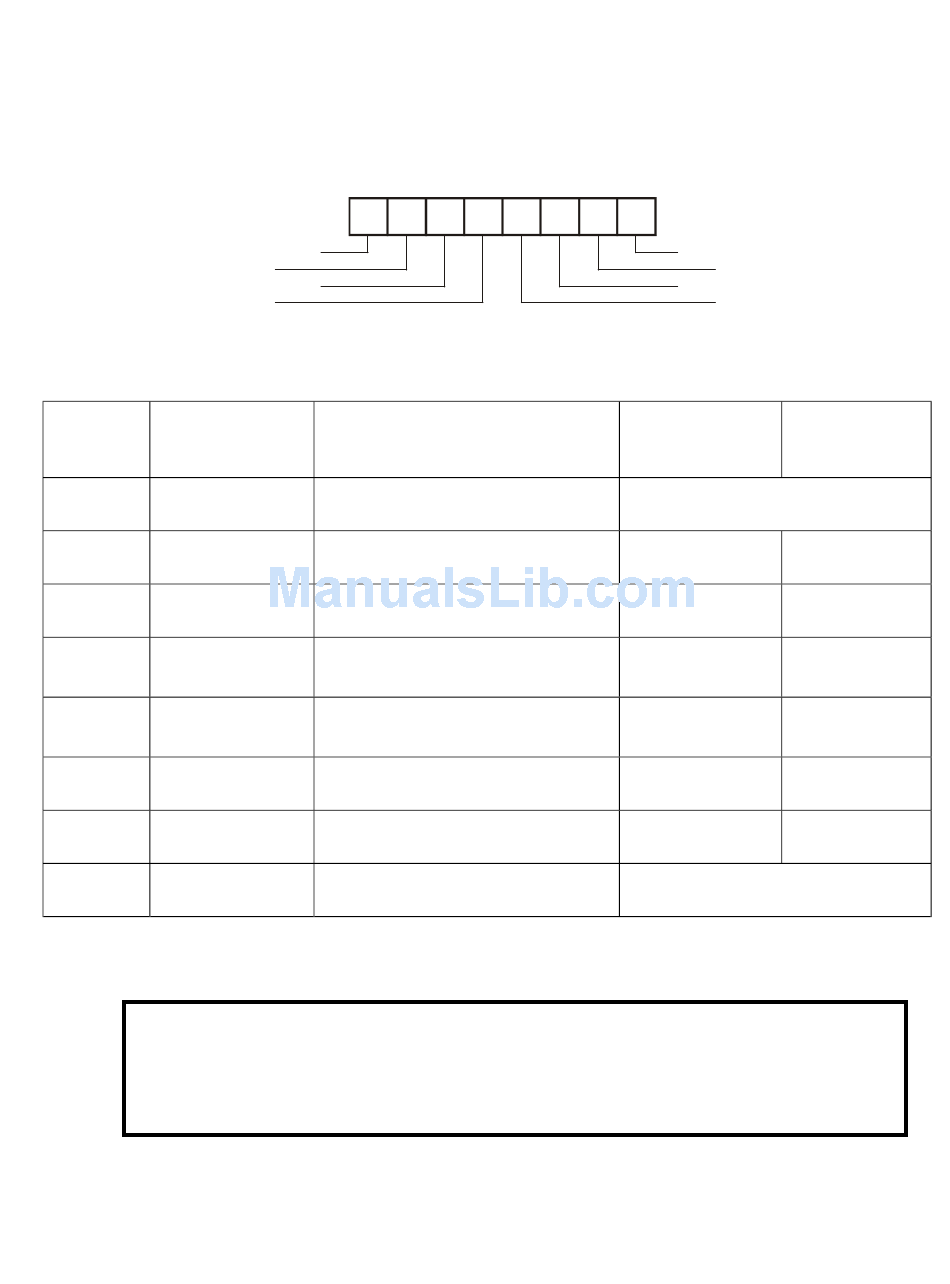

Table 8-1: Detailed description of Isolated programming & Monitoring connector
Terminal Signal name
1 SHLD
2 +VPROG_ISO
3 +IPROG_ISO
4 GND
5 GND
6 +VMON_ISO
7 +IMON_ISO
8 SHLD
When the Isolated Analog Option is installed, do not apply any signals to the
non-isolated VPGM and IPGM (J1-9 and J1-10) pins. All other J1 features may
be used normally. Refer to Section 4.5 for a description of J1 features.
1
2
Shield
+IPROG_ISO
Fig.8-1: Isolated Programming & Monitoring connector
Shield, connected internally to
chassis of the power supply.
Output Voltage programming
input
Output Current programming
input
Ground for programming sig-
nals.
Ground for programming sig-
nals.
Output voltage monitoring out-
put
Output current monitoring out-
put
Shield, connected internally to
chassis of the supply.
3 6
4 5 7
Function
CAUTION
70
83-507-5002 Rev. A
8
Shield
+IMON_ISO
+VMON_ISO
GND_ISO
Range 0-5/0-
10V 20mA IS420
IS510 option
Chassis ground
0-5V/0-10V
0-5V/0-10V
Ground
Ground
0-5V/0-10V
0-5V/0-10V
Chassis ground
Range 4-
option
4-20mA
4-20mA
Ground
Ground
4-20mA
4-20mA
