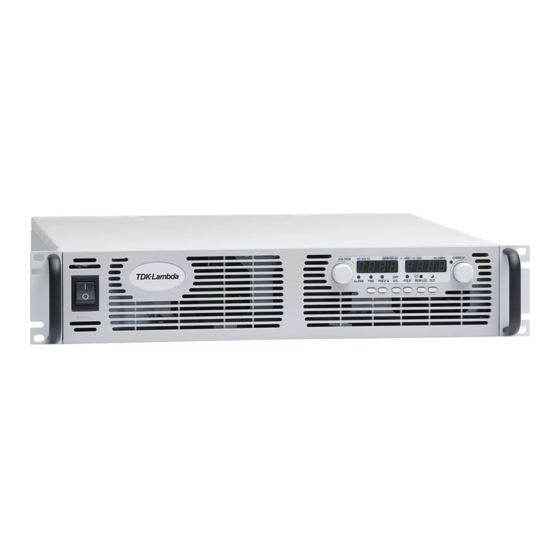

TECHNICAL MANUAL FOR
2U GENESYS
Programmable DC Power Supplies
Document: 83-515-000 Rev A
LAMBDA AMERICAS
405 Essex Road, Neptune, NJ 07753
Tel:
Fax:
Web: www.lambda-emi.com
5kW
TM
(732) 922-9300
(732) 922-9334

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2U GENESYS 5kW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lambda 2U GENESYS 5kW

Summary of Contents for Lambda 2U GENESYS 5kW

  • Page 1 TECHNICAL MANUAL FOR 2U GENESYS Programmable DC Power Supplies Document: 83-515-000 Rev A LAMBDA AMERICAS 405 Essex Road, Neptune, NJ 07753 Tel: (732) 922-9300 Fax: (732) 922-9334 Web: www.lambda-emi.com...
  • Page 3 GENESYS™ Manual Supplement FOR UNITS EQUIPPED WITH “IEMD” OPTION, ALSO REFER TO MANUAL 83-030-200 IEMD.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS WARRANTY……………………………………………………………………………………………. Pg. 1 SAFETY INSTRUCTIONS…………………………………………………………………………….. Pg. 2 GERMAN SAFETY INSTRUCTIONS………………………………………………………………… Pg. 4 Pg. 6 CHAPTER 1 GENERAL INFORMATION…………………………………………………………... 1.1 USER MANUAL CONTENT………………………………………………………………………. Pg. 6 1.2 INTRODUCTION…………………………………………………………………………………… Pg. 6 1.2.1 General description………………………………………………………………………….. Pg. 6 1.2.2 Models covered ……………………………………………………………………………... Pg.
  • Page 5 TABLE OF CONTENTS 3.8.8 Address setting……………….…………………………………………………………….. Pg. 18 3.8.9 Baud rate setting……………………………………………………………………………. Pg. 18 3.9 CONNECTING THE LOAD……………………………………………………………………….. Pg. 19 3.9.1 Load Wiring………………………………………………………………………………….. Pg. 19 3.9.2 Current Carrying Capacity…………………………………………………………………. Pg. 19 3.9.3 Wire termination……………………………………………………………………………. Pg. 20 3.9.4 Noise and Impedance Effects……………………………………………………………... Pg.
  • Page 6 TABLE OF CONTENTS 5.15.1 Basic parallel operation…………………………………………………………………….. Pg. 42 5.15.2 Advanced parallel operation……………………………………………………………….. Pg. 42 5.16 DAISY-CHAIN SHUT-OFF CONNECTION……………………………………………………. Pg. 45 5.17 FRONT PANEL LOCKING………………………………………………………………………. Pg. 45 5.17.1 Unlocked front panel………………………………………………………………………. Pg. 45 5.17.2 Locked front panel…………………………………………………………………………. Pg. 45 CHAPTER 6 REMOTE ANALOG PROGRAMMING……………………………………………… Pg.
  • Page 7 TABLE OF CONTENTS 7.10.6 Status Control Commands………………………………………………………………... Pg. 63 7.11 STATUS, ERROR AND SRQ REGISTERS…………………………………………………… Pg. 63 7.11.1 General Description………………………………………………………………………. Pg. 63 7.11.2 Conditional registers………………………………………………………………………. Pg. 64 7.11.3 Service Request Enabled and Event Registers……………………………………….. Pg. 65 7.12 SERIAL COMMUNICATION TEST SET-UP…………………………………………………. Pg.

  • Page 9: Safety Instructions

    Failure to comply with the safety precautions or warnings in this document violates safety standards of design, manufacture and intended use of this equipment and may impair the built-in protections within. Lambda Americas Inc. shall not be liable for user’s failure to comply with these requirements. INSTALLATION CATEGORY The Genesys power supply series has been evaluated to INSTALLATION CATEGORY II.
  • Page 10 SAFETY INSTRUCTIONS ENVIRONMENTAL CONDITIONS The Genesys power supply series safety approval applies to the following operating conditions: *Indoor use *Ambient temperature: 0°C to 50°C *Maximum relative humidity: 90% (no condensation) *Altitude: up to 3000m *Pollution degree 2 Do not use this product in environments with strong Electromagnetic field, corrosive gas and conductive materials.

  • Page 11: German Safety Instructions

    SICHERHEITS-INSTALLATIONS ANWEISUNGEN Vorsicht Vor Anschluss an das Netz ist die Aufstellanleitung wie nachstehend beschrieben zu beachten. Die nachstehenden Sicherheitsanweisugen mussen während aller Phasen des Betriebes, des Services und der Reparatur dieser Ausrustung beachtet werden. Alle notwendigen Bedingungen die sicherstellen, dass die Einrichtung zu keiner Gefahr im Sinne dieser Norm führen kann, sind in diesem Handbuch beschrieben.
  • Page 12 Ersatzteilaustausch – und Anderungen durfen nur von autorisiertem Lambda EMI SERVICE-PERSONEN durchgefuhrt werden. Fur Reparaturen oder Anderungen ist das Gerat zur Lambda EMI Service-Niederlassung zu retournieren. SICHERHEITS-HINWEISE Umweltbedingungen Die Genesys Stromversorgungs-Serie ist gemassden Sicherheitsabnahmen fur folgende Betriebsbedingungen zugelassen. *Stationare Einrichtungen in Gebauden. *Umgebungstemperaturebereich: 0-50°C.

  • Page 13: Chapter 1 General Information

    CHAPTER 1 GENERAL INFORMATION 1.1 USER MANUAL CONTENT This User’s Manual contains the operating instructions, installation instructions and specifications of the Genesys 5000W power supply series. The instructions refer to the standard power supplies, in- cluding the built-in RS232/RS485 serial communication. For information related to operation with the optional IEEE programming, refer to User Manual for Power Supply IEEE Programming Interface.

  • Page 14: Multiple Output Power System

    ∗ Cooling fan speed control for low noise and extended fan life. ∗ Zero stacking-no ventilation holes at the top and bottom surface of the power supply. ∗ Optional GPIB interface (SCPI compatible). ∗ Optional Isolated Analog programming/monitoring (0-5V or 0-10V, user selectable and 4-20mA). 1.2.4 Multiple output power system The Genesys...

  • Page 15: Cooling And Mechanical Construction

    1.2.9 Cooling and mechanical construction The Genesys series is cooled by internal fans. At the installation, care must be taken to allow free airflow into the power supply via the front panel and out of the power supply via the rear panel. The Genesys power supplies have a compact and lightweight package, which allows easy installation and space saving in the application equipment.

  • Page 16: Chapter 2 Specifications

    CHAPTER 2 SPECIFICATIONS 83-515-000 Rev. A...
  • Page 17 83-515-000 Rev. A...

  • Page 18: Supplemental Characteristics

    *1: Minimum voltage is guaranteed to maximum 0.2% of the rated output voltage. *2: Minimum current is guaranteed to maximum 0.4% of the rated output current. *3: For cases where conformance to various safety standards (UL, IEC etc.) is required, to be described as 190-240Vac (50/60Hz) for 3-Phase 200V models, and 380~415Vac (50/60Hz) for 3- Phase 400V models.
  • Page 19 2.13 GENESYS 5000W POWER SUPPLIES OUTLINE DRAWINGS 83-515-000 Rev. A...

  • Page 20: Chapter 3 Installation

    CHAPTER 3 INSTALLATION 3.1 GENERAL This Chapter contains instructions for initial inspection, preparation for use and repackaging for ship- ment. Connection to PC, setting the communication port and linking Genesys power supplies are described in Chapter 7. WARNING The Genesys series is intended only for installation in Re- stricted Access Location (RAL).

  • Page 21: To Install The Power Supply In A Rack

    3.4.1 To install the Power Supply in a rack: 1. Use the front panel rack-mount brackets to install the power supply in the rack. 2. Use a support bar to provide adequate support for the rear of the power supply. Do not ob- struct the air exhaust at the rear panel of the unit.

  • Page 22: Ac Input Power Connection

    3.7 AC INPUT POWER CONNECTION The power supply shall be connected to the AC source via protective device (circuit breaker, fuses, …etc.) rated 30A max.. CAUTION Connection of this power supply to an AC power source should be made by an electrician or other qualified personnel WARNING There is a potential shock hazard if the power supply chassis (with cover in place) is not connected to an electrical safety...
  • Page 23 2. Unscrew the base of the strain relief from the helix-shaped body. Insert the base through the outside opening in the AC input cover and screw the locknut securely (11-14 Lb-inch.) (1.3 - 1.6Nm) into the base, from the inside. 3.

  • Page 24: Turn-On Checkout Procedure

    3.8 TURN-ON CHECKOUT PROCEDURE 3.8.1 General The following procedure ensures that the power supply is operational and may be used as a basic in- coming inspection check. Refer to Fig. 4-1 and fig. 4-2 for the location of the controls indicated in the procedure.

  • Page 25: Uvl Check

    VOLTAGE display will show the last setting of the OVP level. 4. Rotate the VOLT encoder CCW to adjust the OVP setting to 50% of the unit voltage rating. 5. Wait a few seconds until the VOLT display returns to show the Output Voltage. 6.

  • Page 26: Connecting The Load

    3.9 CONNECTING THE LOAD WARNING Turn Off the AC input power before making or changing any rear panel connection. Ensure that all connections are se- curely tightened before applying power. There is a potential shock hazard when using a power supply with a rated output greater than 40V.

  • Page 27: Wire Termination

    Cross sect. Maximum length in meters to limit Resistivity area voltage drop to 1V or less OHM/Km (mm²) 100A 200A 400A 8.21 12.0 5.09 18.6 3.39 29.4 14.8 1.45 1.95 51.2 25.6 10.2 1.25 1.24 80.0 40.0 16.0 0.795 125.0 62.0 25.2 12.6...

  • Page 28: Making The Load Connections

    WARNING Hazardous voltages may exist at the outputs and the load connections when using a power supply with a rated output greater than 40V. To protect personnel against accidental contact with hazardous voltages, ensure that the load and its connections have no accessible live parts. Ensure that the load wiring insulation rating is greater than or equal to the maximum output voltage of the power supply.
  • Page 29 Wire terminal lug (2 places) M10x25 screw (2 places) Flat washer (2 places) Flat washer (2 places) Spring washer (2 places) Hex Nut (2 places) Screws tightening torque: 290-310 Lb-inch. Fig. 3-6: Load wires connection, 8V to 100V models Shield Fig.
  • Page 30 1. Wires: AWG18 to AWG10. 2. Tightening torque: 4.4-5.3 Lb-inch. (0.5-0.6Nm). Follow the instructions below for connection of the load wires to the power supply: 1. Strip approx. 10mm at the end of each of the wires. 2. Loosen the connector terminal screws. 3.

  • Page 31: Connecting Single Loads, Local Sensing (Default)

    3.9.7 Connecting single loads, local sensing (default). Fig.3-11 shows recommended load and sensing connections for a single load. The local sense lines shown are default connections at the rear panel J2 sense connector. Local sensing is suitable for ap- plications where load regulation is less critical. Load Power Supply...

  • Page 32: Multiple Loads Connection With Distribution Terminals

    Load lines, twisted pair, shortest length possible. Load#1 Power Supply Load#2 Rem.sense Local sense Load#3 Local sense Rem.sense Fig.3-13: Multiple loads connection, radial distribution, local sense 3.9.10 Multiple load connection with distribution terminals If remotely located output distribution terminals are used, the power supply output terminals should be connected to the distribution terminals by pair of twisted and/or shielded wires.

  • Page 33: Local And Remote Sensing

    WARNING OUTPUT TERMINAL GROUNDING There is a potential shock hazard at the RS232/RS485 and the IEEE ports when using power supplies with rated or combined voltage greater than 400V with the Positive Output of the power supplies grounded. Do not connect the Positive out- put to ground when using the RS232/RS485 or IEEE under the above conditions.

  • Page 34: Remote Sensing

    3.10.3 Remote sensing WARNING There is a potential shock hazard at the sense point when using a power supply with a rated Output Voltage greater than 40V. Ensure that the connections at the load end are shielded to prevent accidental contact with hazardous voltages. CAUTION When using shielded sense wires, ground the shield in one place only.

  • Page 35: Chapter 4 Front And Rear Panel Controls And Connectors

    CHAPTER 4 FRONT AND REAR PANEL CONTROLS AND CONNECTORS 4.1 INTRODUCTION The Genesys Power Supply series has a full set of controls, indicators and connectors that allow the user to easily setup and operate the unit. Before starting to operate the unit, please read the following Sections for explanation of the functions of the controls and connectors terminals.
  • Page 36 Table 4-1: Front Panel Controls and Indicators Number Control/Indicator Description Section 4 digit, 7 segment LED display. Normally displays the output CURRENT display Current. When the PREV button is pressed, the display indicates the programmed setting of Output Current. CURRENT indicator Green LED, lights for Constant-Current mode operation High resolution rotary encoder for adjusting the Output 5.2.2...

  • Page 37: Rear Panel Connections And Controls

    Table 4-1: Front Panel Controls and Indicators (continued) Number Control/Indicator Description Section Green LED, lights when PREV button is pressed PREV indicator Voltage and Current Fine/Coarse adjustment control. Operates as a toggle switch. In Fine mode, the VOLTAGE and CURRENT encoders operate with high FINE button resolution and in Coarse mode with lower resolution (approx.

  • Page 38: Rear Panel Sw1 Setup Switch

    Table 4-2: Rear panel Connections and Controls (continued) Number Item Description Section RJ-45 type connector, used for daisy-chaining power supplies to Remote Out form a serial communication bus. connector Connector for remote analog interface. Includes Output Voltage J1 Analog and Current programming and monitoring signals, Shut-off control programming (electrical signal), Enable/Disable control (dry-contact), Power and monitoring...

  • Page 39: Sw1 Positions Functions

    4.4.1 SW1 position function Refer to Table 4-3 for description of SW1 position functions. The factory default setting is Down for all positions. Table 4-3: SW1 Positions Functions Position Function DOWN (Factory default) Output Voltage Output Voltage Output Voltage SW1-1 Programmed by Programmed by remote analog Remote Analog Programming...

  • Page 40: Rear Panel J1 Programming And Monitoring Connector

    4.5 REAR PANEL J1 PROGRAMMING AND MONITORING CONNECTOR The J1 Programming and Monitoring connector is a DB25 subminiature connector located on the power supply rear panel. Refer to Table 4-4 for description of the connector functions. The power supply default configuration is Local operation, which does not require connections to J1. For remote operation using J1 signals, use the plug provided with power supply (or equivalent type).
  • Page 41 Signal contact name Function Reference J1-1 ENA_IN Enable/Disable the power supply output by dry-contact Sec. 5.8 (short/open) with ENA_OUT. J1-2 IF_COM Isolated Interface Common. Return for the SO control, Sec.5.7, 5.10 J1-3 PS_OK signal and for the optional IEEE interface. J1-4i7 No Connection J1-8...

  • Page 42: Chapter 5 Local Operation

    CHAPTER 5 LOCAL OPERATION 5.1 INTRODUCTION This Chapter describes the operating modes that are not involved in programming and monitoring the power supply via its serial communication port (RS232/RS485) or by remote analog signals. Ensure that the REM/LOC LED on the front panel is Off, indicating Local mode. If the REM/LOC LED is On, press the front panel REM/LOC button to change the operating mode to Local.

  • Page 43: Automatic Crossover

    -Enabled output, power supply in Constant Voltage mode: Press the PREV button and then ro- tate the CURRENT encoder knob. The CURRENT meter will show the programmed Output Current for 5 seconds after the adjustment has been completed, and then will return to show the actual load current.

  • Page 44: Under Voltage Limit

    5.4 UNDER VOLTAGE LIMIT (UVL) The UVL prevents adjustment of the Output Voltage below a certain limit. The combination of UVL and OVP functions, allow the user to create a protection window for sensitive load circuitry. 5.4.1 Setting the UVL level Setting the UVL can be made when the power supply output is Enabled (On) or Disabled (Off).

  • Page 45: Cv/Cc Signal

    useful for connecting power supplies in a “Daisy-chain” (refer to Section 5.16). The SO control can also be used to reset the OVP and Fold Protection (refer to Section 5.3 and 5.5 for details). When the unit is shut-off by a J1 signal, the VOLTAGE display will show “SO” to indicate the unit state.

  • Page 46: Safe Start And Auto-Restart Modes

    *OTP *Enable/Disable open (Power supply is disabled) *OVP *SO (Rear panel Shut-Off, Power Supply is shut off) *Foldback *IEEE failure (With optional IEEE interface) *AC fail *Output Off 5.11 SAFE-START AND AUTO-RESTART MODES When turning On the power supply AC On/Off, it can start to its last setting of Output Voltage and Current with the output Enabled (Auto-restart mode) or start with the output Disabled (Safe-start mode).

  • Page 47: Series Connection For Increased Output Voltage

    CAUTION Do not connected power supplies from different manufacturers in series or in parallel. 5.14.1 Series connection for increased output voltage In this mode, two units are connected so that their outputs are summed. Set the Current of each power supply to the maximum that the load can handle without damage. It is recommended that di- odes be connected in parallel with each unit output to prevent reverse voltage during start up se- quence or in case one unit shuts down.

  • Page 48: Series Connection For Positive And Negative Output Voltage

    3. Programming by external resistor: Programming by external resistor is possible. Refer to Section 6-5 for details. 4. Programming via the Serial The communication port is referenced to the IF_COM Communication port (RS232/RS485): which is isolated from the power supply output potential. Therefore power supplies connected in series can be daisy-chained using the Remote-In and Remote-Out con- nectors.

  • Page 49: Parallel Operation

    5.15 PARALLEL OPERATION Up to four units of the same VOLTAGE and CURRENT rating can be connected in parallel to provide up to four times the Output Current capability. One of the units operates as a Master and the remain- ing units are Slaves.

  • Page 50: Advanced Parallel Operation

    6. Connection to the load In parallel operation, power supplies can be connected in local or remote sensing. Refer to Fig. 5- 4 and 5-5 for typical connections of parallel power supplies. The figures show connection of two units, however the same connection method applies for up to 4 units. 5.15.2 Advanced parallel operation In this method, multiple supplies can be configured to parallel operation as a single power supply.
  • Page 51 *AST On *OUT On *Foldback protection Off c) The Master and Slave modes are stored in the power supply EEPROM when the AC power is turned off. The system will return to the Master/Slave mode upon re-application of AC power. 5.

  • Page 52: Front Panel Locking

    Twisted pair To J1-10 As short as possible SLAVE#2 MASTER POWER SUPPLY Twisted POWER SUPPLY pair J1-25 J1-12 LOAD IPGM IPGM_RTN J1-8 J1-12 J1-10 J1-23 SLAVE#1 To J1-23 SLAVE#2 POWER SUPPLY POWER SUPPLY 5.16 DAISY-CHAIN CONNECTION possible Fig.5-5: Parallel operation with Remote sensing configure multiple power supply system to shut down all the units when a fault condition occurs in one of the units.

  • Page 53: Chapter 6 Remote Analog Programming

    CHAPTER 6 REMOTE ANALOG PROGRAMMING 6.1 INTRODUCTION The rear panel connector J1 allows the user to program the power supply Output Voltage and Current with an analog device. J1 also provides monitoring signals for Output Voltage and Output Current. The programming range and monitoring signals range can be selected between 0-5V or 0-10V using the setup switch SW1.
  • Page 54 REMOTE VOLTAGE PROGRAMMING OF OUTPUT VOLTAGE AND CURRENT LIMIT CAUTION To maintain the power supply isolation and to prevent ground loops, use an isolated programming source when operating the power supply via remote analog programming at the J1 connector. Perform the following procedure to set the power supply to Remote Voltage programming: 1.
  • Page 55 6.5 RESISITIVE PROGRAMMING OF OUTPUT VOLTAGE AND CURRENT LIMIT For resistive programming, internal current sources, for Output Voltage and/or Output Current control, supply 1mA current through external programming resistors connected between J1-9 & 22 and J1-10 & 23. The voltage across the programming resistors is used as a programming voltage for the power supply.

  • Page 56: Remote Monitoring Of Output Voltage And Current

    6.6 REMOTE MONITORING OF OUTPUT VOLTAGE AND CURRENT The J1 connector, located on the rear panel provides analog signals for monitoring the Output Voltage and Output Current. Selection of the voltage range between 0-5V or 0-10V is made by setup switch SW1-4.

  • Page 57: Chapter 7 Rs232 & Rs485 Remote Control

    CHAPTER 7 RS232 & RS485 REMOTE CONTROL 7.1 INTRODUCTION This Chapter describes the operation of the Genesys 5000W power supplies via the serial commu- nication port. Details of the initial set-up, operation via RS232 or RS485, the command set and the communication protocol are described in this Chapter.

  • Page 58: Front Panel In Remote Mode

    2. There are two Remote modes: 1. Remote: In this mode, return to local can be made by the front panel REM/LOC or via serial port command RMT 0. Set the unit into Remote mode via serial port RMT 1 command. 2.

  • Page 59: Md Mode Option (Factory Installed)

    7.4 MD MODE OPTION (Factory Installed) 7.4.1 MD Mode Description The GEN supply is capable of operating in a multi drop environment - more than 1 supply conducting serial communications on a single serial bus. A maximum of 31 GEN supplies can operate in this sin- gle bus.

  • Page 60: Connecting Power Supplies To Rs232 Or Rs485 Bus

    7.5 CONNECTING POWER SUPPLIES TO RS232 OR RS485 BUS 7.5.1 Single power supply 1. Select the desired interface RS232 or RS485 using rear panel setup switch SW1-6 (Section 4-4). -RS232: DOWN position -RS485: UP position 2. Connect rear panel IN connector to the controller RS232 or RS485 port using a suitable shielded cable.

  • Page 61: Multi Power Supply Connection To Rs232 Or Rs485 Bus

    7.5.2 Multi power supply connection to RS232 or RS485 bus Up to 31 units can be connected (daisy chained) to the RS232 or RS485 bus. The first unit connects to the controller via RS232 or RS485 and the other units are connected via the RS485 bus. 1.

  • Page 62: Error Message

    7.6.7 Error message If an error is detected in command or query, the power supply will respond with an error message. Re- fer to Section 7.7 for details. 7.6.8 Backspace The backspace character (ASCII 8) clears the last character sent to the power supply. 7.7 ERROR MESSAGES The power supply will return error messages for illegal commands and illegal programming parame- ters.

  • Page 63: Initialization Control Commands

    7.8.3 Initialization Control Commands Command Description ADR is followed by address, which can be 0 to 30 and is used to access the ADR n power supply. Clear status. Sets FEVE and SEVE registers to zero (refer to Section 7-11). Reset command.
  • Page 64 Command Description Display Voltage and Current data. Data will be returned as a string of ASCII char- acters. A comma will separate the different fields. The fields, in order, are: Meas- DVC? ured Voltage, Programmed Voltage, Measured Current, Programmed Current, Over Voltage Set Point and Under Voltage Set Point.

  • Page 65: Global Output Commands

    Returns the power supply operation mode. When the power supply is On (OUT 1) MODE? it will return “CV” or “CC”. When the power supply is OFF (OUT 0 or fault shut- down) it will return “OFF”. Returns the Master/Slave setting. Master: n= 1, 2, 3, or 4 Slave: n=0 NOTES: 1.

  • Page 66: Single Byte Commands

    7.10 SINGLE BYTE COMMANDS 7.10.1 General Single byte commands are commands in which all the necessary data for the supply to act upon is contained in a single byte. Single byte commands will be executed immediately by the supply. If the command requires data to be sent to the HOST PC or IEEE Board (see sections 7.10.4 and 7.10.3.1) that response will be transmitted immediately with no delay due to any software overhead.

  • Page 67: Global Commands With Response

    7.10.3 Global commands with response 7.10.3.1 Disconnect from communications Command the supply to end all data transmissions to the HOST PC/IEEE Board and cease its role as the active addressed supply. The HOST PC/IEEE Board will be required to re- send the ‘ADR nn’...

  • Page 68: Addressed Commands Without Response

    7.10.4.4 Test if MD Mode is Installed Send AA Hex followed by the address of the supply in binary. If not installed, the supply will return a ‘1’. If installed, the supply will return a ‘0’. 7.10.5 Addressed commands without response 7.10.5.1 Acknowledge SRQ Send (0xE0 + Address) (1 byte binary - send 2 times sequentially).
  • Page 69 110x xxxx Retransmit last response from a Retransmit last Last message command. x xxxx is the address of message the supply in binary. 111x xxxx Acknowledge SRQ. If retransmission Acknowledge None of SRQ is enabled, it will remain en- abled for the next SRQ. X xxxx is the address of the supply in binary.

  • Page 70: Status Control Commands

    Table 7-7: OVP programming range Table 7-8: UVL programming range Model Minimum Maximum Model Minimum Maximum Rated Output Voltage (V) Rated Output Voltage (V) 10.0 7.60 12.0 9.50 19.0 14.3 24.0 19.0 36.0 28.5 44.0 38.0 66.0 57.0 88.0 76.0 110.0 95.0 165.0...

  • Page 71: Status Registers

    Command Error (”Cnn”) One response for every command or query received. Execution Error (”Enn”) Response messages Query Response (”message”) Command Response (”OK”) Status Registers Serial Condition Enable Event Constant Voltage Constant Current “Inn” and CR No Fault NFLT NFLT Fault Auto Start Messages Fold Enabled...

  • Page 72: Service Request Enabled And Event Registers

    7.11.2 Conditional Registers (continued) Table 7-9: Fault Condition Register Fault name Fault symbol Bit Set condition Bit Reset condition 0 (LSB) Spare bit SPARE Fixed to zero Fixed to zero AC Fail AC fail has occurred. The AC input returns to normal. Over OTP shutdown has The power supply cools down.
  • Page 73 Refer to Tables 7-11 to 7-14 for details of the Enable and Event registers. 1. Fault Enable Register The Fault Enable Register is set to the enable faults SRQs. Table 7-10: Fault Enable Register Enable Fault symbol Bit Set condition Bit reset condition bit name 0 (LSB)
  • Page 74 3. Status Enable Register The Status Enable Register is set by the user to Enable SRQs for changes in power supply status. Table 7-13: Status Enable Register Status name Status symbol Bit Set condition Bit reset condition 0 (LSB) User command: “SENA nn” Constant Voltage is received, where nn is User command:...

  • Page 75: Serial Communication Test Set-Up

    7.12 SERIAL COMMUNICATION TEST SET-UP Use the following instructions as basic set-up to test the serial communication operation. 1.Equipment : PC with Windows Hyper Terminal, software installed, Genesys Power supply, RS232 cable. 2. PC set-up : 2.1 Open Hyper Terminal……………………. New Connection. 2.2 Enter a name 2.3 Connect to…………………………………...

  • Page 76: Introduction

    CHAPTER 8 ISOLATED ANALOG PROGRAMMING OPTION 8.1 INTRODUCTION Isolated Analog Programming is an internal Option Card for analog programming of the Genesys power supply series. The option is factory installed and cannot be obtained with a GPIB (IEEE-488) Interface. Output Voltage and Output Current can be programmed and readback through optically iso- lated signals which are isolated from all other ground references in the power supply.

  • Page 77: Isolated Programming & Monitoring Connector

    8.3 ISOLATED PROGRAMMING & MONITORING CONNECTOR Refer to Table 8-1 for detailed description of the rear panel Isolated Programming & Monitoring connector. To provide the lowest noise performance, it is recommended to use shielded-twisted pair wiring. Refer to Fig.8-1 for description of the Isolated Analog Programming & Monitoring connector. Isolated programming plug P/N: MC1.5/8-ST-3.81, Phoenix.

  • Page 78: Setup And Operating Instructions

    8.4 SETUP AND OPERATING INSTRUCTIONS CAUTION To prevent damage to the unit, do not program the output voltage and current to higher than the power supply rating. 8.4.1 Setting up the power supply for 0-5V/0-10V Isolated Programming and Monitoring Perform the following procedure to configure the power supply: 1.

  • Page 79: Introduction

    CHAPTER 9 MAINTENANCE 9.1 INTRODUCTION This Chapter provides information about maintenance, calibration and troubleshooting. 9.2 UNITS UNDER WARRANTY Units requiring repair during the warranty period should be returned to a Lambda authorized service facility. Refer to the addresses listing on the back cover of this User’s Manual. Unauthorized repairs performed by other than the authorized service facilities may void the warranty.

  • Page 80: Fuse Rating

    SYMPTOM CHECK ACTION Output Voltage will not adjust. Is the unit in constant current Check Output Current 5.2.1 Front panel CC LED is On. mode? setting and load current. 5.2.2 Output Voltage will not adjust Check if output voltage is Set OVP or UVL so they will Front panel CV Led is On.
