Split/Splitless Injector (S/SL)
S/SL Overview
The S/SL injector, shown in Figure 5-1, is optimized for either split or splitless
applications to ensure effective sample transfer into the column, minimizing
heavy component discrimination.
94

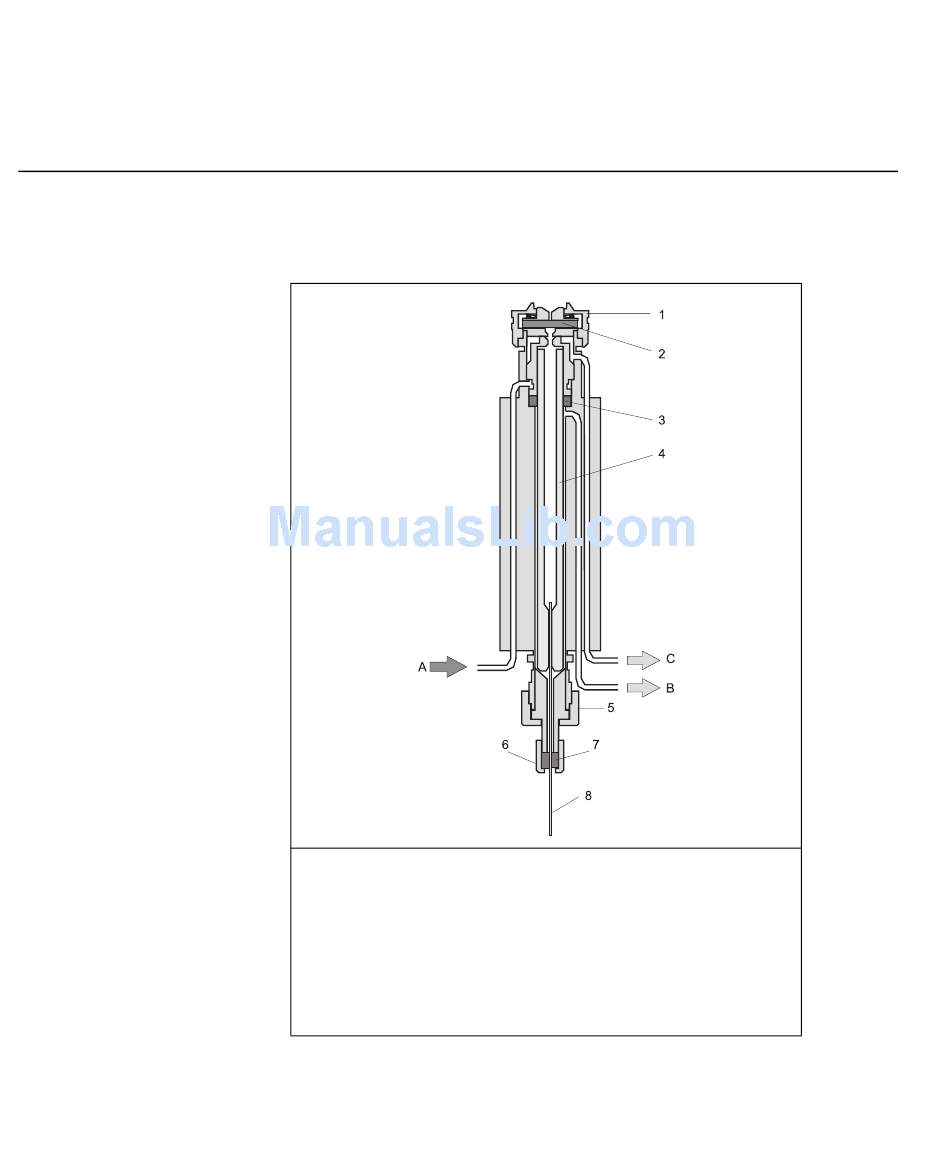

1. Septum Cap
2. Septum
3. Liner Seal
4. Glass Liner
5. Fixing Nut
6. M4 Retaining Nut
Figure 5-1. Split/Splitless Injector
7. Graphite Column Ferrule
8. Capillary Column
A. Carrier Gas Inlet
B. Split Line
C. Septum Purge Line
