Thermo Scientific FOCUS GC Instruction Manual page 333

Set-Up

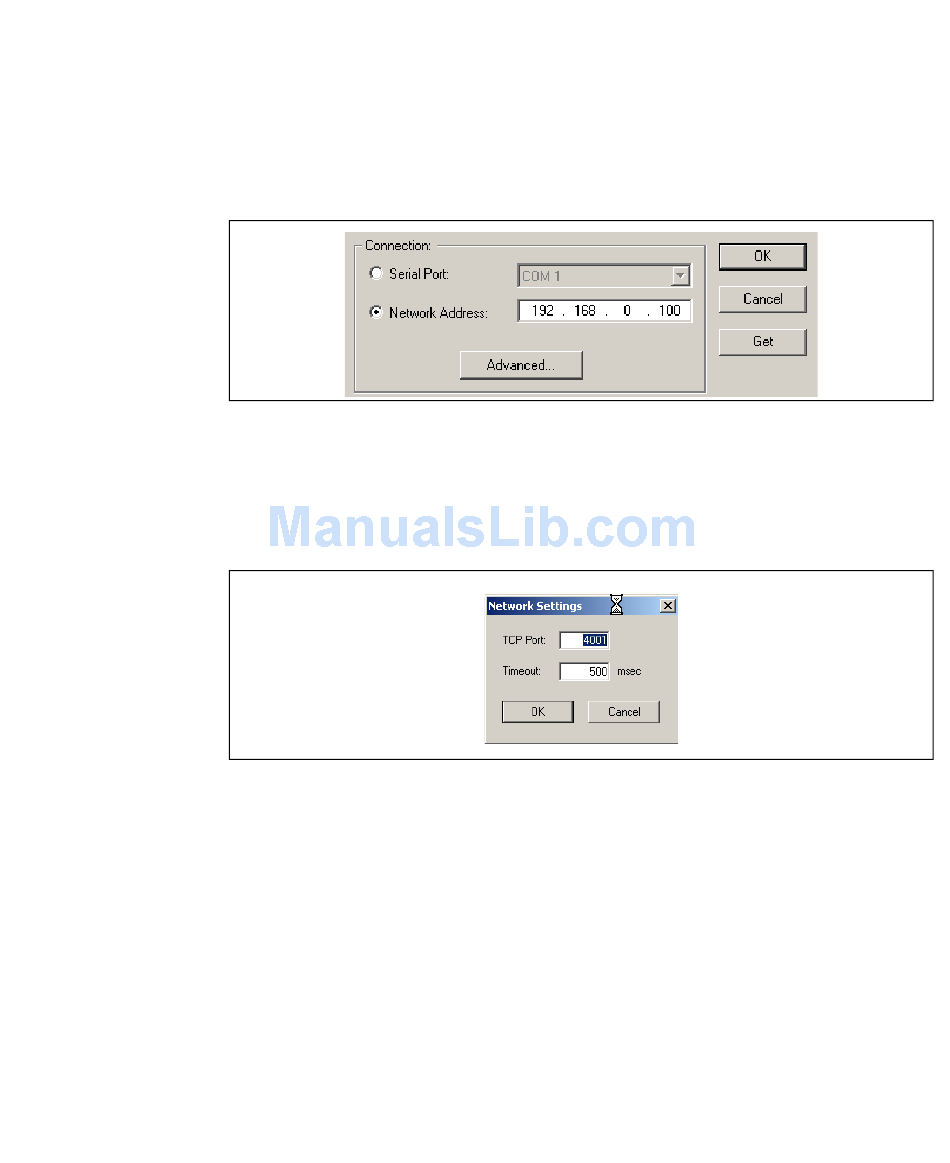

9. Start the Data System and go to Instrument configuration. The FOCUS GC
10. Enter the IP address of the FOCUS GC and complete the configuration in the
The parameters set by default are those necessary for standard operations;
however your LAN may be provided with Firewall services that may prevent the
Port 4001 to be used.
For this reason you have here the possibility to set an alternative port number.
However, the number of the port entered in this box must correspond to the port
assigned to FOCUS GC LAN setup described on step 9.
After selecting Raw connection (TCP server), it will be possible to enter the
Select for more setting menu and to enter a different TCP port rather than the
default 4001.
Instruction Manual
configuration page features the possibility to control the GC through the
COM ports and to specify a direct TCP/IP address.
usual way.
When the ADVANCED button is pressed, it is possible to set the
communication port used by the TCP/IP protocol and the timeout.
Chapter 16
LAN Option Set-up
333
