INSTALLATION INSTRUCTIONS FOR PART 95-7953
APPLICATIONS
Suzuki Grand Vitara
2006-2007
95-7953
KIT FEATURES
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
KIT COMPONENTS
A) Radio Housing • B) Double DIN Brackets • C) Double DIN Trim Plate
A
B
C
TOOLS REQUIRED:
Small Flat Blade Screwdriver • Panel Removal Tool
• Phillips Screwdriver • Socket Set
www.metraonline.com
1-800-221-0932
© COPYRIGHT 2004 METRA ELECTRONICS CORPORATION
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Metra Electronics 95-7953
Summary of Contents for Metra Electronics 95-7953

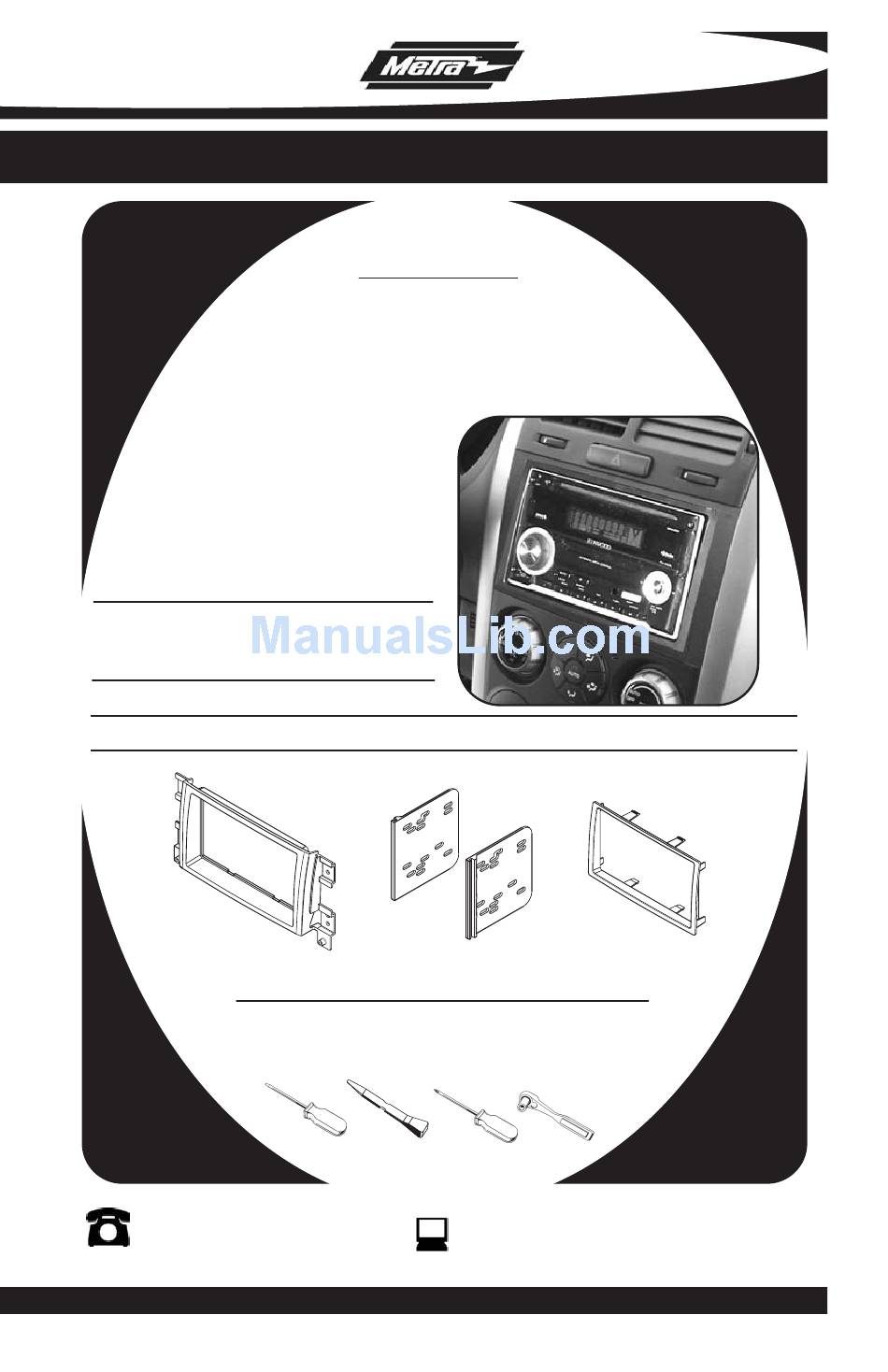

- Page 1 INSTALLATION INSTRUCTIONS FOR PART 95-7953 APPLICATIONS Suzuki Grand Vitara 2006-2007 95-7953 KIT FEATURES • Double DIN Radio Provision • Stacked ISO Mount Units Provision KIT COMPONENTS A) Radio Housing • B) Double DIN Brackets • C) Double DIN Trim Plate TOOLS REQUIRED: Small Flat Blade Screwdriver •...
- Page 2 95-7953 T ABLE OF CONTENTS Dash Disassembly - Suzuki Grand Vitara 2006-2007........1 Kit Assembly - Double DIN Radio Provision .
- Page 3 95-7953 DASH DISASSEMBL Y SUZUKI GRAND VIT ARA 2006-2007 Note: Refer also to the instructions included with the aftermarket radio. Disconnect the negative battery- terminal to prevent an accidental short circuit. Unclip and remove the (2) outside trim panels. (Figure A)
- Page 4 95-7953 KIT ASSEMBL Y DOUBLE DIN RADIO PROVISION Note: Refer also to the instructions included with the aftermarket radio. NOTE: Mount the radio housing to the climate control assembly using the factory screws removed in step 4 of dash disassembly.
- Page 5 95-7953 KIT ASSEMBL Y STACKED ISO MOUNT UNITS PROVISION Note: Refer also to the instructions included with the aftermarket radio. NOTE: Mount the radio housing to the climate control assembly using the factory screws removed in step 4 of dash disassembly.
- Page 6 95-7953 FINAL ASSEMBL Y FINAL ASSEMBL Y (A) Strip wire ends back 1/2" B) Twist ends together C) Solder D) Tape Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter and making connections as shown. (Isolate and individ- ually tape off the ends of any unused wires to prevent electrical short circuit.)
- Page 7 95-7953 NOTES...
- Page 8 95-7953 INSTRUCTIONS 1-800-221-0932 www.metraonline.com REV. 01/05/07 © COPYRIGHT 2004 METRA ELECTRONICS CORPORATION INST95-8211...
