INSTALLATION INSTRUCTIONS FOR PART 95-7331
APPLICATIONS
KIA Amanti
2007-2009
95-7331
KIT FEATURES
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
KIT COMPONENTS
A) Radio Housing B) Double DIN Brackets
A
B
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver • Socket set
1-800-221-0932
www.metraonline.com
© COPYRIGHT 2007-2008
METRA ELECTRONICS CORPORATION
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Metra Electronics 95-7331
Summary of Contents for Metra Electronics 95-7331

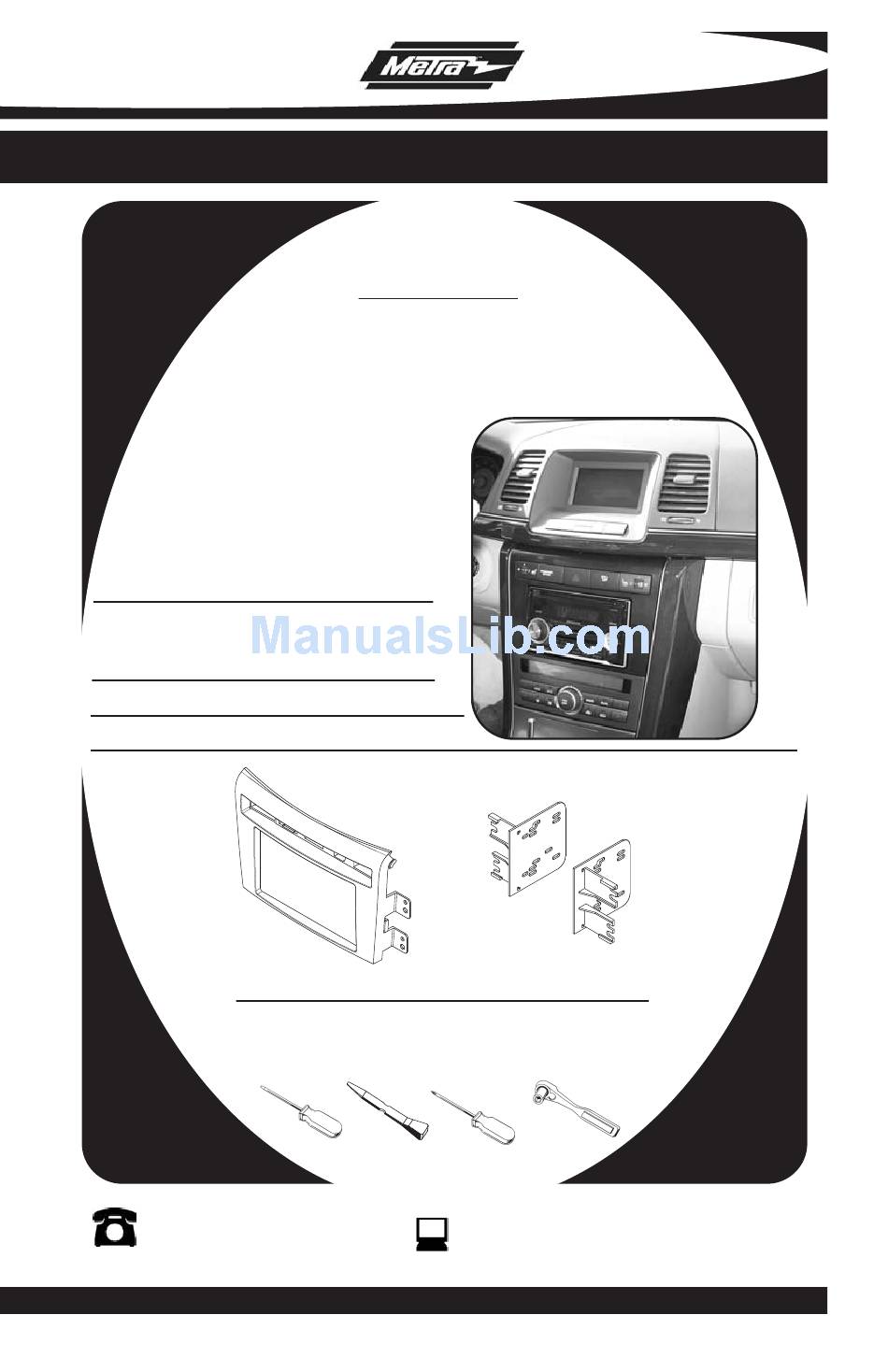

- Page 1 INSTALLATION INSTRUCTIONS FOR PART 95-7331 APPLICATIONS KIA Amanti 2007-2009 95-7331 KIT FEATURES • Double DIN Radio Provision • Stacked ISO Mount Units Provision KIT COMPONENTS A) Radio Housing B) Double DIN Brackets TOOLS REQUIRED: Small Flat Blade Screwdriver/ Panel Removal Tool •...
-
Page 2: Kit Assembly
Final Assembly ......... . . 4 *Note: Refer also to the instructions included with the aftermarket radio. 95-7331 NOWLEDGE IS Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. - Page 3 (Figure C) Open center console and remove screw cover in bottom. (Figure D) Remove (2) 10 MM bolts securing compartment then unclip and remove the compartment. (Figure D) Continue to kit assembly. 95-7331 DASH DISASSEMBL Y...
- Page 4 Unplug and remove the radio. Unclip and remove the switches and/ or switch covers along the top of the factory radio. (Retain switches and/or covers to be reinstalled in the radio housing.) Continue to kit assembly. 95-7331 DASH DISASSEMBL Y KIA AMANTI 2007-2009...
- Page 5 Slide the Double DIN Radio or stacked ISO Mount units into the bracket/radio housing assembly and secure to the assembly using the screws supplied with the radio or ISO mount units. (Figure C) Continue to final assembly. 95-7331 KIT ASSEMBL Y...
- Page 6 *NOTE: When a Black wire is not present, ground radio to vehicle chassis. All colors may not be present on all leads due to manufacturer’s specifications. 95-7331 FINAL ASSEMBL Y (A) Strip wire ends back 1/2" B) Twist ends together...
- Page 7 95-7331 NOTES...
- Page 8 95-7331 INSTRUCTIONS 1-800-221-0932 www.metraonline.com REV. 09/12/08 © COPYRIGHT 2007-2008 METRA ELECTRONICS CORPORATION INST95-7331...
