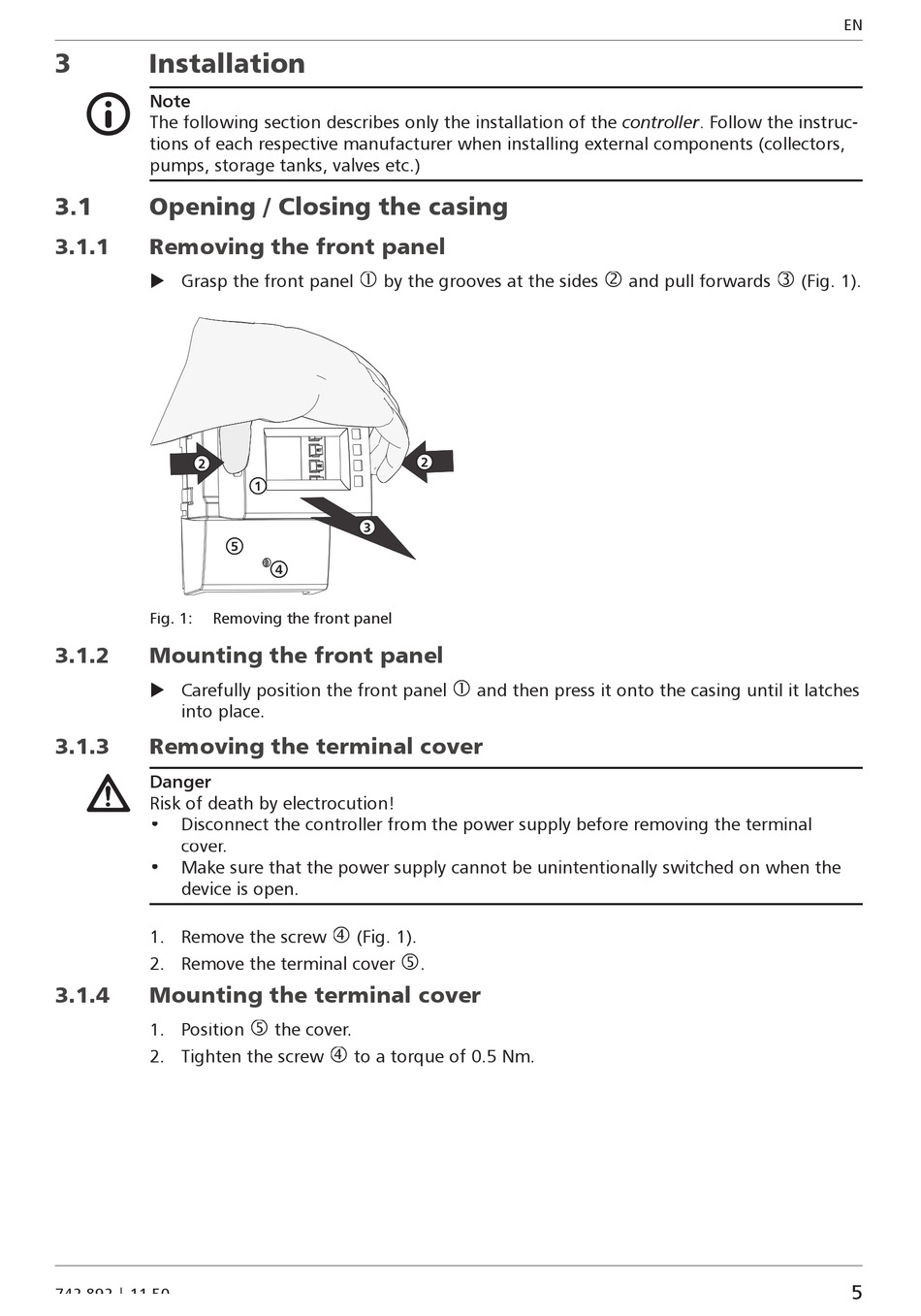

Installation

Note
The following section describes only the installation of the controller. Follow the instruc-
tions of each respective manufacturer when installing external components (collectors,
pumps, storage tanks, valves etc.)
3.1

Opening / Closing the casing

3.1.1 Removing the front panel
X Grasp the front panel
Fig. 1: Removing the front panel
3.1.2 Mounting the front panel
X Carefully position the front panel
into place.
3.1.3 Removing the terminal cover
Danger
Risk of death by electrocution!
• Disconnect the controller from the power supply before removing the terminal
cover.
• Make sure that the power supply cannot be unintentionally switched on when the
device is open.
1. Remove the screw
2. Remove the terminal cover
3.1.4 Mounting the terminal cover
1. Position
2. Tighten the screw
742.892 | 11.50

by the grooves at the sides

(Fig. 1).

.

the cover.

to a torque of 0.5 Nm.


and then press it onto the casing until it latches

and pull forwards (Fig. 1).
