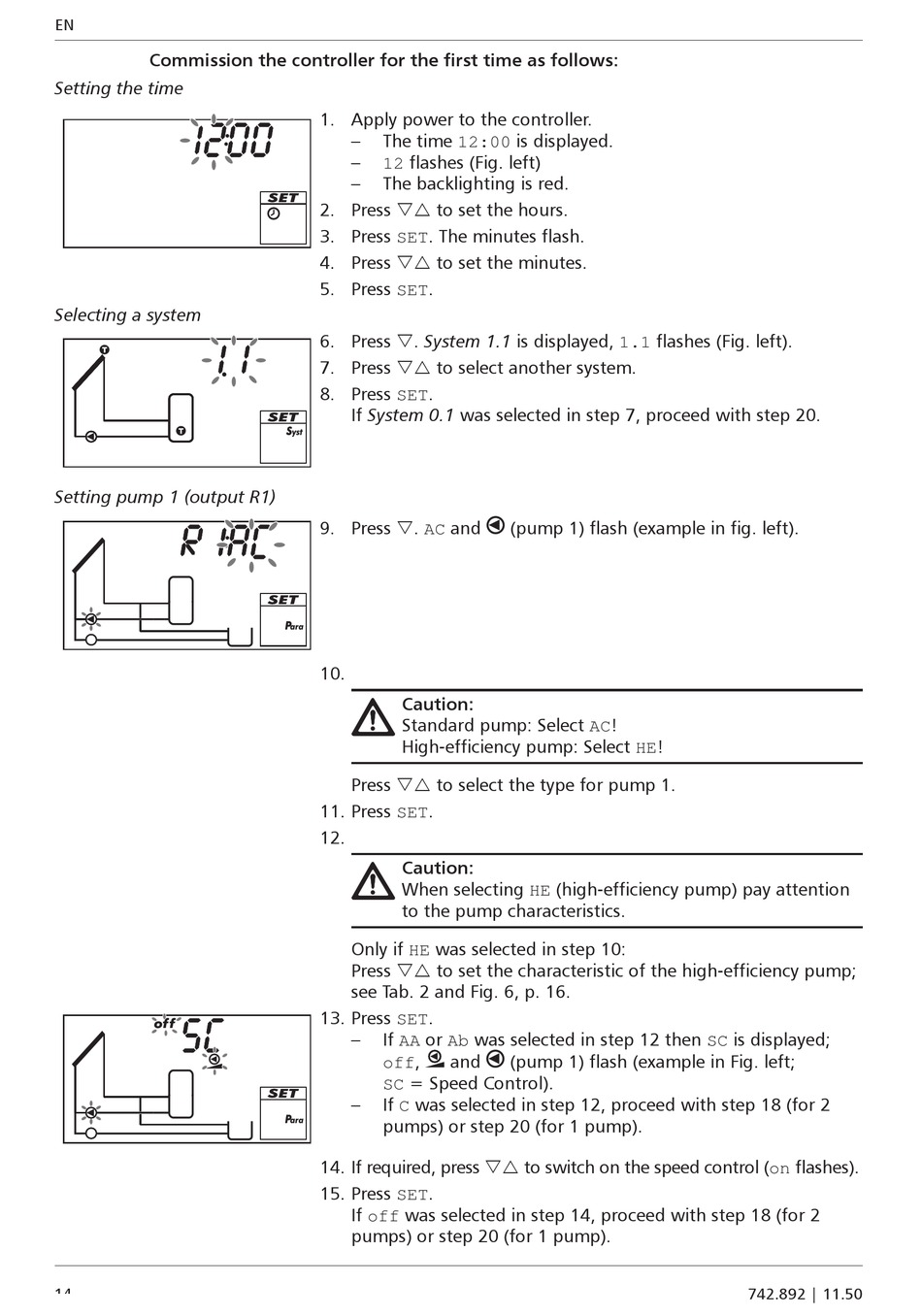

Commission the controller for the first time as follows:
Setting the time
Selecting a system
Setting pump 1 (output R1)
14
1. Apply power to the controller.
– The time 12:00 is displayed.
– 12 flashes (Fig. left)
– The backlighting is red.
2. Press  to set the hours.
3. Press SET. The minutes flash.
4. Press  to set the minutes.
5. Press SET.
6. Press . System 1.1 is displayed, 1.1 flashes (Fig. left).
7. Press  to select another system.
8. Press SET.
If System 0.1 was selected in step 7, proceed with step 20.
9. Press . AC and
10.
Caution:
Standard pump: Select AC!
High-efficiency pump: Select HE!
Press  to select the type for pump 1.
11. Press SET.
12.
Caution:
When selecting HE (high-efficiency pump) pay attention
to the pump characteristics.
Only if HE was selected in step 10:
Press  to set the characteristic of the high-efficiency pump;
see Tab. 2 and Fig. 6, p. 16.
13. Press SET.
– If AA or Ab was selected in step 12 then SC is displayed;
and
off,
SC = Speed Control).
– If C was selected in step 12, proceed with step 18 (for 2
pumps) or step 20 (for 1 pump).
14. If required, press  to switch on the speed control (on flashes).
15. Press SET.
If off was selected in step 14, proceed with step 18 (for 2
pumps) or step 20 (for 1 pump).
(pump 1) flash (example in fig. left).
(pump 1) flash (example in Fig. left;
