1) tyP 1: Calculation of the flow rate from the pump speed. To do this, the displayed flow rate values are entered
at two measuring points (pump speed min. and max.).
tyP 2: Determining the flow rate using a pulse water meter. The flow rate of the pulse water meter in litres/
impulse is entered.
2) Only for systems with 2 pumps. Enter the displayed flow rate values at F
type 1, pump 1.
3) Source: Erneuerbare Energien in Zahlen – Nationale und internationale Entwicklung (Renewable energy sources
in figures - national and international development), p. 20, as of: June 2010; Federal Ministry for the Environ-
ment, Nature Conservation and Nuclear Safety (BMU)
36

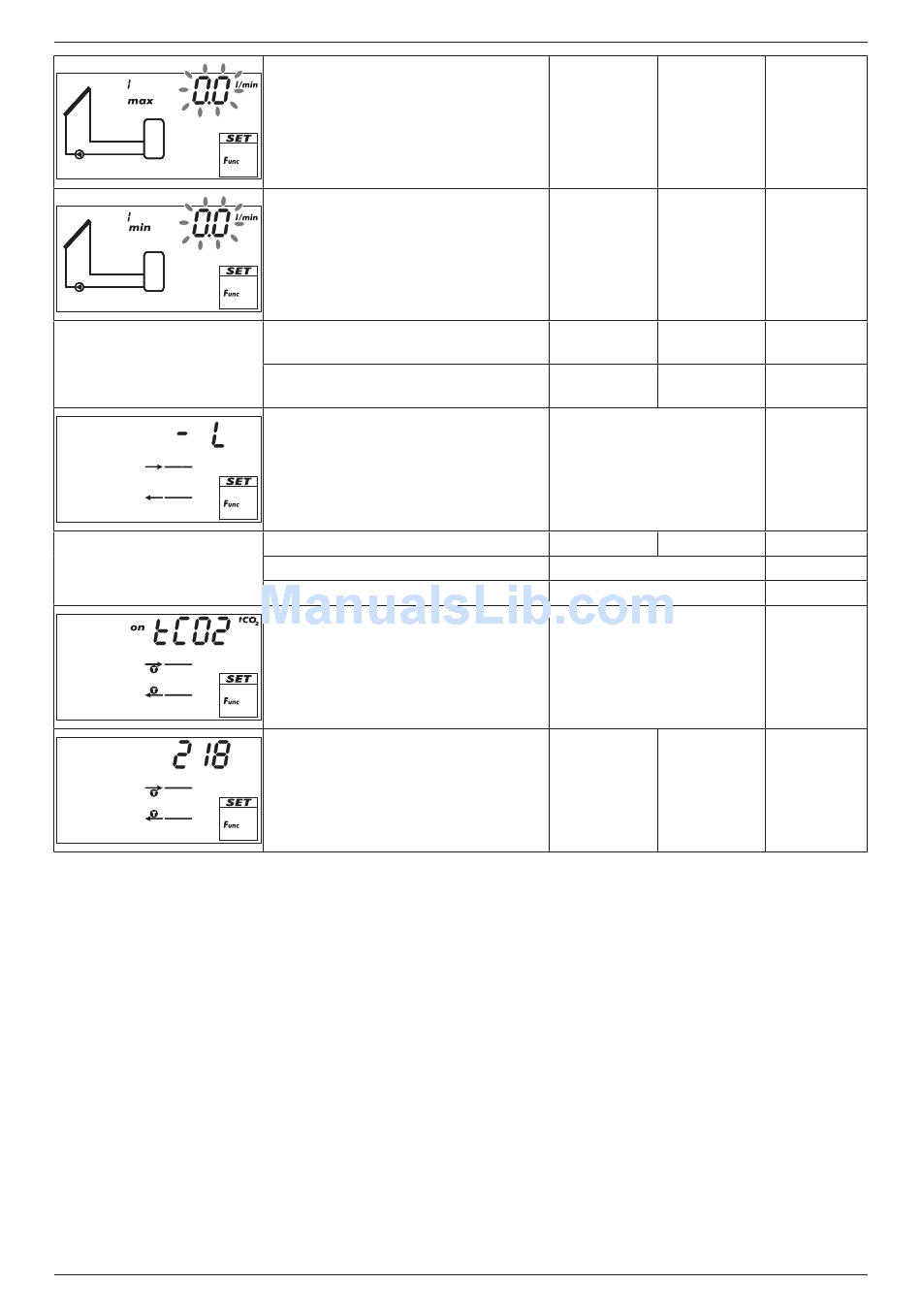

Type 1: Flow rate value at max.
speed F (pump 1).
max.
When the Fig. at the left is dis-
played (value flashes) then enter
the value read from the flow rate
display.
Type 1: Flow rate value at min.
speed F (pump 1).
min.
When the Fig. at the left is dis-
played (value flashes) then enter
the value read from the flow rate
display.
Type 1: Flow rate value at max.
speed F (pump 2) 2)
max.
Type 1: Flow rate value at min.
speed F (pump 2) 2)
min.
Type 2: Flow rate of the pulse
water meter in litres/pulse; see
the pulse water meter data
sheet.
Glycol proportion
Supply sensor input (warm)
Return sensor input (cold)
CO display
2
g /kWh
CO2 therm
F 99.9 l/min
min.
0.0 l/min F
max.
F 99.9 l/min
min.
0.0 l/min F
max.
1L, 10L, 25L
0% 60%
1 ... 5
1 ... 5
on, oFF
1 999
/F in the same manner as with
max. min.
0.0 l/min
0.0 l/min
0.0 l/min
0.0 l/min
–L
(no flow
rate value
selected)
40%
–
–
oFF
218 3)
742.892 | 11.50
