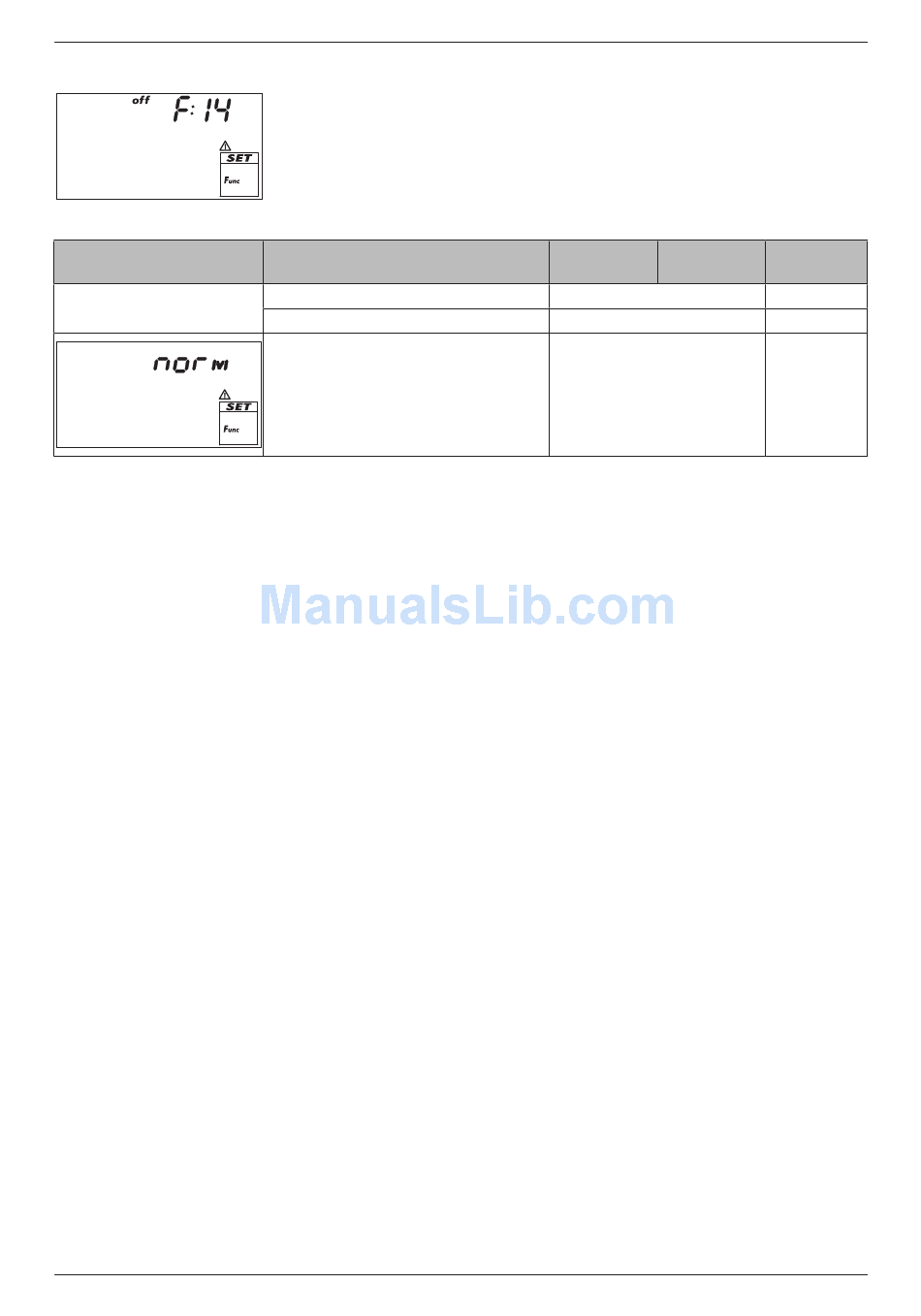

9.3.14 Alarm output
Display
1) More information is provided in Section 13.2, p. 48.
2) norm = normal: Contact closes when a fault occurs.
InV = inverted: Contact opens when a fault occurs.
42
Activates the set output in the case of the following faults:
• Sensor fault due to short-circuit or interruption
• Clock loses the current time due to an extended power outage.
• Volume flow fault: Er: 1
• The electronic overload switch or fuse has triggered: Er: 3 ...
1)
Er: 6
Characteristic
Activation
Output
Control
1)
min.
on, oFF
free output R1/R2/Rs
norm, InV
Factory
max.
setting
oFF
–
2)
norm
