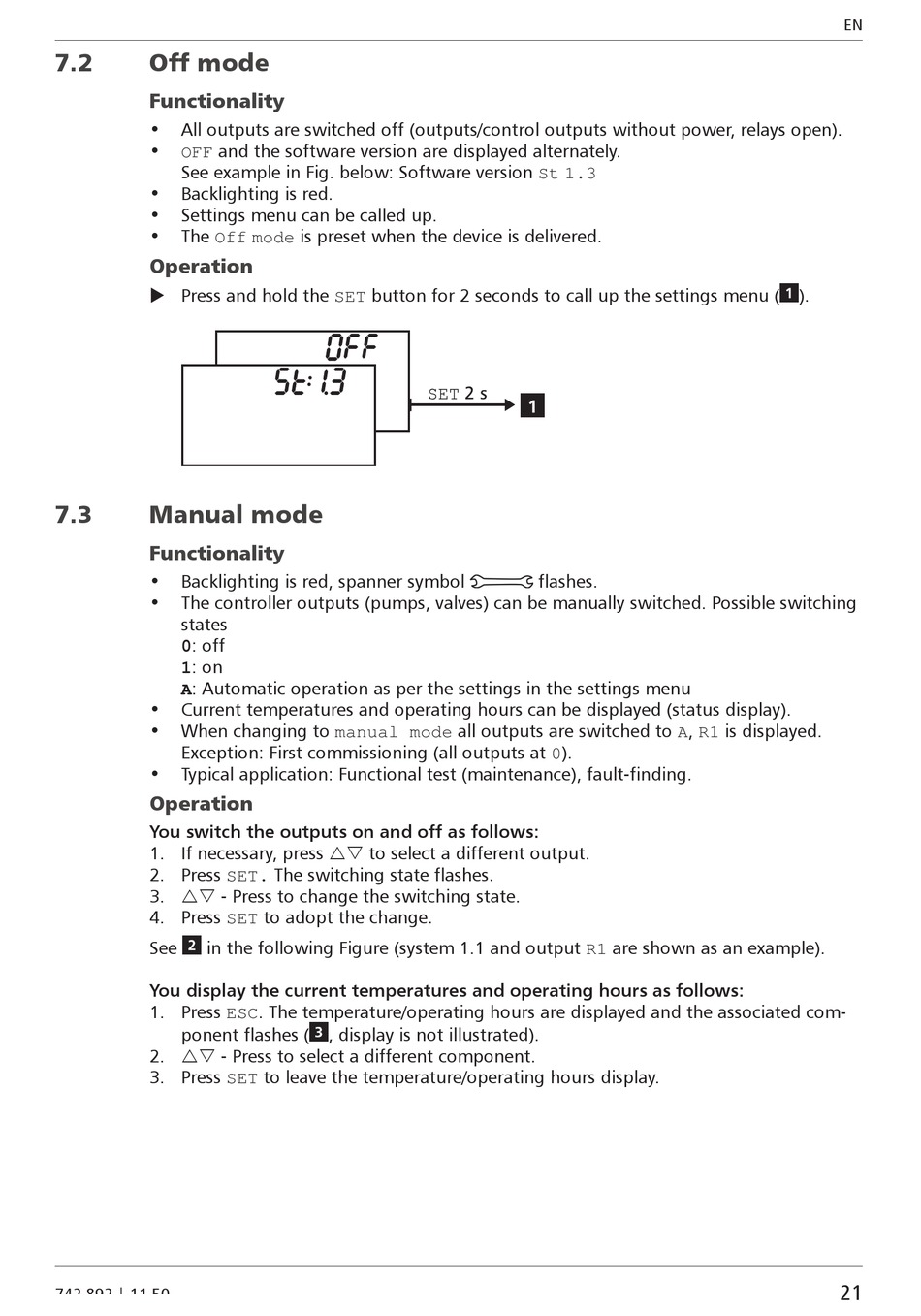

7.2

Off mode

Functionality
• All outputs are switched off (outputs/control outputs without power, relays open).
• OFF and the software version are displayed alternately.
See example in Fig. below: Software version St 1.3
• Backlighting is red.
• Settings menu can be called up.
• The Off mode is preset when the device is delivered.
Operation
X Press and hold the SET button for 2 seconds to call up the settings menu (
7.3

Manual mode

Functionality
• Backlighting is red, spanner symbol
• The controller outputs (pumps, valves) can be manually switched. Possible switching
states
0: off
1: on
A: Automatic operation as per the settings in the settings menu
• Current temperatures and operating hours can be displayed (status display).
• When changing to manual mode all outputs are switched to A, R1 is displayed.
Exception: First commissioning (all outputs at 0).
• Typical application: Functional test (maintenance), fault-finding.
Operation
You switch the outputs on and off as follows:
1. If necessary, press  to select a different output.
2. Press SET. The switching state flashes.
3.  - Press to change the switching state.
4. Press SET to adopt the change.
See in the following Figure (system 1.1 and output R1 are shown as an example).
You display the current temperatures and operating hours as follows:
1. Press ESC. The temperature/operating hours are displayed and the associated com-
ponent flashes (
2.  - Press to select a different component.
3. Press SET to leave the temperature/operating hours display.
742.892 | 11.50
, display is not illustrated).
flashes.
