Kingspan Temperature differential controller Installation And Operating Instructions Manual page 12

EN
Display
1 swimming pool, 1 collector array
T1
T2
R2
1 swimming pool with external heat exchanger, 1 collector array
T1
T3
T2
R1 R2
1 storage tank, 1 swimming pool, 1 collector array (pump-controlled)
T1
T2
R1
R2
1 storage tank, 1 swimming pool, 1 collector array (pump/valve controlled)
T1
T2
R1
R2

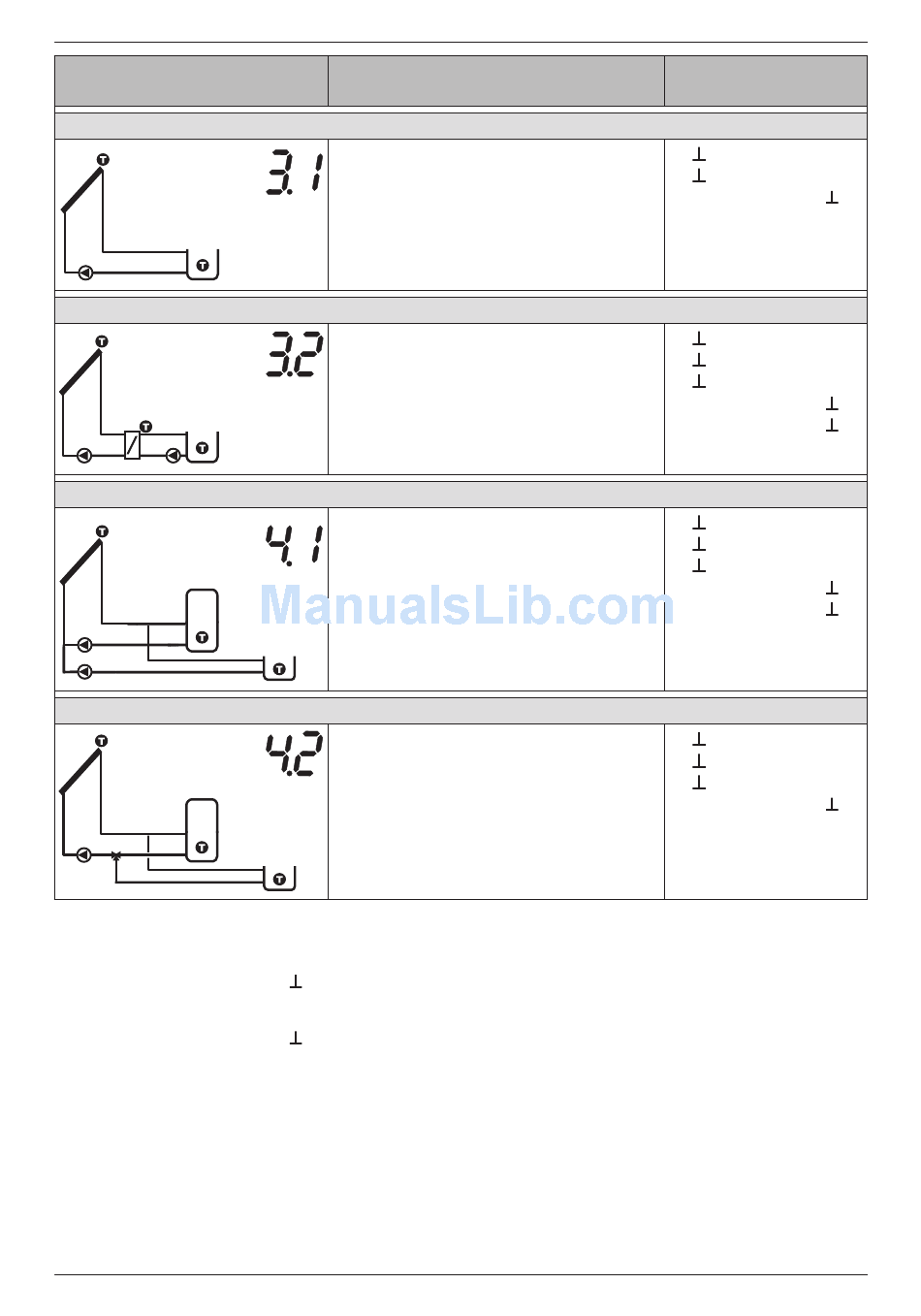

Tab. 1: Terminal pin assignments
1)
Terminal pin assignments for PWM-controlled high-efficiency pumps: The power supply must be
connected to output R1 (N, PE), the control cable for the pump electronics must be connected
to PWM R1 and
2) Terminal pin assignments for PWM-controlled high-efficiency pumps: The power supply must be
connected to output R2 (N, PE), the control cable for the pump electronics must be connected
to PWM R2 and
3) Installation regulation: When no power is supplied to the switching valve then no flow occurs
through the storage tank.
4) Installation regulation: When no power is supplied to the switching valve then the lower part of
the storage tank (T2) is loaded.
5) Installation regulation: When no power is supplied to the switching valve then the first priority
storage tank (T2) is loaded.
6) Installation regulation: When no power is supplied to the switching valve then the storage tank
(T2) is loaded.
12
T1: Collector array sensor
T2: Swimming pool sensor
R2: Solar circuit pump
T1: Collector array sensor
T2: Swimming pool sensor
T3: External heat exchanger sensor
R1: Solar circuit pump
R2: Swimming pool loading circuit pump
T1: Collector array sensor
T2: Lower storage tank sensor
T3: Swimming pool sensor
R1: Storage tank solar circuit pump
R2: Swimming pool solar circuit pump
T3
T1: Collector array sensor
T2: Lower storage tank sensor
T3: Swimming pool sensor
R1: Solar circuit pump
R2: Storage tank switching valve
T3
.
.
Legend
6)
Terminal layout
1,
2,
R2, N, PE (PWM R2, 2)
1,
2,
3,
R1, N, PE (PWM R1, 1)
R2, N, PE (PWM R2, 2)
1,
2,
3,
R1, N, PE (PWM R1, 1)
R2, N, PE (PWM R2, 2)
1,
2,
3,
1)
R1, N, PE (PWM R1,
R2, N, PE
