EN
9

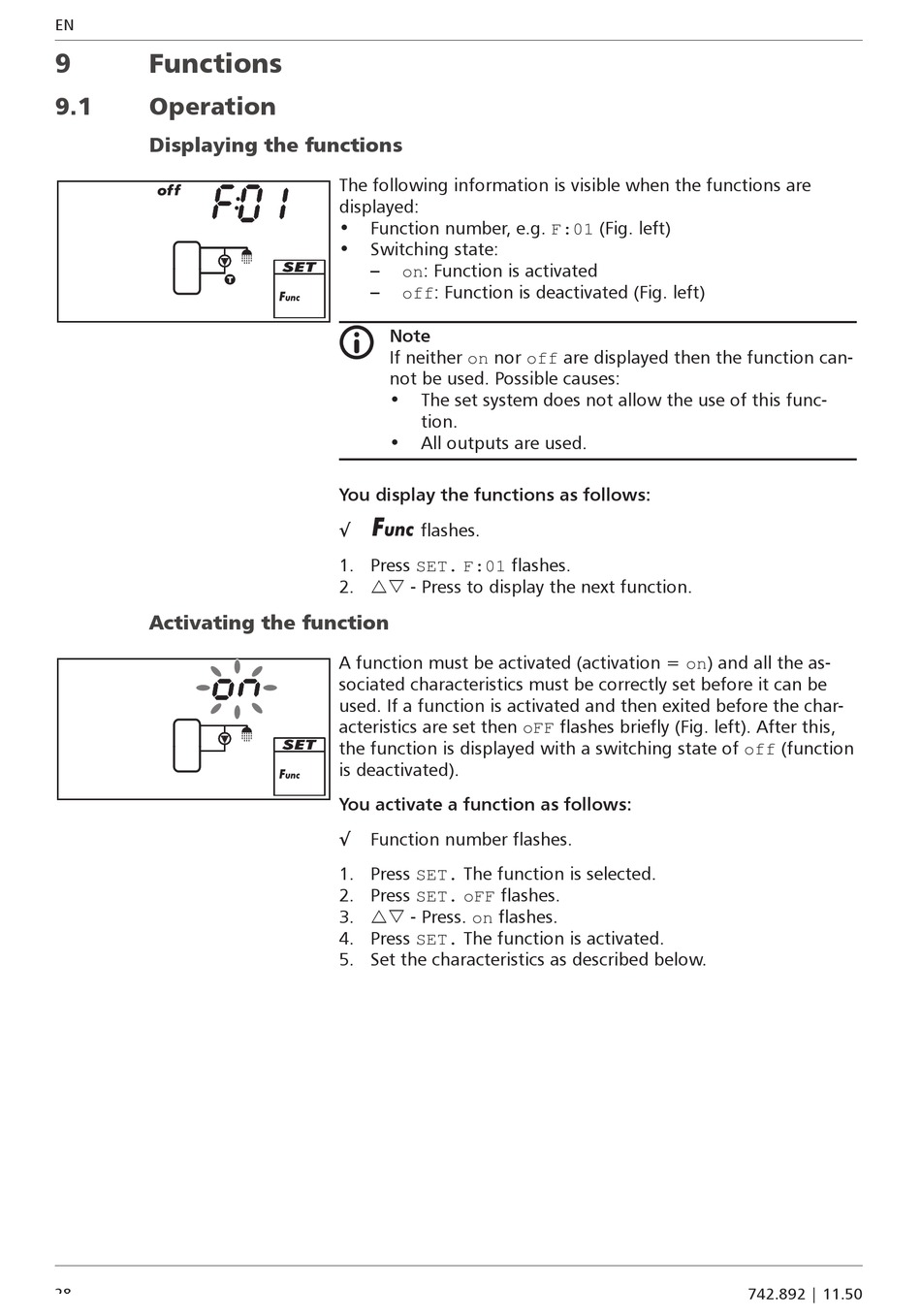

Functions

9.1

Operation

Displaying the functions
Activating the function
28
The following information is visible when the functions are
displayed:
• Function number, e.g. F:01 (Fig. left)
• Switching state:
–
on: Function is activated
– off: Function is deactivated (Fig. left)
Note
If neither on nor off are displayed then the function can-
not be used. Possible causes:
• The set system does not allow the use of this func-
tion.
• All outputs are used.
You display the functions as follows:
F
√ flashes.
unc
1. Press SET. F:01 flashes.
2.  - Press to display the next function.
A function must be activated (activation = on) and all the as-
sociated characteristics must be correctly set before it can be
used. If a function is activated and then exited before the char-
acteristics are set then oFF flashes briefly (Fig. left). After this,
the function is displayed with a switching state of off (function
is deactivated).
You activate a function as follows:
√ Function number flashes.
1. Press SET. The function is selected.
2. Press SET. oFF flashes.
3.  - Press. on flashes.
4. Press SET. The function is activated.
5. Set the characteristics as described below.
