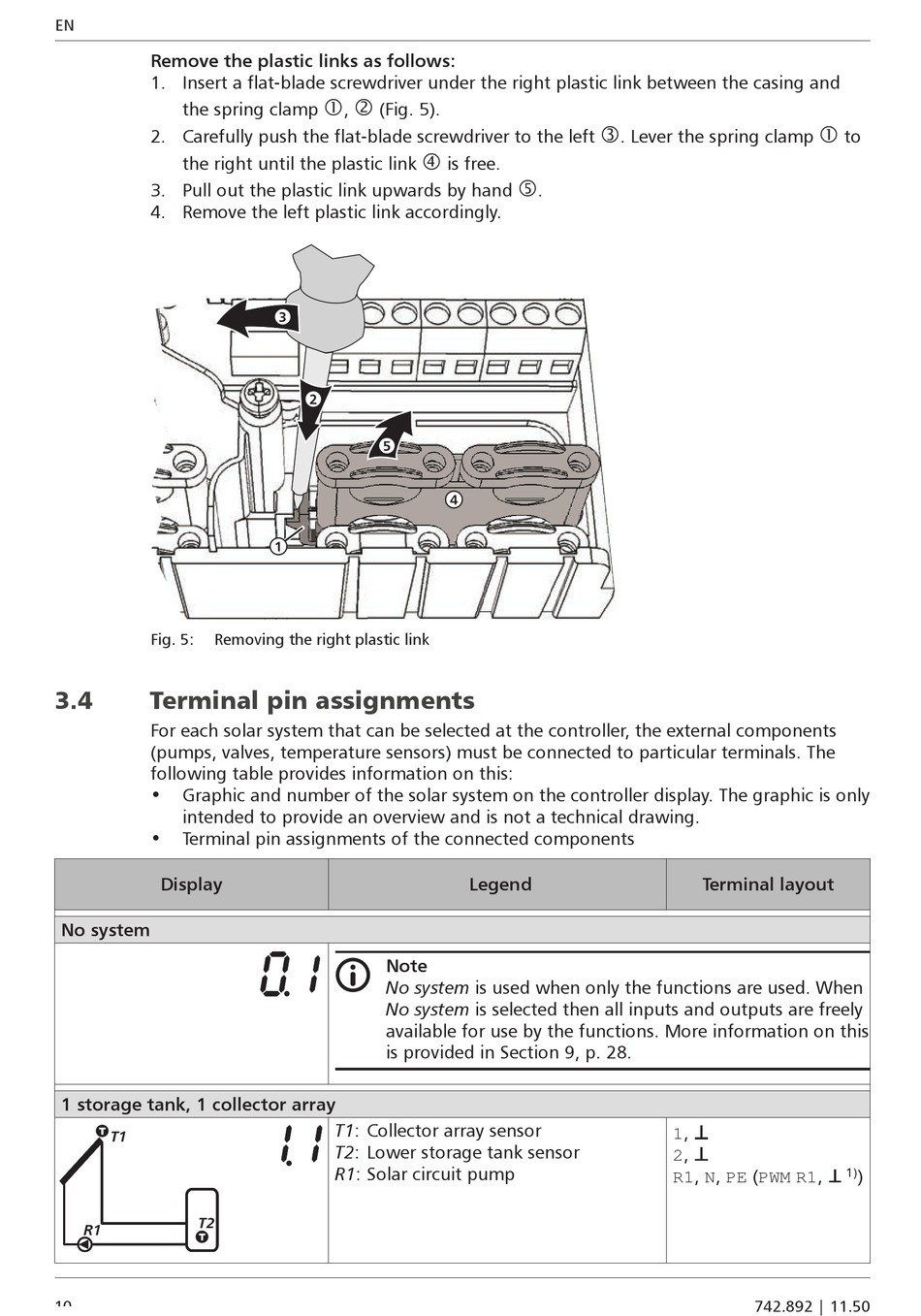

Terminal Pin Assignments - Kingspan Temperature differential controller Installation And Operating Instructions Manual

EN
Remove the plastic links as follows:
1. Insert a flat-blade screwdriver under the right plastic link between the casing and
the spring clamp
2. Carefully push the flat-blade screwdriver to the left
the right until the plastic link
3. Pull out the plastic link upwards by hand
4. Remove the left plastic link accordingly.
Fig. 5: Removing the right plastic link
3.4

Terminal pin assignments

For each solar system that can be selected at the controller, the external components
(pumps, valves, temperature sensors) must be connected to particular terminals. The
following table provides information on this:
• Graphic and number of the solar system on the controller display. The graphic is only
intended to provide an overview and is not a technical drawing.
• Terminal pin assignments of the connected components
Display
No system
1 storage tank, 1 collector array
T1
T2
R1
10
 
, (Fig. 5).

is free.
Legend
Note
No system is used when only the functions are used. When
No system is selected then all inputs and outputs are freely
available for use by the functions. More information on this
is provided in Section 9, p. 28.
T1: Collector array sensor
T2: Lower storage tank sensor
R1: Solar circuit pump

. Lever the spring clamp

.
1,
2,
R1, N, PE (PWM R1,

to
Terminal layout
1) )
742.892 | 11.50
