Summary of Contents for Baumatic BHI625

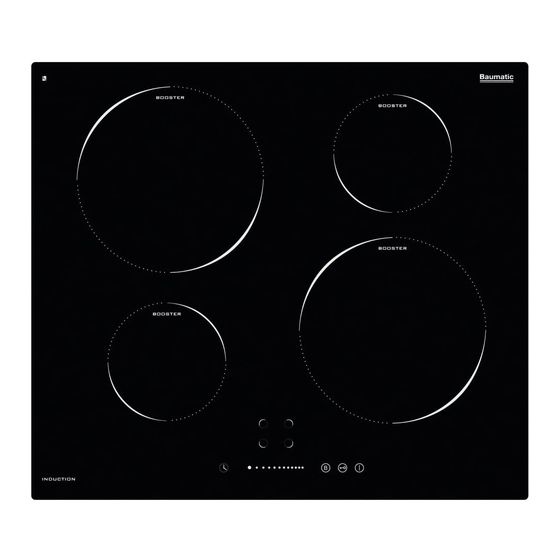

- Page 1 BHI625 60cm Induction hob with slider...
- Page 2 User Manual for your Baumatic BHI625 60 cm Induction hob with slider NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 3: Table Of Contents
Unpacking the appliance Installing the appliance 26– 27 Electrical connection 27 - 28 Connecting the mains supply cable Replacing the mains supply cable My appliance isn’t working correctly 29 - 31 Error codes 30 - 31 Baumatic consumables Contact details... -
Page 4: Environmental Note
Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
No modifications to the appliance are permitted by Baumatic Ltd. o You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made... - Page 6 Safety o Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the applian ce at any time. During and after use, all surfaces will be hot. o If it is necessary for younger family members to be in the...
- Page 7 If in doubt, you should consult the manufacturer of your device or your doctor. In this respect, Baumatic can only guarantee the conformity of our own product. o If an object made of metal, (e.g. saucepan lid, knife, fork or spoon) is placed on a cooking zone that is switched on, it can get hot.
- Page 8 Declaration of conformity This appliance complies with the following European Directives: -2006/95/CE General regulations / Low tension -1935/2004/CE 90/128/EEC This appliance is suitable to come in contact with food -2004/108/CE Electromagnetic compatibility o The manufacturer declares that the hob is built using certified materials requires appliance...
-
Page 9: Specifications
Specifications Product dimensions: Aperture dimensions: Depth: 520 mm Depth: 495 mm Width: 590 mm Width: 565 mm Height: 56.5 mm Height: 106.5 mm Product specifications: o 2 x 2.30 kW induction zones with booster (2.60 kW) Ø 220 mm o 2 x 1.20 kW induction zones with booster (1.50 kW) Ø 140 mm o Front touch slider control operation o Safety lock o 4 individual residual heat indicators... -
Page 10: Electrical Details
Electrical details Rated Voltage: 220 - 240 Vac 50 - 60 Hz Supply Connection: 30 A (double pole switched fused outlet with 3mm contact gap) Max Rated Inputs: 7.00 kW Mains Supply Lead: 3 core x 6 mm² (not supplied) For future reference please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. -
Page 11: Control Panel Layout
Control panel layout 1) Cooking zone selection buttons 2) Timer button 3) Slider control 4) Booster button 5) Safety lock button 6) ON/OFF button Using the ceramic hob Before first use IMPORTANT: You should clean the ceramic hob surface (see “Cleaning and maintenance”... -
Page 12: Touch Controls
Touch controls o All operations are performed by means of the touch controls that can be found on the control panel. o The controls respond to touch so you do not need to add any pressure. o You should use the ball of your finger not the tip when using the controls. -
Page 13: Switching On A Zone And Setting A Power Level
Switching on a zone and setting a power level IMPORTANT: A zone must be selected within 1 minute of turning the hob on. o Make sure that the bottom of the pan and the surface of the hob are clean and dry before placing a suitable pan on the cooking zone that you wish to use. -
Page 14: Power Levels
o No heating will take place unless there is a suitable pan on the cooking zone. The display will automatically turn off after 2 minutes if no suitable pan is placed on it. Power levels o For a general guide to cooking various foods at the different power levels please refer to the table below. -
Page 15: Switching The Hob Off
o An “H” symbol will show in the cooking zone indicator until the surface has cooled down to a safe temperature (see section “residual heat indicator” for further information). Switching the hob off Once you have switched off all of the cooking zones, you should switch the hob off. -
Page 16: Cookware That Is Suitable For An Induction Hob
approximately every few seconds. If no pan is detected after 2 minutes the hob will automatically switch off o You should check that your pans are suitable for use on an induction zone hob (see the pan manufacturer’s trademark or instructions). -
Page 17: The Hob Timer (Minute Minder)
o The boost function will operate the chosen cooking zone at maximum power for 5 minutes. After this time, the cooking zone will return to its original power setting. o The booster function can be used on every cooking zone. The hob timer (minute minder) Your hob has a timer which will countdown a period of time between 1 and 99 minutes. -
Page 18: The Hob Timer (Linked To A Cooking Zone)
o When the required countdown time is shown in the display, release all controls. The display will show the remaining time before the countdown begins automatically. o When the set countdown time has elapsed an alarm will sound for 30 seconds and the timer indicator will show “- -”. - Page 19 o Press the timer button again and the “1” digit will flash. o Set the required countdown time using the slider control. As you slide the control to the right the time will increase in 10 minutes intervals. As you slide the control to the left the time will decrease in 10 minute intervals.
-
Page 20: Cancelling A Timer Function
WARNING: If any other cooking zones are in use, without a countdown timer set, they will continue heating. You will need to switch them off manually when cooking is complete. Cancelling a timer function o Press the cooking zone selection button of the zone that you wish to cancel the countdown timer for. -
Page 21: Safety Cut-Off
o If the hob is switched off using the ON/OFF button while the safety lock is activated, the safety lock will still be activated when the hob is turned back on. Safety cut-off o If one or more of the cooking zones are accidentally left on, a safety cut off will activate after a certain period of time. -
Page 22: Cleaning And Maintenance
Especially if pointed or hard objects are allowed to fall on it with some force. o DO NOT USE THE HOB IF THE SURFACE BECOMES BROKEN OR CRACKED. YOU SHOULD CONTACT THE BAUMATIC CUSTOMER CARE DEPARTMENT IMMEDIATELY. Cleaning and maintenance Cleaning operations must only be carried out when the hob is cool. -
Page 23: After Each Use
Although it is easier to clean some deposits whilst the hob surface is still warm. You should take care not to burn yourself if cleaning the hob surface when it is still warm. After each use o Wipe the appliance over with a damp cloth and a little washing up liquid. -
Page 24: Using A Specialist Ceramic Hob Cleaner
o The ceramic surface should be wiped with a damp cloth and a small amount of washing up liquid. o Dry the appliance by rubbing the surface with a clean cloth. Using a specialist ceramic hob cleaner It is possible to purchase specialist ceramic hob cleaner/conditioner. You should follow the instructions given by the manufacturer of the specialist ceramic hob cleaner. -
Page 25: Unpacking The Appliance
Unpacking the appliance When unpacking the appliance please check that the following items are contained within the packaging:- 1 Baumatic hob 1 Ceramic hob scraper 1 Installation and instruction manual 1 Baumatic guarantee card Fixing brackets Fixing screws... -
Page 26: Installing The Appliance
Installing the appliance o Cut a hole in the worktop that corresponds with the drawing shown above. o IMPORTANT: There ventilation holes around the outside of the hob. YOU MUST ensure that these holes are not blocked by the work top, when you put the hob into position (see drawing opposite). -
Page 27: Electrical Connection
Electrical connection This appliance must be installed by a qualified person in accordance with the latest edition of the I.E.E. Regulations and in compliance with Baumatic’s instructions. Before connecting the appliance, make sure that the supply voltage marked on the rating plate corresponds with your mains supply voltage. -
Page 28: Connecting The Mains Supply Cable
If when the hob is first switched on, only two of the zones work, you should recheck that the terminal screws are all fully tightened between the links. This should be done before contacting Baumatic Customer Care Department. o IMPORTANT: The appliance must NOT be connected to the mains supply by means of a 13A plug and socket. -
Page 29: Replacing The Mains Supply Cable
Replacing the mains supply cable If the mains supply cable is damaged, then it must be replaced by an appropriate replacement. The mains supply cable should be replaced in accordance with the instructions below: o Switch the appliance off at the socket. o Open the terminal block on the underside of the hob. -
Page 30: Error Codes
* IMPORTANT: If the cooking zone does appear to be hotter than 60°C and the residual heat indicator has not come on, you should call the Baumatic Customer Care Department. o A humming sound is heard when a cooking zone is selected. - Page 31 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the...
-
Page 32: Baumatic Consumables
BC005 Stainless Steel Cleaner and Protector (250 ml) o BC007 E-Cloth – General Purpose Cloth o BC008 Microwave Cover To order a Baumatic consumable product please call 0123 5437 244 and quote the product code. You can also order online from eshop.baumatic.co.uk... -
Page 33: Contact Details
Czech Republic United Kingdom Baumatic CR spol s.r.o. Baumatic Ltd., Lípovà 665 Baumatic Buildings, 460 01 Liberec 4 6 Bennet Road, Czech Republic Reading, Berkshire RG2 0QX +420 483 577 200 United Kingdom www.baumatic.cz Sales Telephone Slovakia (0118) 933 6900 Baumatic Slovakia, s.r.o.
