Baumatic BHI100 Instruction Manual

Baumatic BHI100 Instruction Manual

Freestanding 1 zone induction hob
Hide thumbs Also See for BHI100:

Advertisement

BHI100
Freestanding 1 zone
induction hob
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BHI100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Baumatic BHI100

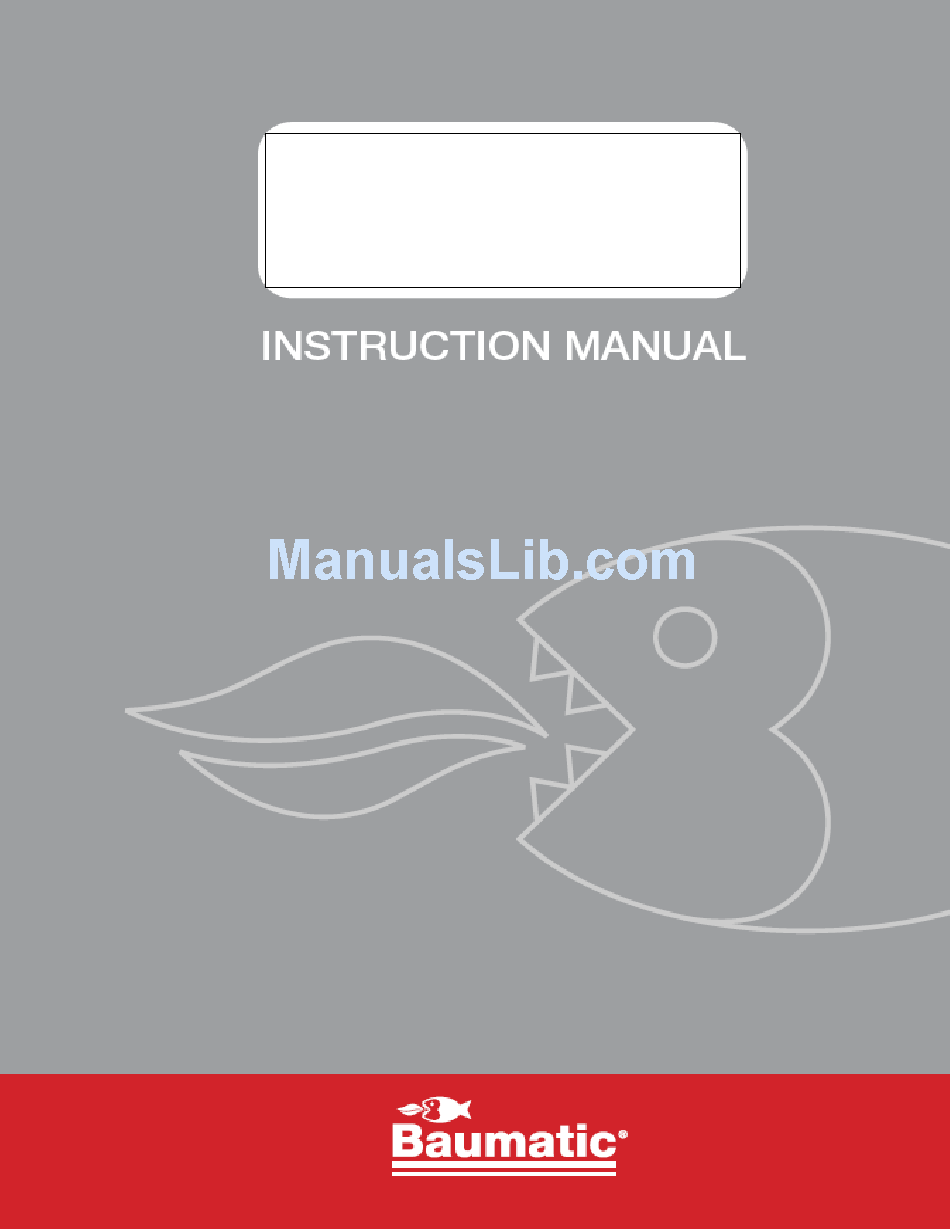

  • Page 1 BHI100 Freestanding 1 zone induction hob...
  • Page 2 User Manual for your Baumatic BHI100 Freestanding 1 zone induction NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference; for you or any person not familiar with the operation of the appliance.
  • Page 3: Table Of Contents

    Contents Environmental note Important safety information 5 – 7 Specifications 8 -10 Product dimensions Product specifications Electrical details Ceramic hob surface layout Control panel layout 9-10 Using the induction hob 10-14 Before first use Cooking on the induction zone Heat level settings 11-12 Using the timer Turning off the induction zone after cooking...
  • Page 4: Environmental Note

    Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment.
  • Page 5: Important Safety Information

    General Information o Repairs may only be o This appliance is designed carried out by Baumatic for domestic household Service Engineers or use and for the cooking their authorised service and frying of domestic agent.
  • Page 6 The electrical connection device or your Doctor. cable should not hang In this respect, over the edge of the table Baumatic can only or counter. guarantee the conformity of our own product.
  • Page 7 o If an object made of -2004/108/CE metal, (e.g. saucepan Electromagnetic compatibility lid, knife, fork or spoon) is placed on a o The manufacturer declares cooking zone that is that the hob is built using switched on, it can get certified materials.
  • Page 8: Specifications

    Specifications Product dimensions Depth: 345 mm Width: 280 mm Height: 60 mm Product specifications: o 1 x 2.00 kW standard induction zone (Ø 190 mm) o Front touch control operation o Electronic timer Electrical details Rated Voltage: 220 - 240 Vac 50/60 Hz Supply Connection: 13 A (double pole switched fused outlet with 3mm contact gap)
  • Page 9: Ceramic Hob Surface Layout

    Ceramic hob surface layout Control panel layout ON/STANDBY button Power light Heat button Heat “W” light LED display Temperature light Temperature button...
  • Page 10: Using The Induction Hob

    Timer button Minus button Timer “min” light Plus button Using the induction hob Before first use IMPORTANT: You should clean the ceramic hob surface (see “Cleaning and maintenance” section). o You should switch on the hob for 5 minutes at the maximum setting.
  • Page 11: Heat Level Settings

    Heat level settings o The settings below are to be used as a guideline only. The exact setting required will depend on several factors, including your cookware and the amount of food that you are cooking. o You should experiment with the induction hob power levels to find the best settings to suit you.
  • Page 12: Using The Timer

    IMPORTANT: A buzzer will sound for 10 seconds before the hob turns off if: o The pan is not placed correctly on the cooking zone o The pan you are using is not suitable for induction cooking. No heating will occur unless there is a suitable pan on the cooking zone.
  • Page 13: Cookware That Is Suitable For An Induction Hob

    Cookware that is suitable for an induction hob The table below shows cookware that is normally suitable for use on an induction zone hob:- Cookware Suitable Steel, enamelled steel Cast iron Stainless steel stated manufacturer) Aluminium, copper, brass Glass, ceramic, porcelain o The bottom of the pans should be as flat and thick as possible.
  • Page 14: Cleaning And Maintenance

    DO NOT USE THE HOB o DO NOT directly rinse the IF THE SURFACE induction hob under BECOMES BROKEN OR water. No liquids should CRACKED. YOU SHOULD come into contact with the CONTACT THE internal parts of the BAUMATIC SERVICE appliance.
  • Page 15: After Each Use

    After each use least 10 cm between the sides and rear of the hob o Wipe the appliance over and any adjacent wall or with a damp cloth. cupboard. o Dry the appliance by o Do not use the induction rubbing the surface with a hob in narrow spaces to clean cloth.
  • Page 16: Electrical Connection (European Countries)

    o As the colours of the wires Electrical connection in the appliance’s mains (European countries) lead may not correspond with the coloured The induction hob comes markings identifying the supplied with a European plug. terminals in your spur box, please proceed as o As the colours of the wires follows:- in the appliance’s mains...
  • Page 17: My Appliance Isn't Working Correctly

    My appliance isn’t working correctly Error codes If you appliance senses an abnormality, the hob will enter stand-by mode and will display a corresponding error code. Error Possible What to do code causes E3, E6 Temperature Wait a moment and then press the sensor error.
  • Page 18: Your Appliance

    Baumatic the call out charge. Customer Care Department on telephone number (0118) Please refer to the conditions of 933 6911.
  • Page 19: Contact Details

    United Kingdom Baumatic Ltd., Czech Republic Baumatic Buildings, Baumatic CR spol s.r.o. 6 Bennet Road, Lípovà 665 Reading, Berkshire 460 01 Liberec 4 RG2 0QX Czech Republic United Kingdom +420 483 577 200 Sales Telephone (0118) 933 6900 www.baumatic.cz Sales Fax...

This manual is also suitable for:

Bhi100-aus
