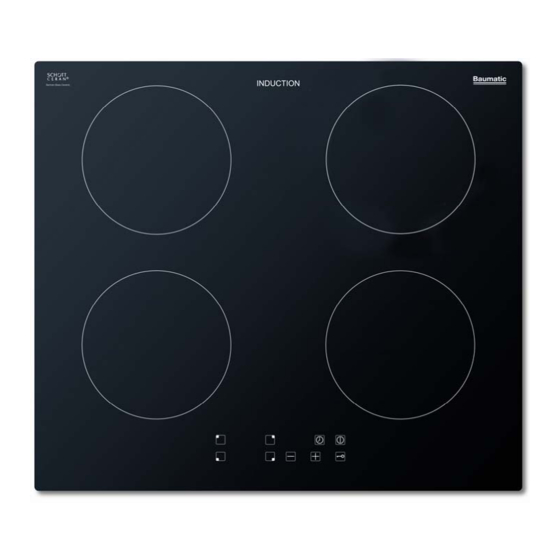

- Page 1 BHI609 60cm Front touch control induction zone hob...
- Page 2 User Manual for your Baumatic BHI609 60 cm Touch control induction zone hob NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 3: Table Of Contents
Contents Environmental note Important safety information 5 – 8 Specifications 9 - 11 Electrical details Ceramic hob surface layout Control panel layout Using the ceramic hob 11 - 17 Before first use Touch controls Switching the hob on Switching on a zone and setting a power level 12 - 13 Switching off a zone gradually Switching off a zone instantly... -
Page 4: Environmental Note
Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
You should not use this appliance to store items on or as a work surface. o No modifications to the appliance are permitted by Baumatic Ltd. o You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made from aluminium, plastic or plastic film should also be kept away from the appliance, as they may fuse to the surface. - Page 6 Child Safety o Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the appliance at any time. During and after use, all surfaces will be hot. o If it is necessary for younger family members to be in the kitchen, please ensure that they are kept under close supervision at all times.
- Page 7 If in doubt, you should consult the manufacturer of your device or your doctor. In this respect, Baumatic can only guarantee the conformity of our own product. o If an object made of metal, (e.g. saucepan lid, knife, fork or spoon) is placed on a cooking zone that is switched on, it can get hot.
- Page 8 Declaration of conformity This appliance complies with the following European Directives: -2006/95/CE General regulations / Low tension -1935/2004/CE 90/128/EEC This appliance is suitable to come in contact with food -2004/108/CE Electromagnetic compatibility o The manufacturer declares that the hob is built using certified materials requires appliance...
-
Page 9: Specifications
Specifications Product dimensions: Aperture dimensions: Depth: 520 mm Depth: 495 mm Width: 590 mm Width: 565 mm Height: 56 mm Product specifications: o 2 x 2.00 kW induction zone (Ø 180 mm) o 2 x 1.50 kW induction zone (Ø 180 mm) o Front touch control operation o Timer o Auto pan detection... -
Page 10: Electrical Details
Electrical details Rated Voltage: 230 Vac 50 Hz Supply Connection: 30 A (double pole switched fused outlet with 3mm contact gap) Max Rated Inputs: 7.0 kW Mains Supply Lead: 3 core x 6 mm² (not supplied) For future reference please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. -
Page 11: Control Panel Layout
Control panel layout 1) ON/OFF button 2) Safety lock button 3) Timer button 4) Plus button 5) Minus button 6) Cooking zone selection buttons (x 4) 7) Cooking zone indicators (x 4) Using the ceramic hob Before first use IMPORTANT: You should clean the ceramic hob surface (see “Cleaning and maintenance”... -
Page 12: Touch Controls
Touch controls o All operations are performed by means of the touch controls that can be found on the control panel. o Each touch control has a visual display that corresponds to it. Switching the hob on o When the hob is connected to a power supply, an audible signal will sound. -
Page 13: Switching Off A Zone Gradually
o Select the power level for the cooking zone that have selected, by using the plus (4) and minus (5) buttons. o The cooking zone indicator will show power level 5 initially. o When the cooking zone indicator shows the power level that you require, release the plus and minus buttons and the cooking zone will start to heat. -
Page 14: Switching Off A Zone Instantly
Switching off a zone instantly o Press the zone selection button (6) of the cooking zone that you want to switch off. o Press the plus (4) and minus button simultaneously. o The zone will switch off immediately. o A flashing “H” symbol will show in the cooking zone indicator (7) until the temperature of the zone falls below 60°C (see the section on the “residual heat indicator”... -
Page 15: Residual Heat Indicator
Residual heat indicator o After a zone is switched off, the corresponding cooking zone indicator (7) will show a flashing letter “H”. This means that the temperature of the zone is over 60°C and is therefore still high enough to cause injury. o IMPORTANT: The residual heat indicator will disappear if your mains supply is cut. -
Page 16: Cookware That Is Suitable For An Induction Hob
Cookware that is suitable for an induction hob The table below shows cookware that is normally suitable for use on an induction zone hob:- Cookware Suitable Steel, enamelled steel Cast iron Stainless steel stated manufacturer) Aluminium, copper, brass Glass, ceramic, porcelain o The bottom of the pans should be as flat and thick as possible. -
Page 17: Locking The Hob Top
o When the countdown time that you require appears on the timer display, you should release the plus and minus buttons. o The timer display will flash for 5 seconds, when it stops flashing, the time period is set. Or you can press the timer button (3) to confirm the time period. -
Page 18: Safety Cut-Off
Safety cut-off o If one or more of the cooking zones are accidentally left on, a safety cut off will activate after a certain period of time. The length of time depends on the power level that a zone or zones have been set on. -
Page 19: Cleaning And Maintenance
Especially if pointed or hard objects are allowed to fall on it with some force. o DO NOT USE THE HOB IF THE SURFACE BECOMES BROKEN OR CRACKED. YOU SHOULD CONTACT THE BAUMATIC CUSTOMER CARE DEPARTMENT IMMEDIATELY. Cleaning and maintenance Cleaning operations must only be carried out when the hob is cool. -
Page 20: Cleaning Table
Cleaning table Type of deposit Remove Remove What should I immediately? when the use to remove appliance the deposit? has cooled down? Sugar or Ceramic hob food/liquid scraper containing sugar Tin foil or plastic Ceramic hob scraper Fat splashes Ceramic hob cleaner Metallic Ceramic hob... -
Page 21: Installation
Installation The installation must be carried out by a suitably qualified person, in accordance with the current version of the following. o UK Regulations and Safety Standards or their European Norm Replacements. o Building Regulations (issued by the Department of the Environment). -
Page 22: Installing Above A Built Under Oven
o IMPORTANT: Underneath the appliance there must be a partition made of insulating material (e.g. wood). There must be a gap of at least 50 mm between the underneath of the appliance and this partition. o You must make sure that there is a 5mm gap below the underneath of the worktop at the front edge of the hob. -
Page 23: Unpacking The Appliance
1 Baumatic hob 1 Ceramic hob scraper 1 Installation and instruction manual 1 Baumatic guarantee card 4 Fixing brackets 4 Fixing screws Installing the appliance o Cut a hole in the worktop that corresponds with the drawing shown above. - Page 24 o IMPORTANT: Do not use a silicon sealant to seal the appliance against the aperture. This will make it difficult to remove the hob from the aperture in future, particularly if it needs to be serviced. o Carefully turn the hob back over and then gently lower it into the aperture hole that you have cut out.
-
Page 25: Electrical Connection
Electrical connection This appliance must be installed by a qualified person in accordance with the latest edition of the I.E.E. Regulations and in compliance with Baumatic’s instructions. Before connecting the appliance, make sure that the supply voltage marked on the rating plate corresponds with your mains supply voltage. -
Page 26: Replacing The Mains Supply Cable
o The brass links must be positioned as shown in the photograph on the previous and once established ALL terminal screws must be tightened down firmly. o You should use a good quality screwdriver to carefully, fully tighten ALL of the terminal screws. o If when the hob is first switched on, only two of the zones work, you should recheck that the terminal screws are all fully tightened. -
Page 27: My Appliance Isn't Working Correctly
* IMPORTANT: If the cooking zone does appear to be hotter than 60°C and the residual heat indicator has not come on, you should call the Baumatic Customer Care Department. o A humming sound is heard when a cooking zone is selected. -
Page 28: Error Codes
o Only two of the zones on my hob are working * You should recheck that the terminal screws are all fully tightened between the links. Error codes The following error codes may appear in the timer display if there is a problem with the operation of the hob. - Page 29 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the...
-
