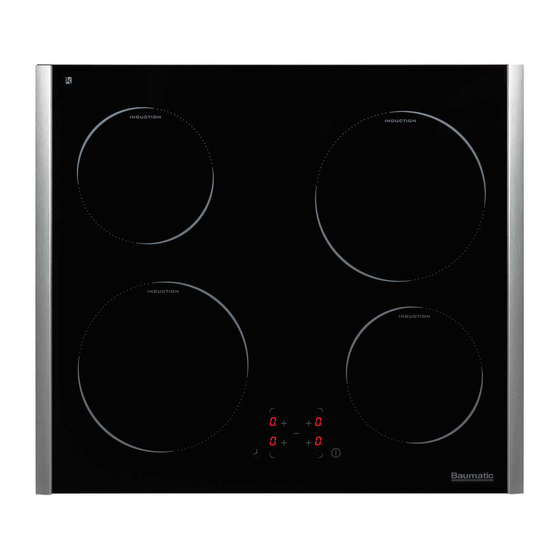

- Page 1 BHI631SS 60cm Front touch control induction zone hob...
- Page 2 User Manual for your Baumatic BHI631SS 60 cm Touch control induction zone hob NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 3: Table Of Contents
Contents Environmental note Important safety information 5 – 8 Specifications 9 – 11 Dimensions Electrical details Ceramic hob surface layout Control panel layout Using the ceramic hob 11 - 18 Before first use Touch controls Switching the hob on Switching on a zone and setting a power level Switching off a zone gradually Switching off a zone instantly 12 - 13... -
Page 4: Environmental Note
Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
You should not use this appliance to store items on or as a work surface. o No modifications to the appliance are permitted by Baumatic Ltd. o You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made from aluminium, plastic or plastic film should also be kept away from the appliance, as they may fuse to the surface. - Page 6 Child Safety o Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the appliance at any time. During and after use, all surfaces will be hot. o If it is necessary for younger family members to be in the kitchen, please ensure that they are kept under close supervision at all times.
- Page 7 If in doubt, you should consult the manufacturer of your device or your doctor. In this respect, Baumatic can only guarantee the conformity of our own product. o If an object made of metal, (e.g. saucepan lid, knife, fork or spoon) is placed on a cooking zone that is switched on, it can get hot.
- Page 8 Declaration of conformity This appliance complies with the following European Directives: -2006/95/CE General regulations / Low tension -1935/2004/CE 90/128/EEC This appliance is suitable to come in contact with food -2004/108/CE Electromagnetic compatibility o The manufacturer declares that the hob is built using certified materials requires appliance...
-
Page 9: Specifications
Specifications Product dimensions: Aperture dimensions: Depth: 510 mm Depth: 480 mm Width: 580 mm Width: 560 mm Height: 60 mm Height: 150 mm Product specifications: o 2 x 2.30 kW induction zone (Ø 200 mm) o 2 x 1.40 kW induction zone (Ø 160 mm) o Front touch control operation o Separate timer for each zone o Integrated pot detection... -
Page 10: Ceramic Hob Surface Layout
Max Rated Inputs: 7.40 kW Mains Supply Lead: 3 core x 6 mm² (not supplied) For future reference please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. The rating plate of your hob is located on the underneath of the appliance. -
Page 11: Control Panel Layout
Control panel layout A) ON / OFF button B) Cooking zone plus button C) Cooking zone minus button D) Timer button Using the ceramic hob Before first use IMPORTANT: You should clean the ceramic hob surface (see “Cleaning and maintenance” section). o You should switch on one cooking zone at a time for 5 minutes at the maximum setting. -
Page 12: Switching The Hob On
Switching the hob on o When the hob is connected to a power supply all of the cooking zone indicators will come on for 1 second and then go off. The hob has now entered stand-by mode. o Press the ON/OFF button (A). o All of the cooking zone indicators will come on. -
Page 13: Switching The Hob Off
o The zone will switch off immediately. o A flashing “H” symbol will show in the cooking zone indicator until the temperature of the zone falls below 60°C (see the section on the “residual heat indicator” for further information). Switching the hob off Once you have switched off all of the cooking zones, you should switch the hob off. -
Page 14: Cookware That Is Suitable For An Induction Hob
Cookware that is suitable for an induction hob The table below shows cookware that is normally suitable for use on an induction zone hob:- Cookware Suitable Steel, enamelled steel Cast iron Stainless steel Yes (if stated by the pan manufacturer) Aluminium, copper, brass Glass, ceramic, porcelain o The bottom of the pans should be as flat and thick as possible. -
Page 15: The Safety Lock
o The timer alarm can be activated when the cooking zones are switched off by using the plus and minus buttons. o You can set a count-down time between 1 – 99 minutes. An alarm will sound when this time is reached. Press any button to deactivate the alarm. -
Page 16: Safety Cut-Off
Safety cut-off o Based on the power level, each cooking zone is shut off after a maximum preset time if no operations are performed such as a change of power level. o In principle, the way induction works is intrinsically safe. The induction electronics provide temperature sensors at each cooking zone located below the glass ceramic surface to monitor the temperatures. -
Page 17: Hob Guidelines
o The cooling of the hob is integrated within the plastic housing of the inductor heat element. The operation of the fan is controlled by the temperature which is measured at the heat sink. o The fan switches on when a certain temperature is reached and switches to a higher speed when the second temperature limit is reached. -
Page 18: Cleaning And Maintenance
Especially if pointed or hard objects are allowed to fall on it with some force. o DO NOT USE THE HOB IF THE SURFACE BECOMES BROKEN OR CRACKED. YOU SHOULD CONTACT THE BAUMATIC CUSTOMER CARE DEPARTMENT IMMEDIATELY. Cleaning and maintenance Cleaning operations must only be carried out when the hob is cool. -
Page 19: Cleaning Table
Cleaning table Type of deposit Remove Remove What should I immediately? when the use to remove appliance the deposit? has cooled down? Sugar or Ceramic hob food/liquid scraper containing sugar Tin foil or plastic Ceramic hob scraper Fat splashes Ceramic hob cleaner Metallic Ceramic hob... -
Page 20: Installation
Installation The installation must be carried out by a suitably qualified person, in accordance with the current version of the following. o UK Regulations and Safety Standards or their European Norm Replacements. o Building Regulations (issued by the Department of the Environment). -
Page 21: Unpacking The Appliance
1 Baumatic hob 1 Ceramic hob scraper 1 Installation and instruction manual 1 Baumatic guarantee card 4 Fixing brackets 4 Fixing screws Installing the appliance o Cut a hole in the worktop that corresponds with the drawing shown above. - Page 22 o The heat produced by the oven, measured on the right side of the bottom of the hob, must be lower than 60°C, otherwise the heat could damage the touch control panel. o IMPORTANT: You must observe the ventilation requirements shown in the drawing below.
- Page 23 Sealing strip Clamp Screw o Place the clamp (B) over the holes that match the size of the screws. There are one set of screw holes in each corner of the hob. Slightly tighten a screw (C) through the clamp (B) so that the clamp is attached to the hob, but so that you can still adjust the position of it.
-
Page 24: Electrical Connection
Electrical connection This appliance must be installed by a qualified person in accordance with the latest edition of the I.E.E. Regulations and in compliance with Baumatic’s instructions. Before connecting the appliance, make sure that the supply voltage marked on the rating plate corresponds with your mains supply voltage. -
Page 25: Replacing The Mains Supply Cable
Baumatic Customer Care Department. o IMPORTANT: The appliance must NOT be connected to the mains supply by means of a 13A plug and socket. o The cable can be looped if necessary, but make sure that is not kinked or trapped when the hob is in position. -
Page 26: My Appliance Isn't Working Correctly
* IMPORTANT: If the cooking zone does appear to be hotter than 60°C and the residual heat indicator has not come on, you should call the Baumatic Customer Care Department. o A humming sound is heard when a cooking zone is selected. -
Page 27: Error Codes
Error codes The following error codes may appear in the timer display if there is a problem with the operation of the hob. Error Description Possible cause Solution code Overheating of the Cooling down induction coils. necessary. ER03 & Permanent use of Water or cooking Cleaning of permanent... - Page 28 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the...
-
Page 29: Contact Details
United Kingdom Baumatic Ltd., Czech Republic Baumatic Buildings, Baumatic CR s.r.o. 6 Bennet Road, Lípová 665 Reading, Berkshire 460 01 Liberec 4 RG2 0QX Czech Republic United Kingdom +420 483 577 200 Sales Telephone (0118) 933 6900 www.baumatic.cz Sales Fax...
