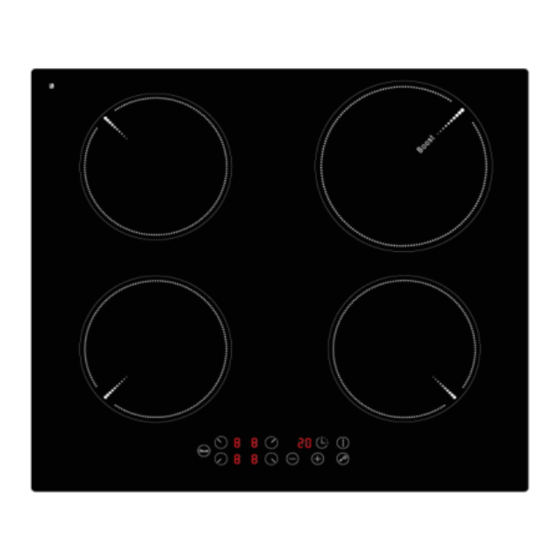

60cm front touch control induction zone hob
Hide thumbs Also See for BHI610:

Advertisement

Quick Links

BHI610 60cm Front
touch control
induction zone hob
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BHI610 and is the answer not in the manual?

Questions and answers

Summary of Contents for Baumatic BHI610

  • Page 1 BHI610 60cm Front touch control induction zone hob...
  • Page 2 User Manual for your Baumatic BHI610 60 cm Touch control induction zone hob NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
  • Page 3: Table Of Contents

    Contents Environmental note Important safety information Specifications Electrical details Ceramic hob surface layout Control panel layout Using the ceramic hob Before first use Touch controls Turning the hob on Turning on a zone and setting a power level Turning off a zone gradually Turning off a zone instantly Turning the hob off Residual heat indicator...
  • Page 4: Environmental Note

    Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment.
  • Page 5: Important Safety Information

    You should not use this appliance to store items on or as a work surface. o No modifications to the appliance are permitted by Baumatic Ltd. o You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made from aluminium, plastic or plastic film should also be kept away from the appliance, as they may fuse to the surface.
  • Page 6 Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and should not be allowed to touch the appliance at any time. o If it is necessary for younger family members to be in the kitchen, please ensure that they are kept under close supervision at all times.
  • Page 7 If in doubt, you should consult the manufacturer of your device or your Doctor. In this respect, Baumatic can only guarantee the conformity of our own product. o If an object made of metal, (e.g. saucepan lid, knife, fork or spoon) is placed on a cooking zone that is switched on, it can get hot.
  • Page 8: Declaration Of Conformity

    This appliance complies with the following European Directives: -73/23/EEC dated 19/02/1973 Low Voltage Directive. -89/336/EEC dated 03/05/1989 EMC Directive inclusive of Amending Directive 92/31/EEC. -93/68/EEC dated 22/07/1993 CE Marking Directive. -89/109/EEC dated 25/01/1992 Materials that can touch food. o The manufacturer declares that the hob is built using certified materials and requires the appliance to be installed in accordance with the standards currently in force.
  • Page 9: Specifications

    Specifications Product dimensions: Height: 520 mm Width: 590 mm Depth: 60 mm Product specifications: o 1 x 2.00 kW induction zone (diametre 180 mm) o 2 x 1.40 kW induction zone (diametre 180 mm) o 1 x 2.00 kW induction zone with booster option (diametre 210 o Front touch control operation o Timer o Auto pan detection...
  • Page 10: Ceramic Hob Surface Layout

    be found on the rating plate and the date of purchase which can be found on your sales invoice. The rating plate of your hob is located on the underneath of the appliance. Therefore it is a good idea to record this information before you install your appliance.
  • Page 11: Using The Ceramic Hob

    Using the ceramic hob Before first use IMPORTANT: You should clean the ceramic hob surface (see “Cleaning and maintenance” section). o You should switch on one cooking zone at a time, for 5 minutes at the maximum setting. This will help to eliminate any new smell that exists and evaporate any humidity that has formed on the heating elements during transit.
  • Page 12: Turning Off A Zone Gradually

    o IMPORTANT: WHEN MULTIPLE COOKING ZONES ARE BEING USED. IF THE POWER OUTPUT GOES ABOVE A CERTAIN LEVEL, THEN THE POWER OF PARTICULAR ZONES MAY BE REDUCED. THIS DOES NOT INDICATE THAT YOUR HOB IS FAULTY. Turning off a zone gradually o A flashing “H”...
  • Page 13: Turning Off A Zone Instantly

    o Press the plus and minus sections of the zone power level adjustment control simultaneously. o The zone will switch off immediately. o A flashing “H” symbol will show in the cooking zone indicator (2) until the temperature of the zone falls below 60°C (see the section on the “residual heat indicator”...
  • Page 14: Booster Function

    The back right zone has a booster function, when this function is selected, it increases the power output of that particular zone to 2600 watts. o Press the ON/OFF button (5) o The cooking zone indicators (2) will all read “-”. o Press the zone selection button (8) for the back right zone and set your desired power level using the zone power level adjustment control (3).
  • Page 15: Pan Sensor

    (2) after you have placed a pan on a cooking zone and selected it; this means that the pan is either the incorrect size or shape. Or it could be made from a material that is inappropriate for use on an induction zone hob. o If a cooking zone is selected but no pan is detected, the pan sensor system will check for the presence of a pan approximately every few seconds.
  • Page 16: Locking The Hob Top

    o The timer display will flash for 5 seconds, when it stops flashing, the time period will be set. Or you can press the timer button (6) again to confirm the time period. o An audible signal will sound to advise you that the countdown period has elapsed.
  • Page 17: Safety Cut-Off

    lock button (4) again. The “L0” symbol will disappear from the timer display (7) and you are then able to adjust the power of any zone on the hob top. Safety cut-off o If one or more of the cooking zones are accidentally left on, a safety cut off will activate after a certain period of time.
  • Page 18: Cleaning And Maintenance

    Especially if pointed or hard objects are allowed to fall on it with some force. o DO NOT USE THE HOB IF THE SURFACE BECOMES BROKEN OR CRACKED. YOU SHOULD CONTACT THE BAUMATIC SERVICE DEPARTMENT IMMEDIATELY. Cleaning and maintenance Cleaning operations must only be carried out when the hob is cool.
  • Page 19: After Each Use

    o Wipe the appliance over with a damp cloth and a little washing up liquid. o Dry the appliance by rubbing the surface with a clean cloth. Cleaning table Type of deposit Remove immediately? Sugar or food/liquid containing sugar Tin foil or plastic Fat splashes Metallic discolourations...
  • Page 20: Using A Specialist Ceramic Hob Cleaner

    It is possible to purchase specialist ceramic hob cleaner/conditioner. You should follow the instructions given by the manufacturer of the specialist ceramic hob cleaner. You should ensure that it is suitable for use on your appliance. Installation The installation must be carried out by a suitably qualified person, in accordance with the current version of the following.
  • Page 21: Unpacking The Appliance

    When unpacking the appliance please check that the following items are contained within the packaging:- 1 Baumatic hob 1 Ceramic hob scraper 1 Installation and instruction manual 1 Baumatic guarantee card 4 Fixing brackets 4 Fixing screws 1 Sealing strip Installing the appliance o Cut a hole in the worktop that corresponds with the drawing shown above.
  • Page 22 shown in the drawing above. o IMPORTANT: There are ventilation holes around the outside of the hob. YOU MUST ensure that these holes are not blocked by the work top, when you put the hob into position (see drawing opposite). o Carefully turn the hob upside down and place it on a cushioned mat.
  • Page 23: Electrical Connection

    Electrical connection This appliance must be installed by a qualified person in accordance with the latest edition of the I.E.E. Regulations and in compliance with Baumatic’s instructions. Before connecting the appliance, make sure that the supply voltage marked on the rating plate corresponds with your mains supply voltage.
  • Page 24: Connecting The Mains Supply Cable

    located in its operating position. o Cable type: H05 RRF 3 core x 6 mm² Connecting the mains supply cable o The mains terminal block is located on the underside of the hob and the terminals are accessible by removing the terminal block cover by removing the cover screw.
  • Page 25: Replacing The Mains Supply Cable

    This should be done before contacting the Baumatic Service Department. o IMPORTANT: The appliance must NOT be connected to the mains supply by means of a 13A plug and socket.
  • Page 26: My Appliance Isn't Working Correctly

    * IMPORTANT: If the cooking zone does appear to be hotter than 60°C and the residual heat indicator has not come on, you should call the Baumatic Service Department. o A humming sound is heard when a cooking zone is selected.
  • Page 27: Error Codes

    Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.
  • Page 28: Contact Details

    Technical Advice Telephone (0118) 933 6933 E-mail: sales@baumatic.co.uk technical@baumatic.co.uk Website: www.baumatic.co.uk Republic of Ireland 01- 6266 798 Baumatic CR spol s.r.o. Amperova 495 46215, Librec Czech Republic +420 800 185 263 www.baumatic.cz Slovak Republic Baumatic Slovakia, s.r.o. Skultetyho 1 831 04 Bratislava 3...
