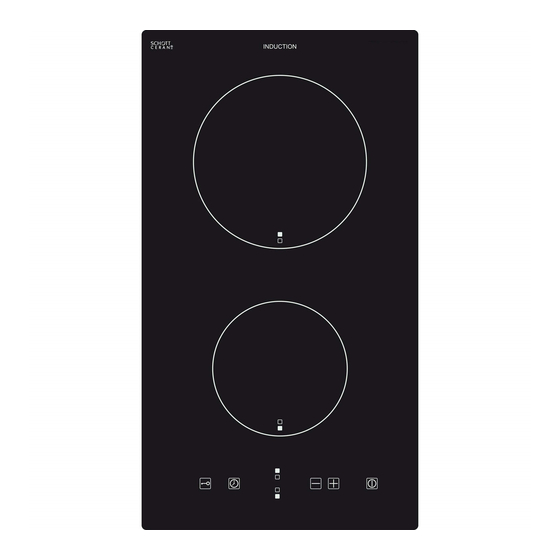

- Page 1 BHI300 Domino touch control induction zone...
- Page 2 User Manual for your Baumatic BHI300 30 cm 2 induction zone domino NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 3: Table Of Contents
Installation 24 - 28 Positioning Unpacking the appliance Installing the appliance 25 – 27 Electrical connection Replacing the mains supply cable My appliance isn’t working correctly 29 – 31 Error codes General troubleshooting 29 – 31 Baumatic consumables Contact details... -
Page 4: Environmental Note
Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
You should not use this appliance to store items on or as a work surface. o No modifications to the appliance are permitted by Baumatic Ltd. o You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made from aluminium, plastic or plastic film should also be kept away from the appliance, as they may fuse to the surface. - Page 6 Child Safety o Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and should not be allowed to touch the appliance at any time. o If it is necessary for younger family members to be in the kitchen, please ensure that they are kept under close supervision at all times.
- Page 7 If in doubt, you should consult the manufacturer of your device or your Doctor. In this respect, Baumatic can only guarantee the conformity of our own product. o If an object made of metal, (e.g. saucepan lid, knife, fork or spoon) is placed on a cooking zone that is switched on, it can get hot.
- Page 8 Declaration of conformity This appliance complies with the following European Directives: -73/23/EEC dated 19/02/1973 Low Voltage Directive. -89/336/EEC dated 03/05/1989 Directive inclusive Amending Directive 92/31/EEC. -93/68/EEC dated 22/07/1993 CE Marking Directive. -89/109/EEC dated 25/01/1992 Materials that can touch food. o The manufacturer declares that the hob is built using certified materials requires appliance...
-
Page 9: Specifications
Specifications Product dimensions Depth: 520 mm Width: 288 mm Height: 56 mm Aperture dimensions Depth: 505 mm Width: 273 mm Height: 150 mm Product specifications: o 1 x 2.00 kW induction zone o 1 x 1.50 kW induction zone o Front touch control operation o Automatic safety cut-off o Residual heat indicator o Timer... -
Page 10: Electrical Details
Electrical details Rated Voltage: 220 - 240 Vac 50 Hz Supply Connection: 20 A (double pole switched fused outlet with 3mm contact gap) Max Rated Inputs: 3.50 kW Mains Supply Lead: 3 core x 1.5 mm² For future reference please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. -
Page 11: Control Panel Layout
Control panel layout ON/OFF button Power / timer plus and minus buttons Heating zone selection buttons Timer button Safety lock button Using the ceramic hob Before first use IMPORTANT: You should clean the ceramic hob surface (see “Cleaning and maintenance” section). o You should switch on one cooking zone at a time, for 5 minutes at the maximum setting. -
Page 12: Induction Cooking
them. Even a thin film of water can make the control difficult to operate. o Use the ball of your finger to press a control, not the tip. Induction cooking o Induction cooking is a safe, advanced, efficient and economical cooking technology. -
Page 13: Power Level Settings
o Place a suitable pan on the cooking zone that you wish to use. Make sure that the bottom of the pan and the surface of the cooking zone are clean and dry. o Press relevant heating zone selection button (3) and an indicator next to the key will flash. -
Page 14: Turning Off The Induction Zone After Cooking
Power Suggested use setting o Delicate warming for small amounts of food. o Melting chocolate, butter and foods that burn 1 – 2 quickly. o Gentle simmering. o Slow warming. 3 – 4 o Reheating. o Rapid simmering. o Cooking rice. 5 –... -
Page 15: Residual Heat Indicator
Residual heat indicator o After a zone is switched off, the display will show the letter “H”. This means that the temperature of the indicated zone is still high enough to cause injury. o When the temperature falls to a safe temperature, then the letter “H”... -
Page 16: Setting The Timer To Turn One Cooking Zone Off
o Press the plus or minus button once to increase or decrease by 1 minute. Hold the plus or minus button down to increase or decrease by 10 minutes. o If the setting time exceeds 99 minutes, the timer display will automatically return to 00 minutes. -
Page 17: High Temperature Protection
o By pressing the plus or minus button once, the time will increase or decrease by 1 minute. Hold the plus or minus button down to increase or decrease the time by 10 minutes. o If the set time exceeds 99 minutes, the display will automatically return to 00 minutes. -
Page 18: Automatic Safety Cut-Off
Automatic safety cut-off o The automatic safety cut-off is activated when a cooking zone has been left on longer than the maximum default working time. This is a safety function in the event of the hob being left on accidentally. o The default working times for the various power levels are shown in the table below. -
Page 19: Cooking Tips
o Use pans with a diameter as large as the zone selected. By using a slightly wider pot, energy will be used at its maximum efficiency. If you use a smaller pot, the efficiency of the hob could be less than expected. o Pots that are less than 140 mm in diameter could be undetected by the hob. - Page 20 o You should also cook egg-based and flour-thickened sauces below boiling point. o Some tasks, including cooking rice by the absorption method, may require a slightly higher power setting to ensure the food is cooked properly in the recommended time. Searing steak o To cook juicy and flavoursome steaks, you should stand the meat at room temperature for about 20 minutes before cooking.
-
Page 21: Hob Guidelines
Hob guidelines o The first few times the hob top is used, it may give off an acrid, burning smell. This smell will disappear completely with repeated use. o The hob surface is fitted with cooking areas of different diameter and power. -
Page 22: Cleaning And Maintenance
DO NOT USE THE HOB IF THE SURFACE BECOMES BROKEN OR CRACKED. YOU SHOULD CONTACT THE BAUMATIC SERVICE DEPARTMENT IMMEDIATELY. Cleaning and maintenance Cleaning operations must only be carried out when the oven is cool. The appliance should be disconnected from your mains supply before commencing any cleaning process. -
Page 23: Using A Ceramic Hob Scraper
discolorations cleaner Water splashes or Ceramic hob water rings cleaner Using a ceramic hob scraper Your appliance will be provided with a scraper. The following guidelines should also be followed when using the ceramic hob scraper:- o The scraper should be placed on the ceramic surface at an angle. o Residues should be removed by sliding the blade carefully over the ceramic surface. -
Page 24: Installation
Unpacking the appliance When unpacking the appliance please check that the following items are contained within the packaging: 1 Baumatic hob 1 Ceramic hob scraper 1 Installation and instruction manual 1 Baumatic guarantee card 4 Fixing brackets 4 Fixing screws... -
Page 25: Installing The Appliance
Installing the appliance o Cut a hole in the worktop that corresponds with the drawing shown above. o IMPORTANT: You must observe ventilation requirements shown in the drawing opposite. - Page 26 o IMPORTANT: There ventilation holes around the outside of the hob. YOU MUST ensure that these holes are not blocked by the work top, when you put the hob into position (see drawing opposite). o Carefully turn the hob upside down and place it on a cushioned mat.
-
Page 27: Electrical Connection
o Fasten the bracket to the position on the hob with a screw. Adjust the bracket position to suit different table top thicknesses. o Place the long screw into the fixing hole on the outer edge of the bracket but do not fully tighten. o Carefully turn the hob back over and then gently lower it into the aperture hole that you have cut out. -
Page 28: Replacing The Mains Supply Cable
Replacing the mains supply cable If the mains supply cable is damaged, then it must be replaced by an appropriate replacement. The mains supply cable should be replaced in accordance with the following instructions: o Switch the appliance off at the control switch. o Open the terminal block on the underside of the hob. -
Page 29: My Appliance Isn't Working Correctly
My appliance isn’t working correctly Error codes If you appliance senses an abnormality, the hob will enter stand-by mode and will display a corresponding error code. Error Possible causes What to do code F3 – F8 Temperature sensor Contact the Customer Care failure. - Page 30 cookware (layer of indicate a fault. different metals vibrating differently). The induction hob makes a This is caused by the This is normal, but the low humming noise when technology of induction noise should quieten used on a high heat setting. cooking.
- Page 31 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the...
-
Page 32: Baumatic Consumables
BC005 Stainless Steel Cleaner and Protector (250 ml) o BC007 E-Cloth – General Purpose Cloth o BC008 Microwave Cover To order a Baumatic consumable product please call 0123 5437 244 and quote the product code. You can also order online from eshop.baumatic.co.uk... -
Page 33: Contact Details
United Kingdom Czech Republic Baumatic Ltd., Baumatic CR spol s.r.o. Baumatic Buildings, Lìpovà 665 6 Bennet Road, 460 01 Liberec 4 Reading, Berkshire Czech Republic RG2 0QX United Kingdom +420 483 577 200 Sales Telephone www.baumatic.cz (0118) 933 6900 Sales Fax...
