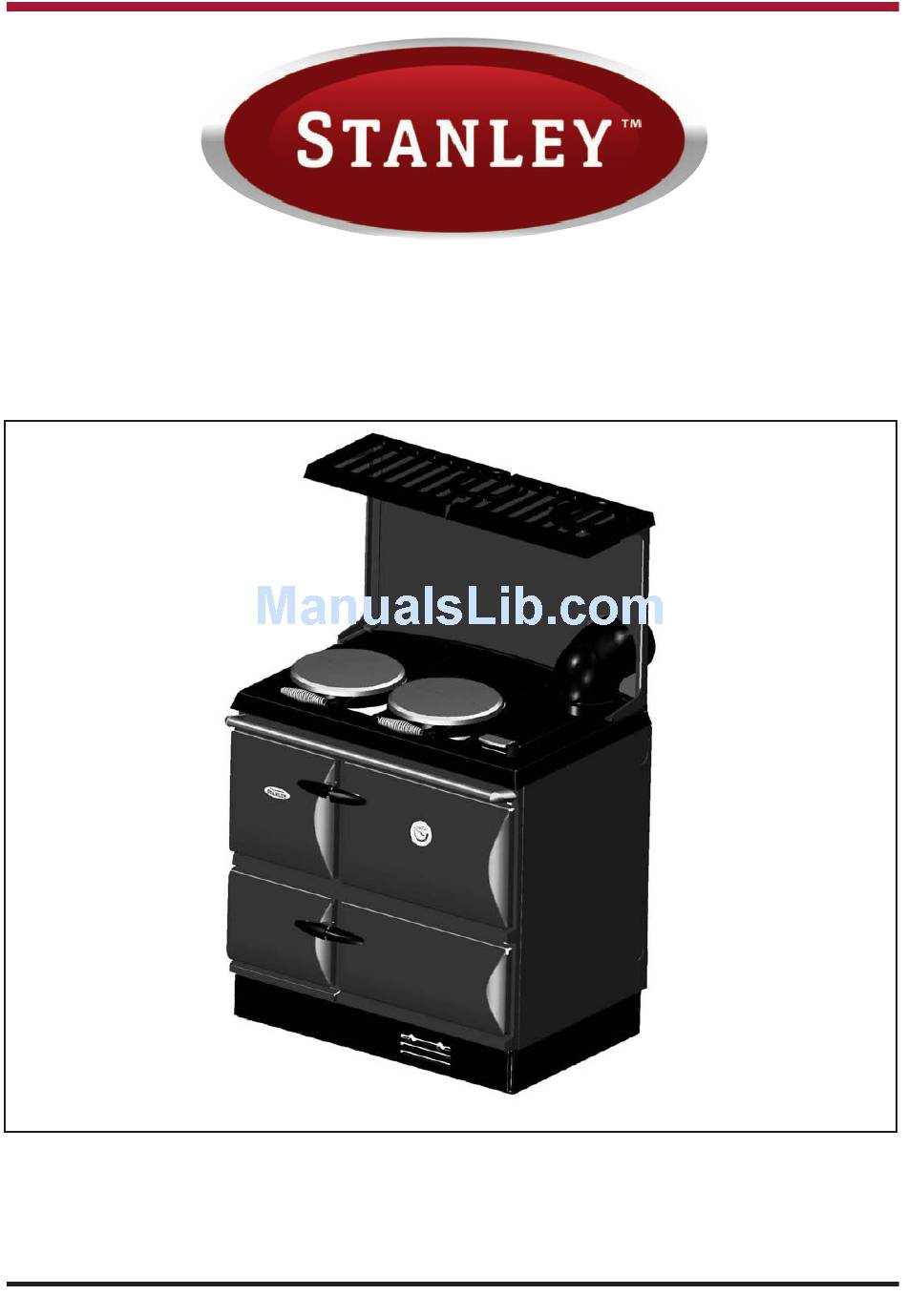

- Page 1 BRANDON 60K/80K/100K OIL FIRED COOKER TO BE INSTALLED BY A TRAINED COMPETENT PERSON Installation and Commissioning Instructions This Manual is to be left with end user.
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE NO. Introduction ............3 Specification . - Page 3 PAGE NO. Wiring Diagram 100K/80K/60K ......... . . 20 S Plan Wiring Diagram Using Multi Timer .
-
Page 4: Introduction
The complete installation must be done in accordance with current Standards and Local Codes. It should be noted that the requirements and these publications may be superseded during the life of this manual. IMPORTANT NOTICE: Any alteration to this appliance that is not approved in writing by Waterford Stanley will render the guarantee void. -
Page 5: Specification
SPECIFICATION Fig. 1 Note: Dimensions stated in Fig.1 are in millimetres unless otherwise stated and may be subject to a slight +/- variation. FEATURE METRIC (mm) Hot Plate 550W x 323L Roasting Oven 390W x 310H x 406D Simmering Oven: 390W x 220H x 406D... -
Page 6: Technical Data
TECHNICAL DATA FUEL: 28 Sec Kerosene MAX BOILER WORKING MAINS CURRENT: 230v - 240v, 50 Hz A.C. PRESSURE: 1.9 bar 27.3 P.S.I. I.P. PROTECTION: IP 20 TEST PRESSURE OF ELECTRICAL INPUT: 90 Watts BOILER: 3 bar 43.5 P.S.I SUPPLY FUSE RATING:3A OPERATING TEMPERATURE LIMIT IN BOILER: C (205... -
Page 7: Burner Specification
THIS APPLIANCE MUST BE CONNECTED TO A FULLY PUMPED SYSTEM. BURNER SPECIFICATION BOILER BURNER COOKER BURNER 100K 100K/80K/60K Burner Input (kW) Continuous Running 34.2 27.7 21.4 19.5 (kW) Cycling (Btu’s) Continuous Running 116,760 94,600 73,000 66,875 (Btu’s) Cycling 14,950 Boiler Output (kW) Continuous Running 29.3 23.5... -
Page 8: Regulations
REGULATIONS The installation must comply with the current editions of the following: BS 5410: Oil Installations Part 1 under 45kW. The Building Regulations: Part J England, Wales, Part F Section 4 Scotland, Part L Northern Ireland and Part J Ireland. The Control of Pollution (Oil) Regulations. -
Page 9: Location
225mm and adjacent units, this gap can be reduced by (9 inches) to the front. fitting an optional hob side filler strip to the Stanley ELECTRICAL SUPPLY leaving a 5mm gap (see fig. 4 & 5). Likewise the... -
Page 10: Flue Systems
150mm (6”) Diameter Flue Liner of the factory made chimney. (See Fig.6) (You should discuss the installation of your Stanley cooker with your builder in this regard in the case of Fig. 8. -
Page 11: Sealing
Fig.10 Flue greater than 150mm Bend Gasket Cleaning (6”) Diameter Cover Approved Fig. 9 Flue Terminal Gasket Collar Clay Liner Vermiculite Filler Fig.10a 150mm (6”) Flexible Flue Liner Pipe Sealing & Clamping Plate Spigot Gasket Seal Flue Collar Connector Refer to Flue Assembly Instruction sheets Fig.11 SEALING This cooker and flue system operate under a... -
Page 12: Flue Height
STANLEY CAST IRON PIPES AND BENDS ARE FLUE HEIGHT HIGHLY RECOMMENDED FOR INTERIOR USE. The flue must be high enough 4.5 mts (15ft) WHERE THE APPLIANCE SPIGOT OR FLUE minimum measured vertically from the appliance PIPE PROTRUDES INTO THE CHIMNEY, CARE... -
Page 13: Draught Requirements
This void should have a depth of not less than 2. The air supply to this appliance must comply 250mm (10”) below the appliance connection. with BS 5410 Part 1. The combustion products will have a descaling 3. The minimum effective air requirement for this effect on hardened soot deposits left from burning appliance is 215 cm (100K), 193 cm... -
Page 14: Outside Air Connection
12. Where such an installation exists, a test for Fig.13 spillage should be made with the fan or fans and other burning appliances in operation at full rate (i.e. extraction fans, tumble dryers) with all external doors and windows closed. 13. -
Page 15: Down Draughts
DOWN DRAUGHTS WATER PIPE SIZE However well designed, constructed and positioned, The flow and return pipe must be 28mm diameter. the satisfactory performance of the flue can be Care should be taken to ensure that the heating adversely affected by down draught caused by system is correctly installed and that it complies with nearby hills, adjacent tall buildings or trees. -
Page 16: Draining
In the event that the cooker is not serviced by such INTERNAL PUMP THERMOSTAT an engineer, at least once a year, Waterford Stanley This appliance has the capability for switching the Limited regrets that it can entertain no claims circulating pump ‘on’... -
Page 17: General Maintenance
GENERAL MAINTENANCE It is important that the user is familiar with their heating system and that they ensure regular checks and maintenance which can limit unnecessary break-downs. If in doubt, the user should consult an appropriately qualified person such as a plumber or heating engineer. -
Page 18: Open System (With Pump On Return)
The following diagrams illustrate the different types of central heating systems to which this appliance can be connected, but are not to be used as working drawings. OPEN SYSTEM WITH PUMP ON RETURN Fig. 19 SEALED SYSTEM WITH PUMP ON FLOW Fig. -
Page 19: Open System (With Pump On Flow)
OPEN SYSTEM WITH PUMP ON FLOW Fig.21 INTERLINK SYSTEM Fig. 22... -
Page 20: Provision For Filling Sealed System
S PLAN SYSTEM PROVISION FOR FILLING SEALED SYSTEM Fig.24 Fig.23 COLD FEED PIPE & OPEN VENT PIPE NOT MORE THAN 150mm (6”) APART Y - PLAN WIRING DIAGRAM Fig.25 Note: If wires are a different colour MAINS code, please refer to the It is essential that the interstat can bring on the motorised valves directly as shown, failure to observe manufacturers instructions. -
Page 22: S Plan Wiring Diagram Using Multi Timer
GREY GREY... -
Page 23: S Plan Wiring Diagram Using Same Timer
4 ZONE HEATING SYSTEM Under no circumstances can other supply 4 ZONE HEATING SYSTEM sources be connected directly to the cooker. When connecting the a Brandon cooker to a 4 - zoned heating system (i.e. separate time switches and thermostats for domestic hot water and four central heating zones), the domestic hot water and one zone must be controlled directly from the cooker enabling the inter thermostat to... -
Page 25: Fuel Installation
FUEL INSTALLATION OIL STORAGE TANKS Jointing materials must be of types intended for use with oil fuel. Special petroleum - resisting Oil storage tanks made of steel and all connecting compounds and PTFE tape are suitable. External equipment (eg: filling pipes and vent pipes) should pipes should preferably be run with a continuous comply with B.S. -
Page 26: Single Pipe Supply System
Fig.30 Fig.33 Fig.31 SINGLE PIPE SYSTEM: WITH DE-AERATION DEVICE BOTTOM OF OIL STORAGE TANK BELOW OR LEVEL WITH BURNER. (see fig. 34): This system can be used where the tank base is SINGLE PIPE SUPPLY SYSTEM: below the level at which gravity feed to the burner BOTTOM OF OIL STORAGE TANK ABOVE can be maintained and the burner incorporates an BURNER... -
Page 27: Installation Check List
Fig. 34 Fig. 35 4 Meters Max. INSTALLATION CHECK LIST 1. Check all items from packaging are removed by turning off room thermostats, time switches from ovens and the shelves are properly fitted. and temporarily linking terminals 6 & 9. This should bring on a motorised valve which will 2. - Page 28 Fig. 36 Boiler Cooker Setting Setting 11.5 11.8 10.34 11.9 10.8 12.2 11.2 Fig.39 Fig.37 Fig.40 14. Re-instate fuel supply and switch on the burners to ensure that they fire correctly. 15. After the appliance has achieved its operating temperature, with each burner running, carry out a flue gas analysis for each burner.
-
Page 29: Removal Of Transport Screws
(See Fig.41). This booklet has been prepared by Waterford Fig.41 Stanley Limited to set out the correct method to be adopted in installing a Stanley Cooker. If the cooker is not installed fully in compliance with... -
Page 30: Door Handle Replacement Instructions
DOOR HANDLE REPLACEMENT INSTRUCTIONS Tools required * Small Philips head screw driver * 2 mm allen key * Flat head screwdriver. Step 1 Remove the 2 round head screws and the retaining clip on the back of the door while ensuring the spring behind does not spring out. - Page 31 Step 3 From the front face loosen the grub screw on the underside of the latch using the 2mm allen key. See Fig.D. Fig.D Grub Screw Step 4 Using a small flat head screwdriver remove the circlip from the end of the door handle axle. See Fig.E & F. Fig.F Fig.E Circlip...
-
Page 32: Installation Check List
A suitable flue terminal should be fitted at the flue termination point. The flue should be capable of producing a continuous draught of between 0.04” to 0.06” w.g. Use of a Stanley Fan Flue The flue terminal should be positioned to adhere to the minimum clearances to external obstructions as described in the Position of Fan Flue Terminals for Oil Fired Cookers on the Brandon Fan Flue manual. -
Page 33: Spares Parts List
BRANDON MK3 OIL 100K/80K/60K - PARTS & BOM CODES Cooker Burner - D00003BXX Screw Cover - V00512AXX Oil Burner Carrier Plate - Q00210AXX Towel Rail Bung - V00522AXX Boiler Burner 100K - D00004BXX Stay Rod - V00563AXX Boiler Burner 80K - D00002AXX Steam Vent - W00904AXX... -
Page 34: Exploded View
BRANDON OIL MK3 EXPLODED VIEW... - Page 36 Manufactured by Waterford Stanley Ltd., Unit 401-403, IDA Industrial Estate, Cork Road, Waterford, Ireland. Tel: (051) 302300 Fax (051) 302315 www.waterfordstanley.com N00334AXX DP131025 Rev 009...
