SAFETY INSTRUCTIONS ................................................................................................ i
SYSTEM CONFIGURATION .......................................................................................... iii
EQUIPMENT LIST .......................................................................................................... iv
1.
HOW TO INSTALL THE SYSTEM .......................................................................... 1
1.1 Control Unit FS-2575C ..................................................................................................1
1.4 Handset HS-2003 ..........................................................................................................6
1.5 Antenna .........................................................................................................................7
1.6 How to Install Optional Equipment ................................................................................8
2.
WIRING ................................................................................................................... 15
2.1 Antenna Coupler..........................................................................................................18
2.2 Transceiver Unit ..........................................................................................................22
2.3 Control Unit..................................................................................................................25
2.4 External Equipment .....................................................................................................25
2.5 AC-DC Power Supply Unit PR-300/PR-850A (option).................................................28
2.6 Automatic Antenna Switch AS-102 (option) ................................................................31
3.
INITIAL SETTINGS ................................................................................................. 32
3.1 How to Initialize the Control Unit and Transceiver Unit ...............................................32
3.2 How to Enter MMSI .....................................................................................................32
3.3 Performance Check.....................................................................................................33
3.4 System Setup ..............................................................................................................34
3.5 Alarm Contact Signal...................................................................................................44
3.6 I/O Data .......................................................................................................................44
JIS CABLE GUIDE ....................................................................................................AP-1
PACKING LIST ............................................................................................................ A-1
OUTLINE DRAWINGS ................................................................................................ D-1
INTERCONNECTION DIAGRAM ................................................................................ S-1
All brand and product names are trademarks, registered trademarks or service marks of their respective holders.
Installation Manual

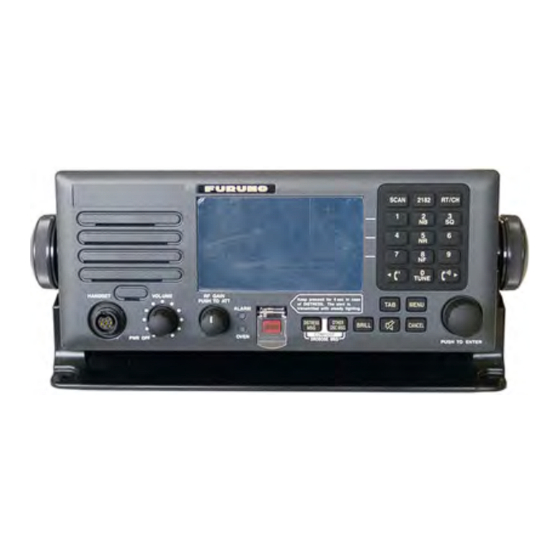

SSB RADIOTELEPHONE
FS-1575/2575/5075
www.furuno.com

Advertisement

   Also See for Furuno FS-1575

Furuno FS-1575 Service Manual
Furuno FS-1575 Service Manual 609 pages
Furuno FS-1575 Operator's Manual
Furuno FS-1575 Operator's Manual 191 pages
Furuno FS-1575 Installation Manual
Furuno FS-1575 Installation Manual 87 pages

   Related Manuals for Furuno FS-1575

   Summary of Contents for Furuno FS-1575

  • Page 1

    HOW TO INSTALL THE SYSTEM ................1 1.1 Control Unit FS-2575C ....................1 1.2 Antenna Coupler AT-1575 (FS-1575), AT-5075 (FS-2575, FS-5075)......3 1.3 Transceiver Unit FS-1575T (FS-1575), FS-2575T (FS-2575), FS-5075T (FS-5075)..6 1.4 Handset HS-2003 ......................6 1.5 Antenna .........................7 1.6 How to Install Optional Equipment ................8 WIRING ........................

  • Page 2

    Nishinomiya, 662-8580, JAPAN A : JUL 2011 Printed in Japan All rights reserved. E1 : JUN . 14, 2012 Pub. No. IME-56770-E1 *00017516914* *00017516914* (REFU ) FS-1575/2575/5075 *00017516914* *00017516914* * 0 0 0 1 7 5 1 6 9 1 4 *...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS The installer must read the safety instructions before attempting to install the equipment. Indicates a potentially hazardous situation which, if not avoided, DANGER will result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, WARNING could result in death or serious injury.

  • Page 4

    SAFETY INSTRUCTIONS CAUTION NOTICE Follow the compass safe distances to prevent Confirm that the power supply interference to a magnetic compass. voltage is compatible with the voltage rating of the equipment. Standard Steering Unit Compass Compass Connection to the wrong power supply can cause fire or damage FS-1575T 2.30 m...

  • Page 5: System Configuration

    SYSTEM CONFIGURATION For DSC routine frequency AUTOMATIC ANTENNA watch keeping receiver SWITCH AS-102 RX antenna ANTENNA COUPLER AT-1575 (FS-1575) or PREAMP PREAMP ANT. JUNC. BOX AJB1-1A or AT-5075 (FS-2575, FS-5075) FAX-5 MATCHING BOX ARD-1 FAX-5 BK INTERFACE 2.6 m whip...

  • Page 6: Optional Equipment

    EQUIPMENT LIST Standard Supply Name Type Code No. Remarks Transceiver FS-1575T For FS-1575 Unit FS-2575T For FS-2575 FS-5075T For FS-5075 Control Unit FS-2575C Antenna AT-1575 For FS-1575 Coupler AT-5075 For FS-2575/5075 Installation CP05-12100 000-019-245 For FS-2575C, no cable, with inst. mat.

  • Page 7

    For NBDP, no bracket Preamp FAX-5 *15M* 000-011-702 w/15 m cable FAX-5 *1M* 000-011-703 w/1 m cable AC-DC Power PR-300 000-015-941-10 For FS-1575 Supply Unit PR-850A 000-057-233 For FS-2575/5075 Matching Box ARD-1 005-502-230 For matching, w/resistor Antenna Junction AJB1-1A 000-870-284...

  • Page 8

    25 m E-22 000-050-632 E-24 000-050-634 E-25 000-050-635 E-26 000-050-636 E-27 000-050-637 Wire Rope Assy. TM-173-D4 L1520Y8 000-176-211-10 For FS-1575 TM-173-D4 L1670Y8 000-175-179-10 For FS-2575 TM-173-D4 L1800Y8 000-175-178-10 For FS-5075 Coaxial Cable RG-10/U-Y 000-159-411-10 10 m 000-159-412-10 20 m 000-159-413-10...

  • Page 9: How To Install The System, Control Unit Fs-2575c

    HOW TO INSTALL THE SYSTEM Control Unit FS-2575C 1.1.1 Installation location • The location must not be near water, rain and water splash. • Make sure the location is strong enough to hold the unit under the conditions of continued vibration and shock normally found on the boat.

  • Page 10

    1. HOW TO INSTALL THE SYSTEM 1.1.3 How to install the unit in a console (flush mount) The flush mount kit is required to install the Control Unit in a console. Type: OP05-122, Code No.: 001-135-600 Name Type Code No. Mounting metal 05-089-1171-0 100-299-020...

  • Page 11: Antenna Coupler At-1575 (fs-1575), At-5075 (fs-2575, Fs-5075)

    1. HOW TO INSTALL THE SYSTEM Antenna Coupler AT-1575 (FS-1575), AT-5075 (FS-2575, FS-5075) The Antenna Coupler is installed between the antenna and the Transceiver Unit, and tunes the antenna to the transmitter. The coupler must have a correct ground to function properly. The ra- diotelephone cannot provide its intended performance unless the ground is proper.

  • Page 12

    1. HOW TO INSTALL THE SYSTEM Outdoor installation • The coupler is water-jetsproof, but is not designed to take a continual soaking. If necessary, cover the top and sides with a wooden housing (or similar enclosure) or by sealing any opening in the top or sides with silicone sealant.

  • Page 13: Installation Procedure

    1. HOW TO INSTALL THE SYSTEM 1.2.3 Installation procedure Outdoor installation Fasten the Antenna Coupler to a bulkhead of the bridge, mast, handrail, etc., with the M6 bolts (local supply). For installation on the mast, see section 1.5 to select a location. Weld suitable mounting fixtures (local supply) to the mast and bolt the coupler there.

  • Page 14: Transceiver Unit Fs-1575t (fs-1575), Fs-2575t (fs-2575), Fs-5075t (fs-5075), Handset Hs-2003, Handset Hs

    1. HOW TO INSTALL THE SYSTEM Transceiver Unit FS-1575T (FS-1575), FS-2575T (FS-2575), FS-5075T (FS-5075) Select a location that meets these conditions: • Install only on a bulkhead. • Select a location which provides good ventilation. • The location must be clean and dry.

  • Page 15: Antenna

    • Insulate the down lead from the base of the antenna to the coupler. Run as vertically as possible and not less than 45 degrees towards the horizontal plane. • For indoor installation, use a lead-in insulator (FURUNO type: YA-256) to make the connection. If necessary, use a high quality antenna switch and stand-off insulator.

  • Page 16: How To Install Optional Equipment

    1. HOW TO INSTALL THE SYSTEM How to Install Optional Equipment 1.6.1 Preamp Unit FAX-5 The preamp unit can be mounted two ways: screwed on to a mast or fixed to a mast, using stain- less steel hose clamps (optional supply). The mast should not be longer than 1.5 m (5 feet) to pre- vent undue flexing in heavy winds.

  • Page 17

    1. HOW TO INSTALL THE SYSTEM 1.6.5 AC-DC Power Supply PR-850A, PR-300 Select a location that satisfies the following conditions: • The location provides good ventilation. • The location is clean and dry. • Make sure the location is strong enough to support the unit under the conditions of continued vibration and shock normally encountered on the boat.

  • Page 18

    1. HOW TO INSTALL THE SYSTEM 1.6.7 Automatic Antenna Switch AS-102 The AS-102 allows you to connect the an- Fixing hole (4 pcs.) tenna to ground remotely when there is a Fasten unit with four possibility of lightning, or the antenna must self-tapping screws (5x20, supplied).

  • Page 19

    1. HOW TO INSTALL THE SYSTEM 3. Fasten the WR2 Board with four screws (supplied) at the location shown below. Fasten WR2 Board here. 4. Make the following connections between the WR2 Board / ANT WR2 / RX-FIL Board, with the Mini-pin assy.

  • Page 20

    1. HOW TO INSTALL THE SYSTEM 1.6.9 DUP-FIL Board (FS-5075 only) The DUP-FIL Board (05P0863) installs above the RX-FIL Board (05P0862) and gives the FS-5075 full duplex capability. Parts Name: Full Duplex Kit, Type No. OP05-125, Code No. 001-135-630 Name Type Code No.

  • Page 21

    1. HOW TO INSTALL THE SYSTEM 1.6.10 Waterproofing kit for the Control Unit The waterproofing kit OP-126 (Code No. 001-148-880) protects the connectors and jacks on the control unit from water ingress, to waterproofing standard IP22. Name Type Code No. DSUB gasket 05-106-5571-1 100-365-871-10...

  • Page 22

    1. HOW TO INSTALL THE SYSTEM How to protect connector, speaker jack in use CONNECTOR IN USE SPEAKER JACK IN USE 1) Pass the cable through 1) Pass the cable through the DSUB clamping the SPJACK clamping plate. plate. Note the orientation of the SPJACK clamping straight edge on the clamp-...

  • Page 23: Wiring

    Many of the cables mentioned are JIS (Japan Industry Standard) cables. If not available locally, use the equivalent. See the cable guide in the Appendix for how to select equivalent cables. FS-1575 TX/RX ANTENNA or TX ANTENNA...

  • Page 24

    2. WIRING FS-2575 TX/RX ANTENNA or TX ANTENNA PREAMP AUTOMATIC ANTENNA FAX-5 SWITCH AS-102 RX ANTENNA 3D-2V RG-10/U-Y MATCHING BOX ARD-1 or ANT. JUNC. BOX AJB1-1A NBDP TERMINAL PRINTER IB-583 or IB-585 ANTENNA COUPLER 05S9351 INTERFACE IF-8500 AT-5075 G84-4100PPAUS Prt Sc Scroll Pause Lock...

  • Page 25

    2. WIRING FS-5075 TX/RX ANTENNA or TX ANTENNA PREAMP AUTOMATIC ANTENNA FAX-5 SWITCH AS-102 RX ANTENNA 3D-2V RG-10/U-Y MATCHING BOX ARD-1 or ANT. JUNC. BOX AJB1-1A NBDP TERMINAL PRINTER IB-583 or IB-585 ANTENNA COUPLER 05S9351 I/F KIT IF-8500 AT-5075 G84-4100PPAUS Prt Sc Scroll Pause...

  • Page 26: Antenna Coupler

    2. WIRING Antenna Coupler Note: The T/R antenna is automatically connected to ground when the power is turned off. 2.1.1 General connections Three cables connect to the Antenna Coupler: the signal cable (7-core cable (05S0952) or 5P ca- ble (05S0793)), coaxial cable from the Transceiver Unit, and the antenna wire. For the connection of the antenna wire, use an insulator so as not to put stress on the connector at the insulator of the Antenna Coupler.

  • Page 27

    2. WIRING 4. Connect the signal cable and the coaxial cable as shown below. Connect shield* to “E” terminal. COAXIAL SIGNAL CABLE CABLE** (See section 2.2.4 for how to fabricate.) * How to process the shield: ** How to fabricate Crimp-on the coaxial cable: Vinyl wire...

  • Page 28

    2. WIRING Connect shield* to “E” terminal. Locking wire saddle SIGNAL CABLE (See section 2.2.4 for how to fabricate.) Be sure cable does not See exploded view touch resistors. below. COAXIAL CABLE** Crimp-on Vinyl wire * How to process the shield: Solder Solder vinyl wire to shield, fasten crimp-on here.

  • Page 29

    2. WIRING 2.1.2 Connections for outside installation For outside installation, arrange the antenna wire as shown below. The optional antenna materials shown below are necessary. Name Type Code No. Remarks Antenna materials CP05-09010 005-954-180 w/10 m antenna cable CP05-09020 005-964-410 w/25 m antenna cable 1.

  • Page 30: Transceiver Unit

    2. WIRING Transceiver Unit 2.2.1 General connections The general procedure for connecting cables to the Transceiver Unit is as follows: 1. Treat the cable end. See section 2.2.4. 2. Use a knife to cut intersecting cuts in the applicable rubber bushing at the bottom of the unit. 3.

  • Page 31

    Note: The inside of the FS-2575T is almost identical to that of the FS-5075T. See the illustration above for connections. 2.2.2 Power cable 70 (FS-1575T) Fabricate the cable DPYC-6 (FS-1575), 150 (FS-2575T, FS-5075T) Armor DPYC-10 (FS-2575) or DPYC-16 (FS- 5075) as shown below. Attach the crimp-...

  • Page 32

    2. WIRING 4. Screw the plug assembly on the cable. 5. Solder the plug assembly to the braided shield through solder holes. Solder the contact sleeve to the conductor. 6. Screw the coupling ring into the plug assembly. 7. Screw the plug into the WR1_ANT, WR2_ANT, R_ANT or T/R_ANT receptacle on the Trans- ceiver Unit as applicable.

  • Page 33: Control Unit, External Equipment

    2. WIRING Control Unit Connect the Transceiver Unit to the Control Unit with the cable with the D-sub 15-pin connector at both ends. Connect a single Control Unit to the CONTROLLER 1 port. (This port has priority when two Control Units are connected.) Connect a No.2 Control Unit to the CONTROLLER 2 port. Connect the handset HS-2003 to the HANDSET port at the rear of the Control Unit.

  • Page 34

    2. WIRING Fabrication of TTYCSLA series Sheath Drain wire Length of “L” FS-1575T FS-2575T/FS-5075T Cover the drain wire with the heat-shrinkable tubing, then attach the crimp-on lug to it. Vinyl tape 8 - 10 Clamp here by cable clamp. EXT BK (SSB radiotelephone, etc.) Terminal no.

  • Page 35

    2. WIRING MIF unit Use connector 17JE-13250-02 (supplied as installation materials) to connect the MIF unit to the REMOTE port on Transceiver Unit. Shield tape (metal) Fold back armor, then wind shield tape along edge of cable. Cable clamp Cable Type: UL2464-SM (M) 13PX28AWG...

  • Page 36: Ac-dc Power Supply Unit Pr-300/pr-850a (option)

    To connect to both an AC and DC ship’s mains, the optional AC-DC power supply unit PR-300 (FS-1575) or PR-850A (FS-2575/FS/5075) is required. Attach the crimp on lug FV5.5-4 (local sup- ply) to the following cables or equivalent (local supply) for connection with the power supply unit.

  • Page 37

    2. WIRING 100V 110V 100 (FAN) 100 (FAN) 110 VAC SHIP’S MAINS 100 VAC SHIP’S MAINS 200V 220V 100 (FAN) 100 (FAN) 220 VAC SHIP’S MAINS 200 VAC SHIP’S MAINS Tap connections in the PR-300 PR-850A for FS-2575/5075: The input voltage is adjustable for 100/110/120/200/220/240 VAC, and is factory-set for 220 VAC. To select other input voltages, open the top cover and change the wiring according to the figure on the next page.

  • Page 38

    2. WIRING 100 VAC input 110 VAC input Black Black White White White Black Black White Black Black 120 VAC input 200 VAC input White White Black White Black Black Black White Black Black (Default setting) 220 VAC input 240 VAC input White White Black...

  • Page 39: Automatic Antenna Switch As-102 (option), Automatic Antenna Switch As-102 (option)

    2. WIRING Automatic Antenna Switch AS-102 (option) Connect the SSB antenna to the ANT terminal, and use the antenna cable to connect the TRX terminal and the Antenna Coupler (ANT terminal) as shown below. For the signal cable, connect the DPYCY-1.5 (or DPYC-1.5) cable between the Transceiver Unit and the Automatic Antenna Switch as shown below.

  • Page 40: Initial Settings, How To Initialize The Control Unit And Transceiver Unit, How To Enter Mmsi

    INITIAL SETTINGS This chapter shows you how to enter the initial settings. A password is required to enter the initial settings. Refer to FURUNO Information for the password. How to Initialize the Control Unit and Transceiver Unit Turn on the power switch on the Control Unit. The equipment starts to update the software, in the sequence shown below.

  • Page 41: Performance Check

    3. INITIAL SETTINGS 2. Enter the password. The lock icon turns green, the shackle of the lock opens and the cursor selects the MMSI area. Push the Rotary knob to show the MMSI input box. MMSI input box 3. Use the numeric keys to enter the MMSI. 4.

  • Page 42: System Setup

    6. Rotate the Rotary knob to select an option (or set numeric value) then push the knob. 7. Press the CANCEL key to go backward in the menu, or press the MENU key to close the menu. 3.4.2 EQUIP TYPE menu The system automatically detects the model name and displays the results, [FS-1575], [FS-2575] or [FS-5075].

  • Page 43: Dsc Setup Menu

    3. INITIAL SETTINGS 3.4.3 DSC SETUP menu The [DSC SETUP] menu sets up the system’s DSC features. MMSI: Ship’s MMSI (display only). SIG DETECT S-LEVEL: Adjust the carrier sense threshold for DSC and PSTN. DSC transmission is delayed if the carrier level is lower than the level set here. Also, determine whether a DSC fre- quency is in use or not.

  • Page 44: Rt Setup Menu

    3. INITIAL SETTINGS 3.4.4 RT SETUP menu SETUP The [RT SETUP] menu sets functions according to needs and regulations and adjusts TX power. TX FREQ: Select the frequencies to use. [ALL FREE]: Transmit on any frequency. [FREE]: Some restrictions to frequency use apply. For example, NBDP-use distress frequency can not be used for transmission in the SSB mode.

  • Page 45

    3. INITIAL SETTINGS DIVIDER: Divider connection. [ON]: Divider connected. [OFF]: Divider not connected. LINEIN: Adjust the input sensitivity of the device connected to the LINE IN terminal (25 D-SUB 25 pin). LINEOUT: Adjust the output level of the device connected to the LINE OUT terminal (25 D-SUB 25 pin).

  • Page 46

    3. INITIAL SETTINGS TX PWR (USER CH) xx.xA x.xA* PA1 current xx.xA x.xA* PA2 current xx.xV x.xV* VC of PA2 xx.xV * Shown for FS-5075 only TX power on user channels can fluctuate according to antenna location. If this occurs, adjust the TX power on user channels.

  • Page 47

    3. INITIAL SETTINGS TX PWR (TUNE) xx.xA x.xA* PA1 current xx.xA x.xA* PA2 current xx.xV x.xV* VC of PA2 xx.xV * Shown for FS-5075 only Tune output power. TX FREQ: Select the frequency. TX POWER ADJ: Set the TX power. LOAD DEFAULT: Restore default TX tune settings.

  • Page 48: Other Menu

    3. INITIAL SETTINGS 2) Select [TX POWER ADJ], push the Rotary knob, rotate the knob to adjust TX power then push the knob. See the next several pages for sample antenna connections. 3.4.5 OTHER menu PA: Lower output power. Select [OFF] to lower the output power. Reset the power to affect the change.

  • Page 49

    3. INITIAL SETTINGS Standard configuration 2: Separate R_ANT and WR1 antennas, optional WR2 board in- stalled To connect R. ANT, set [RX ANT] on the [RT SETUP] menu to [CONNECT]. R ANT T/R ANT WR2 ANT AT-5075/ AT-1575 WR1 ANT Shared antenna configurations Shared antenna configuration 1: R_ANT and WR1 antennas commonly shared 1) Turn on [DIVIDER] in the [RT SETUP] menu of the [SERVICE] menu.

  • Page 50

    3. INITIAL SETTINGS Shared antenna configuration 2: R_ANT and WR2 antennas commonly shared Optional WR2 Board installed to watch on DSC general frequencies. 1) Turn on [DIVIDER] in the [RT SETUP] menu. 2) Set [RX ANT] on the [RT SETUP] menu to [CONNECT]. 3) Use the mini-pin assemblies (supplied) to make these connections: •...

  • Page 51

    3. INITIAL SETTINGS Full duplex configurations (FS-5075 only) Full duplex configuration 1: Separate R_ANT and WR1 antennas, optional DUP-FIL board installed Watch on DSC general frequencies available with installation of optional WR2 Board. Set [RX ANT] on the [RT SETUP] menu in the [SERVICE] menu to [CONNECT]. R_ANT T/R_ANT T/R_ANT...

  • Page 52: Alarm Contact Signal, I/o Data

    3. INITIAL SETTINGS Full duplex configuration 2: R_ANT and WR1 (or WR2) antennas commonly shared Turn on [DIVIDER] in the [RT SETUP] menu. Set [RX ANT] on the [RT SETUP] menu to [CON- NECT]. R_ANT T/R_ANT T/R_ANT R_ANT WR1_ANT Alarm Contact Signal Set the format of the alarm contact signal for normal close or normal open, with the jumper block J8 on the T-IF Board (05P0861).

  • Page 53

    EX: DPYCYSLA - 1.5 MPYC - 4 Core Area (mm TTYCSLA-4 Designation type Designation type # of cores The following reference table lists gives the measurements of JIS cables commonly used with Furuno products: Core Cable Core Cable Diameter Diameter...

  • Page 64

    D-3a Y.NISHIYAMA 16/Mar/2012...

  • Page 65

    D-3b...

  • Page 68

    D-5a Y.NISHIYAMA 20/Jan/2012...

  • Page 69

    D-5b Y.NISHIYAMA 20/Jan/2012...

  • Page 74

    D-10...

  • Page 75

    D-11 Y.NISHIYAMA 25/Mar/2011...

  • Page 76

    D-12...

  • Page 77

    D-13...

  • Page 78

    D-14...

  • Page 79

    D-15...

  • Page 80

    D-15a...

  • Page 81

    D-15b...

  • Page 82

    D-16...

  • Page 83

    D-17...

  • Page 84

    D-18...

  • Page 85

    AC IN 1φ,50/60Hz IV-2sq. AC-DC電源ﾕﾆｯﾄ IV-8sq. *1 *3 AC/DC POWER DPYC-6 24VDC SUPPLY UNIT PR-300 注記 ＊１）造船所手配。 ＊２）オプション。 ＊３）長さに応じて芯線太さを変更する。 DRAWN TITLE FS-1575 T.YAMASAKI ＊４）内部スイッチ設定が必要。 7/May/2012 CHECKED 名称 NOTE SSB送受信機 H.MAKI 7/May/2012 *1: SHIPYARD SUPPLY. APPROVED 相互結線図 Y.NISHIYAMA 8/Dec/2011 *2: OPTION. SCALE...

  • Page 86

    2.6m WHIP ホイップアンテナ 04S4176 WHIP ANTENNA ﾌﾟﾘｱﾝﾌﾟ PREAMP 2.6m WHIP FAX-5 M-P-7 04S4176 RG-10/UY ARD-1/ 送受信部 FS-2575T/5075T AJB1-1A ﾌﾟﾘｱﾝﾌﾟ TRANSCEIVER UNIT WR1_ANT M-P-3 M-P-3 FMA-1 M-P-3 PREAMP 3D-2V,MAX.50m IV-2sq. ハンドセット HANDSET DSUB15-5P-L**M, FAX-5 TRANSCEIVER OR RG-10/UY(M-P-7) HANDSET 5/10/20/30/40/50m,φ7.8 TB5 CONTROLLER1 IV-2sq.
