Outdoor Gourmet SRGG21101 User Manual

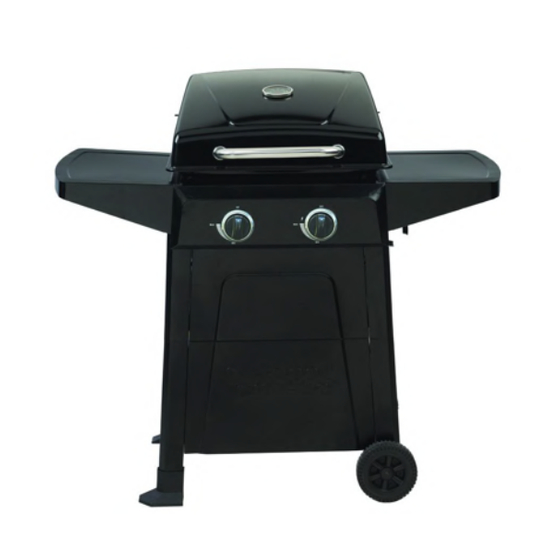

Og 2 burner gas grill
Hide thumbs
Table of Contents

Advertisement

Quick Links

OG 2 BURNER GAS GRILL
Please keep this instruction manual for future reference
Keep screws and parts out of reach of children.
Customer Service: (866) 814-0585, 8:00am to 4:30pm, Central Standard Time
DO NOT RETURN TO PLACE OF PURCHASE
USER MANUAL
MODEL NO.: SRGG21101
Warning:
!
Adult assembly required.
FOR OUTDOOR USE ONLY
Monday thru Friday
(Made in China)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRGG21101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Outdoor Gourmet SRGG21101

Summary of Contents for Outdoor Gourmet SRGG21101

  • Page 1 OG 2 BURNER GAS GRILL USER MANUAL MODEL NO.: SRGG21101 Please keep this instruction manual for future reference Warning: Adult assembly required. Keep screws and parts out of reach of children. FOR OUTDOOR USE ONLY Customer Service: (866) 814-0585, 8:00am to 4:30pm, Central Standard Time...
  • Page 2 SAFETY WARNINGS DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. Open lid. 4. If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department. WARNING 1.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SECTION ONE Safety Warning........................4 Placement of the Grill......................8 SECTION TWO Exploded View........................9 Parts List ..........................10 Tools Required ........................11 Hardware..........................11 Assembly Instructions......................12 SECTION THREE Gas Hook-Up.........................19 Leak Testing..........................2 2 Installer Final Check and Operating Instructions..............23 SECTION FOUR Operating Instructions ......................23 Lighting Instructions.......................24...

  • Page 4: Safety Warning

    SAFETY WARNINGS RECOGNIZED SAFETY SYMBOLS, WORDS AND LABELS DO NOT USE ALUMINUM FOIL TO LINE THE WARNING GRILL RACKS OR GRILL BOTTOM. Do not try lighting this appliance without first reading the “LIGHTING INSTRUCTIONS” section This can severely upset combustion airflow or trap of this manual.
  • Page 5 SAFETY WARNINGS RECOGNIZED SAFETY SYMBOLS, WORDS AND LABELS WARNING: Always keep your face and body as far away from the burner as possible when lighting. WARNING: IMPORTANT! BEFORE LIGHTING… Inspect the gas supply hose prior to turning the gas “ON”. If it is evident there is excessive abrasion or wear, or the hose is cut, it must be replaced prior to the grill being put into operation.
  • Page 6 SAFETY WARNINGS DO NOT STORE ITEMS OF INTEREST TO TESTED IN ACCORDANCE WITH ANS Z21.58- CHILDREN AROUND OR BELOW THE GRILL OR IN 2007 / CSA 1.6-2007, ANS Z21.58a- 2008 / THE CART. NEVER ALLOW CHILDREN TO CRAWL CSA1.6a-2008 STANDARD OUTDOOR INSIDE OF THE CART.
  • Page 7 SAFETY WARNINGS When using the grill, do not touch the grill rack, Use only in well ventilated areas. Do not use in burner grate or immediate surroundings as these buildings, garages, sheds, breezeways or other such areas become extremely hot and could cause enclosed areas.

  • Page 8: Placement Of The Grill

    PLACEMENT OF THE GRILL MINIMUM CLEARANCE: LOCATION 2’ Clearance from both sides of combustible When determining a suitable location take into material, and 3’ Clearance from the back. account concerns such as exposure to wind, proximity to traffic paths and keeping any gas supply lines as short as possible.

  • Page 9: Exploded View

    EXPLODED VIEW...

  • Page 10: Parts List

    PARTS LIST Part # Description Cooking grate Right side shelf Connection bar Rear right pole Cart right support bar Front right pole Wheel supporter Wheel Axle Warming rack Grill body Control knob Grease cup Hanger Grease cup Rear support bar Cart front panel-upper Cart front panel-lower Flame tamer...

  • Page 11: Tools Required

    TOOLS REQUIRED Phillips Head Screwdriver (Not included) Adjustable Wrench (Not included) HARDWARE Hardware # Picture Description M6 x 12 bolt M5 x 10 bolt M4 x 10 bolt M6 wing nut M6 x 30 bolt R-pin M10 nut D10 washer...

  • Page 12: Assembly Instructions

    ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS STEP 1 Attach front leg stand (#27) to front left pole (#26) with (3) M4 x 10 bolts (CC). Attach rear leg stand (#25) to rear left pole (#21). Hardware Used M4 x 10 bolt 3pcs STEP 2 Attach cylinder fixing plate (#23) and the slot on cart left support bar-upper (#22) with (1) M6 x 30 bolt (EE) and (1) M6 wing nut (DD).
  • Page 13 ASSEMBLY INSTRUCTIONS STEP 3 Attach cart right support bar (#5) to rear right pole (#4) and front right pole (#6) with (4) M5 x 10 bolts (BB) as illustrated, two on each side. Attach wheel supporter (#7) to rear right pole (#4) and front right pole (#6) with (4) M5 x 10 bolts (BB) as illustrated, two on each side.
  • Page 14 ASSEMBLY INSTRUCTIONS STEP 5 Attach rear support bar (#15) to rear right pole (#4) and rear left pole (#21) with (4) M5 x 10 bolts (BB). Hardware Used M5 x 10 bolt 4pcs STEP 6 Insert the axle (#9) into wheel supporter (#7). Attach (2) D10 washer (HH), (2) wheels (#8), (2) M10 nuts (GG) and (2) R-pins (FF) to axle (#9), secure in turn as illustrated.
  • Page 15 ASSEMBLY INSTRUCTIONS STEP 7 Install two connection bars (#3) as illustrated. STEP 8 Carefully place the grill body (#11) onto the cart assembly, fix them with (4) M6 x 12 bolts (AA), two on each side. NOTE: It should be done with (2) persons for safety & accuracy.
  • Page 16 ASSEMBLY INSTRUCTIONS Step 9 Install one heat isolation panel (#20) to grill body (#11) with (2) M4 x 10 bolts (CC). Install (4) M5 x 10 bolts (BB) onto the grill body (#11) as illustrated and keep them half loosen. Then install left side shelf (#19) onto grill body (#11) with these (4) M5 x 10 bolts (BB).
  • Page 17 ASSEMBLY INSTRUCTIONS STEP 10 Install grease cup (#14) onto grease cup hanger (#13), and place it at the bottom of grill body (#11). STEP 11 Open the lid, place two flame tamers (#18), cooking grate (#1) and warming rack (#10) into the grill body (#11) respectively.
  • Page 18 GAS CYLINDER INSTALLATION INSTRUCTIONS STEP 1 1. Place gas cylinder (not included) into the slot of cart left support bar-lower (#24) as illustrated. Fig.1 2. Make sure the valve of gas cylinder is securely turned off prior to the left position of the grill. Then slide cylinder fixing plate (#23) over cylinder handle to secure the gas cylinder tightly.

  • Page 19: Gas Hook-Up

    GAS HOOK-UP Other cylinder may be acceptable for use with the Only the pressure regulator and hose assembly supplied appliance provided they are compatible with the appliance with the grill should be used. Any replacement pressure retention means. regulator and hose assembly must be those specified by the grill manufacturer.
  • Page 20 GAS HOOK-UP around the gas grill housing. This outdoor gas grill is not Open the cylinder valve fully (counterclockwise). intended to be installed in or on recreational vehicles Use a soapy water solution to check all connections and/or boats. for leaks before attempting to light the grill. See below.
  • Page 21 GAS HOOK-UP When your gas grill is not in use, the gas must • WARNING be turned off at the supply cylinders. Storage A strong gas smell or the hissing sound of gas of an outdoor cooking gas appliance indoors indicates a serious problem with your gas grill or the permissible only...

  • Page 22: Leak Testing

    LEAK TESTING GAS FLOW CHECK GENERAL Each grill burner is tested and adjusted at the factory prior Although all gas connections on the grill are leak to shipment; however, variations in the local gas supply tested at the factory prior to shipment, a complete gas may make it necessary to adjust the burners, the flames tightness check must be performed at the installation of the burners should be visually checked.

  • Page 23: Installer Final Check And Operating Instructions

    INSTALLER FINAL CHECK OPERATING INSTRUCTIONS Specified clearance maintained 2 feet from USING THE GRILL sides of combustibles, and 3 feet from the back. Grilling requires high heat for searing and proper All internal packaging removed. browning. Most foods are cooked at the “MAX” heat Knobs turn freely.

  • Page 24: Lighting Instructions

    LIGHTING INSTRUCTIONS WARNING: IMPORTANT! BEFORE LIGHTING… 1 inch Inspect the gas supply hose prior to turning the gas “ON”. If it is evident there is excessive abrasion or wear, or the hose is cut, it must be replaced prior to Burner flames should be blue and stable with no the grill being put into operation.
  • Page 25 LIGHTING INSTRUCTIONS Keep a spray bottle of soapy water near the gas supply valve and check the connections before each use. Do not attempt to light the grill if odor of gas is present. Call for customer service 1-866-814-0585.

  • Page 26: Care & Maintenance

    CARE & MAINTENANCE GREASE TRAY CLEANING STAINLESS STEEL The grease tray should be emptied and wiped down Under extreme conditions, stainless steel can rust and periodically and washed in a mild detergent and warm the rust may not be removable. These conditions may water solution.

  • Page 27: How To Replace Main Burner

    HOW TO REPLACE MAIN BURNER Ignition hole (upwards) M5x10 bolt D5 washer M5 nut Nozzle Step 1 Place the main burner onto grill body (#11) and make sure the ignition hole face upward and nozzle insert into the main burner tube. Step 2 Fix one main burner to the grill body (#11) with (1) M5 x 10 bolt, (1) D5 washer and (1) M5 nut.

  • Page 28: Trouble Shooting

    TROUBLE SHOOTING SPIDER AND INSECT WARNING!!! 1. The smell of gas in conjunction with the burner Spiders and insects can nest in the burners of the grill flames appearing yellow. and cause the gas to flow from the front of the burner. 2.

  • Page 29: Limited Warranty

    ONE-YEAR LIMITED WARRANTY Academy, Ltd. warrants your gas grill to be free from manufacturer’s defects in workmanship or material under normal operating conditions for one (1) year from the original date of purchase. This warranty applies if the item is available to the original purchaser only. This warranty applies only to products sold at retail.
