Understanding the LCD Menus
41

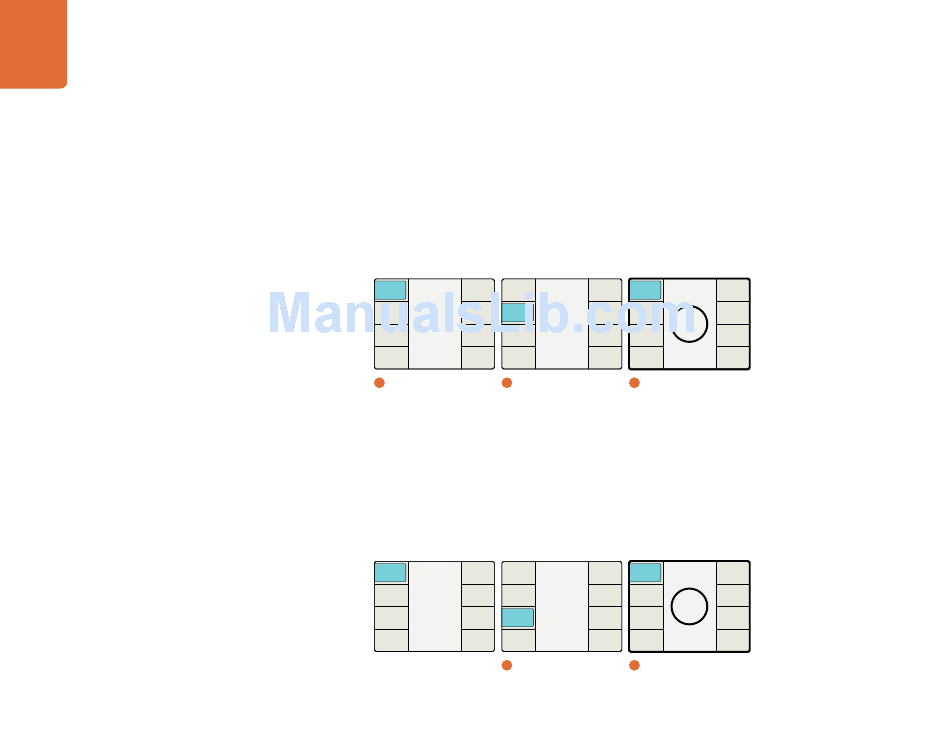

Clip Menu

The Clip menu allows you to clip luminance and chrominance (Y & C) overshoots and undershoots from the
incoming video signal. The Clip function is not defined as a "legalizer"; however, adjusting the luminance
and chroma settings will assist in obtaining the desired output video levels.
‚ Luma Low – Range: 4 to 1018. Default: 4.
‚ Luma High – Range: 5 to 1019. Default: 1019.
‚ Chroma Low – Range: 4 to 1018. Default: 4.
‚ Chroma High – Range: 5 to 1019. Default: 1019.
Video
Main Menu
Setup
Color
Noise
Clip
Reduction
Ancillary
Aspect
Data
Fill
Proc
Back
Amp
Main Menu
Video
1
2

Aspect Fill

The Aspect Fill menu allows you to define a desired color for use in aspect ratios requiring a fill, such as pillar
box or letterbox aspect ratios. Luminance and Cb and Cr chroma values may be independently adjusted
using the front panel rotary encoder.
‚ Luma – Range: 64 to 940. Default: 64
‚ Cb – Range: 64 to 960. Default: 512
‚ Cr – Range: 64 to 960. Default: 512
Video
Main Menu
Setup
Color
Noise
Clip
Reduction
Ancillary
Aspect
Data
Fill
Proc
Back
Amp
Video
2
Test
Luma
Reset
Video
Set Value
Patterns
Low
Luma
Advanced
High
4
Chroma
Low
Chroma
Back
Back
High
Clip / Luma Low
3
Test
Reset
Video
Luma
Set Value
Patterns
Advanced
Cb
64
Cr
Back
Back
Aspect Fill / Luma
3
All
All
