Getting Started with Capture and Playback
22

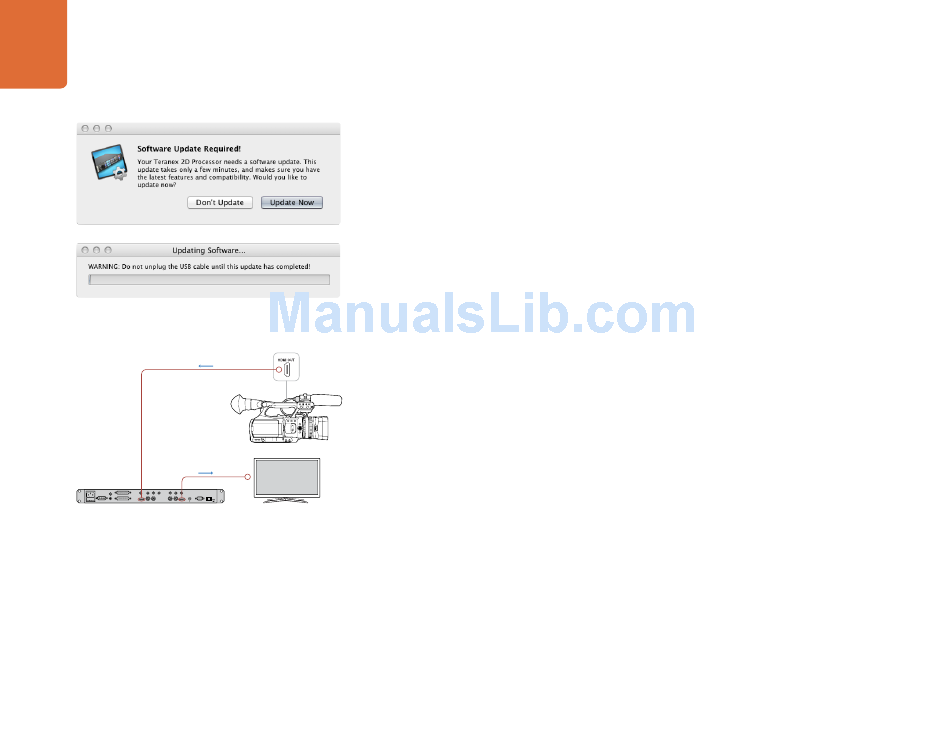

Connect a video monitor and source to your Teranex 2D Processor
Updating the Teranex Processor Software
Step 1. Connect the Teranex Processor via USB to your computer. The switcher chassis is equipped with
a mini-USB 2.0 port which can be connected to your computer's USB 2.0 or USB 3.0 port using a
USB cable. When upgrading software, make sure there is only one Teranex Processor connected
via USB to the computer running the Teranex Utility software.
Step 2. Launch the Teranex Utility software.
Step 3. If the Teranex Processor software requires updating, you will be prompted by a window asking
if you would like to update the software. Select Update Now to initiate the update process.
The update process may take a few minutes. Do not unplug power from the Teranex Processor
during the software update.
Step 4. Once the software update is complete, the Teranex Processor will automatically restart to enable
the new software.
It's a good idea to run a quick test to ensure you can capture and play back video before you need to use
Camera Outputs
your Teranex 2D Processor hardware for anything important:
‚ Connect a video monitor or TV to the video output of your Teranex 2D Processor. An HDMI TV is
very convenient for this test as both video and audio can be monitored without needing external
audio connections.
‚ Connect a video source to the video input of your Teranex 2D Processor, especially a camera or
deck. DVD players shouldn't be used for this test as they typically have copy protection on their
HDMI and analog outputs so you won't be able to capture from them even if you're using home
made DVD's.
‚ Use the buttons on the Teranex 2D Processor to set your video and audio connections for input
and output.
HDTV
‚ Locate Blackmagic Media Express and open it:
- on Mac OS X, look in the Applications folder.
