Zaxcom Digital Wireless System User's Manual_______________________________________Chapter 4

EA100 IFB Earpiece Adapter

The EA100 is used for monitoring IFB audio when attached to the side of a TRX900 or TRX900AA.

TCA100 Timecode Adapter

The TCA100 timecode adaptor provides a dedicated timecode input to the TRX900, TRX900AA and ZFR100.
This is especially helpful for using the auto-load feature manually (without the IFB100).

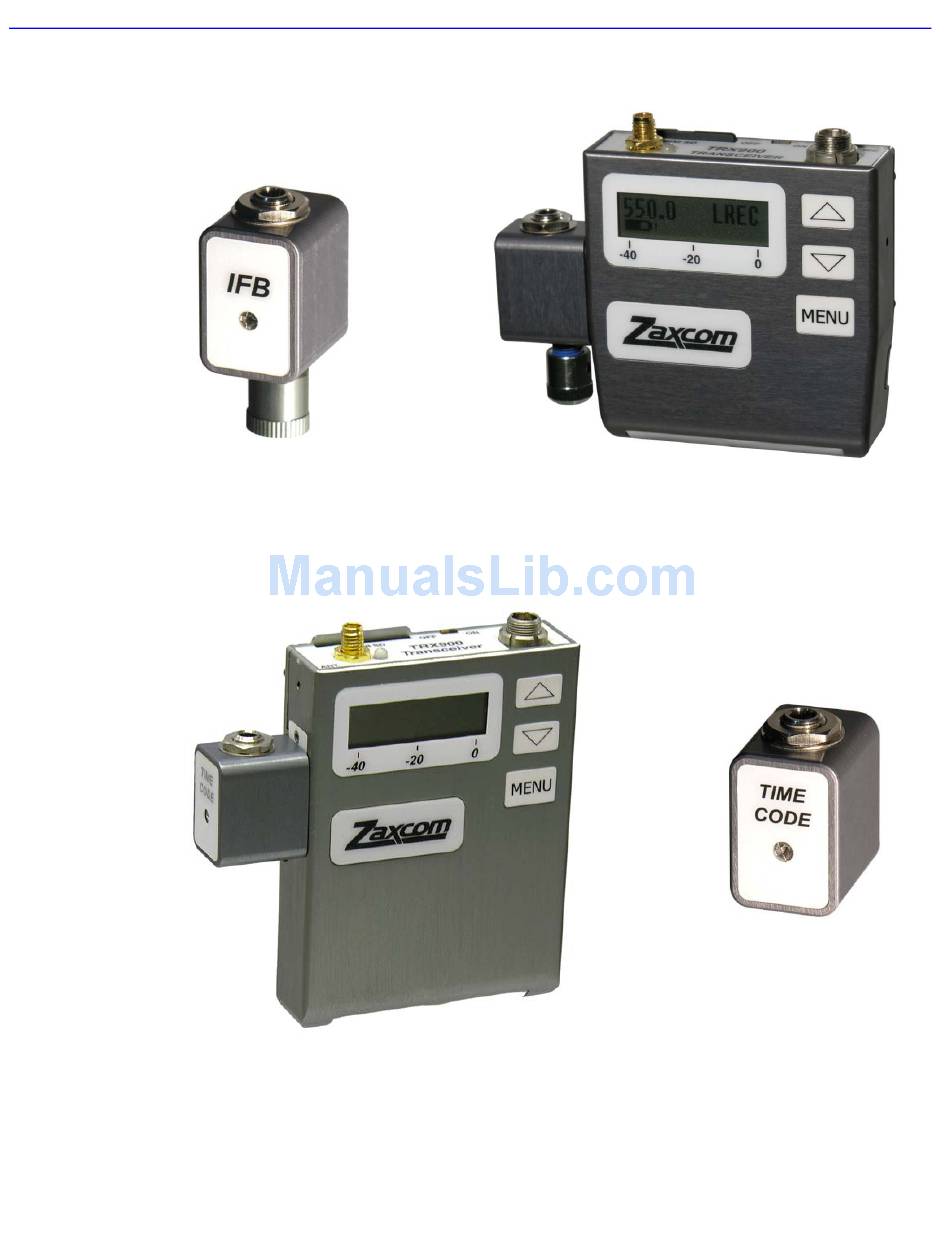

Figure 4-3 EA100 & EA100 attached to TRX900
Figure 4-4 TCA100 attached to TRX900AA & TCA100
47
