Zaxcom Digital Wireless System User's Manual_______________________________________Chapter 2

Getting to Know Your TRX700 Plug-on Transmitter

The TRX700 uses two AA type batteries (Lithium or NiMH). It includes a switch on the side of the case to turn
ON/OFF the 48 VDC phantom power. There is a MiniSD slot behind the battery cover, which is used to update
the Operating System and to record audio. This section was written based on firmware version
1. 2.

Connectors, Switches and LEDs

Antenna

The transmitter uses a gold plated SSMA connector. Included is an antenna cut to the correct length for your
transmitter's specific frequency block. You should periodically check that the connector is still securely tightened.
3. 4.
b
b
n
n
9. 10.
1. LCD screen
2. Battery cover
3. Battery cover retention screw
4. INC key
5. DEC key
6. Microphone connector (XLR-3F)
5. 6.
7. Battery compartment
8. MiniSD media slot (shown w/ card)
9. MENU key
10. Phantom On/Off (on bottom)
11. Power switch
12. Antenna connector (SMA)

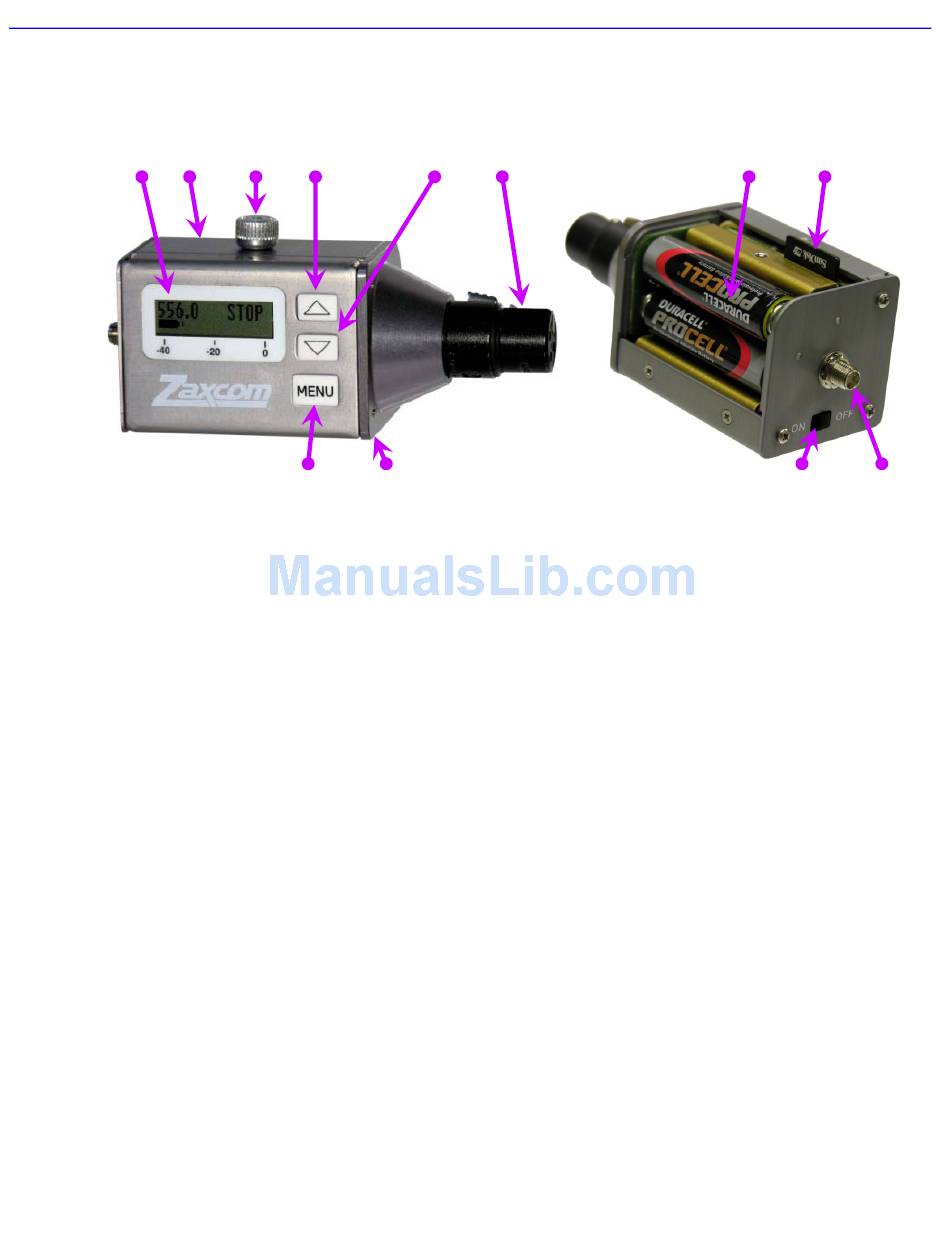

Figure 2-4 TRX700 Front & Top End Views
21
5.98.
7. 8.
11. 12.
