Getting to Know Your TRX800 Handheld Wireless Transmitter

The TRX800 uses a single CR123 battery.
Uses screw-on microphone capsules made by Shure™ and Neumann™. Be aware that to use a Neumann capsule,
a special adapter is required. Check with Zaxcom Sales for price and availability. This section was written based
on firmware version 5.98.
1.
3.
9.
1. Mic capsule
2. Mic body
3. Capsule contacts
4. Body contact pins
5. Pad switch (10 dB)

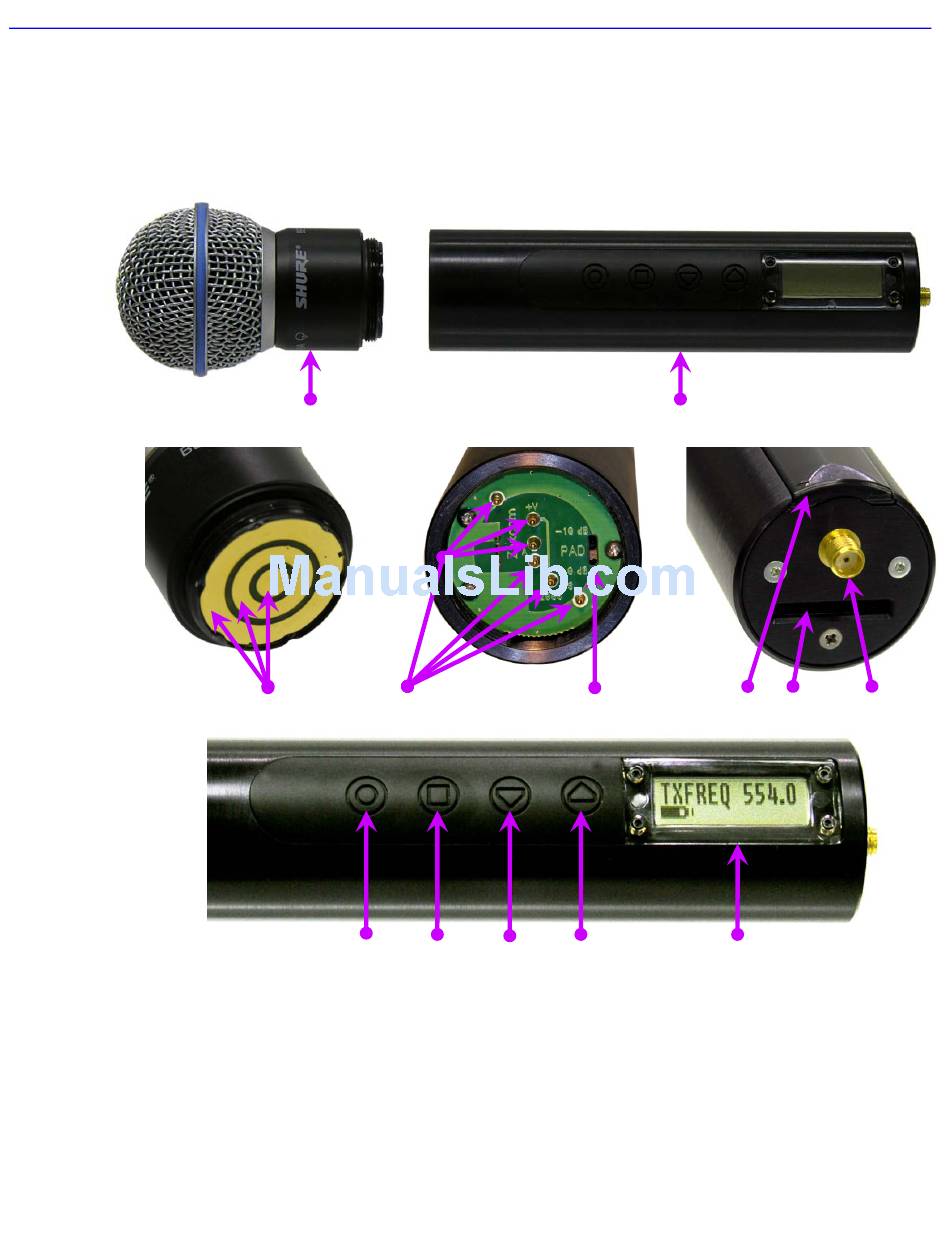

Figure 2-5 TRX800 Side, Mic Capsule, Body Threaded End, Body Antenna End & Barrel Views
4.
10. 11. 12.
6. Battery door (power switch inside)
7. MiniSD media slot
8. Antenna connector (SMA)
9. RECORD key
10. MENU key
23
2.
5. 6.
13.
11. DEC key
12. INC key
13. LCD screen
7. 8.
