Getting to Know Your TRX992 Wireless Boom Transmitter

The TRX992 uses a single VPX battery (Lithium-Ion). Additional batteries, at a very reasonable price, can be found
where Black & Decker power tools are sold. This section was written based on firmware version
IMPORTANT: The software for the TRX992 is a separate version from the software used by the remaining
Wireless equipment. The software version # will ALWAYS end with "T".
1. LCD screen
2. INC key
3. DEC key
4. MENU key
5. IFB receivers & antennas
6. Mix ratio (IFB signal/Mic direct)
7. MiniSD media slot
8. Power switch
9. 1/8" headphone jack
10. Headphone fader
11. Antenna connector (SSMA)
12. Power/Record LED
13. VPX battery
14. VPX battery latch
15. Boom mic connector (XLR-3F)
16. Belt clip on back
17. VPX battery
1.
2.
3.
4.
5.

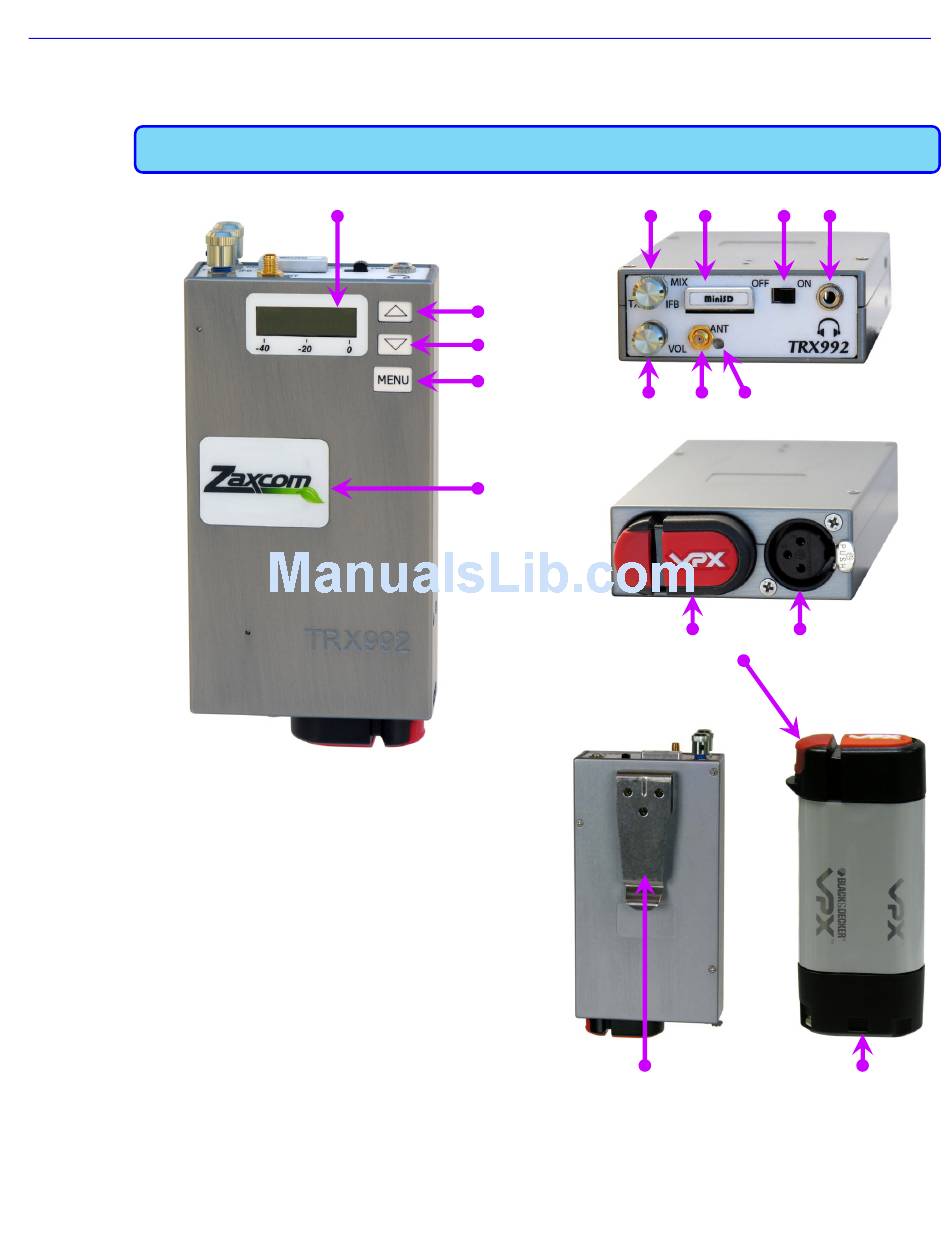

Figure 2-2 TRX992 Front, Top, Bottom, Back & Battery Views
18
6. 7. 8.
10. 11. 12.
13. 14. 15.
16.
5.98T.
9.
17.
