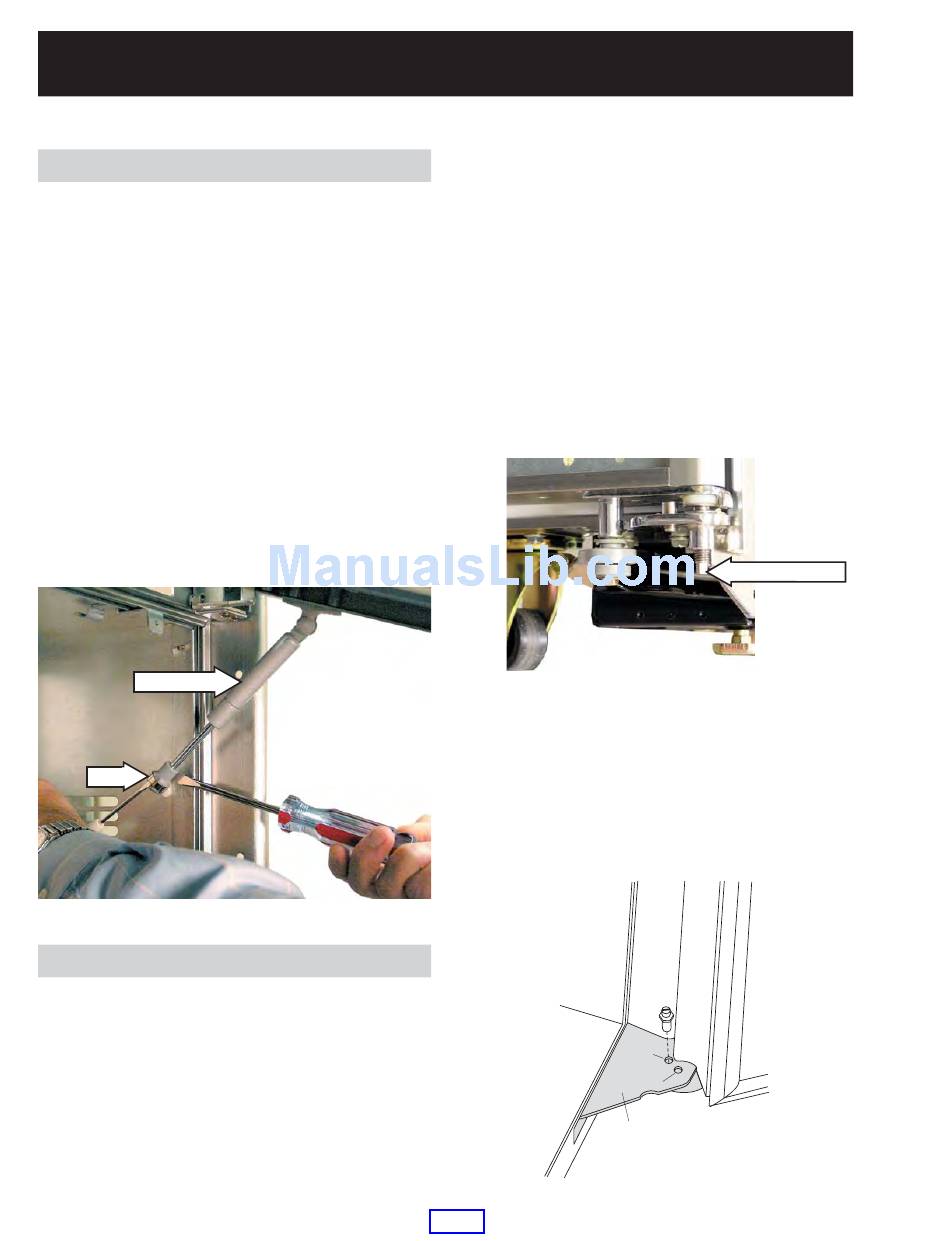

Machine Compartment Access Door

The machine compartment access door is held in
place by 2 hinges and 2 gas shocks.
To remove the machine compartment access
door:
1. Remove the grille panel.
2. Remove the gas shocks from the cabinet:
a. Insert a small screwdriver under the
retainer clip.
b. Pull the retainer inward to dislodge the gas
shock from the pivot ball.
3. Remove the 2 screws from both hinges, then
remove the machine compartment access
door.
Gas Shock
Clip
Doors
The doors are of one-piece construction with
foamed-in insulation.
The inner and outer door panels cannot be
separated and must be replaced as an assembly.
Note: On trimmed models, the maximum weight
for the fresh food door panel is 70 pounds. The
maximum weight for the freezer door panel is 30
pounds.

Components

Door Alignment
The freezer door is nonadjustable. The fresh
food door has an adjustment screw at the bottom
hinge. Use a
to turn the adjusting screw clockwise to raise the
door, or counterclockwise to lower the door. A
nylon plug, imbedded in the threads of the pin,
prevents the pin from turning, unless a tool is
used.
Note: Raising the fresh food door too high will
cause the upper hinge to bind on the machine
compartment access door.
Door Stop
The refrigerator has a 2-position door stop. When
space does not allow the door to swing open fully
to 130°, the stop can be adjusted to a 90° door
swing. The pin is factory installed in the 130°
location. To change the stop location, use a fl at-
head screwdriver to move the stop pin.
– 18 –
7 / -in. socket or open-end wrench
32
Interior
90
130
Hinge
Adjusting Screw
Door
