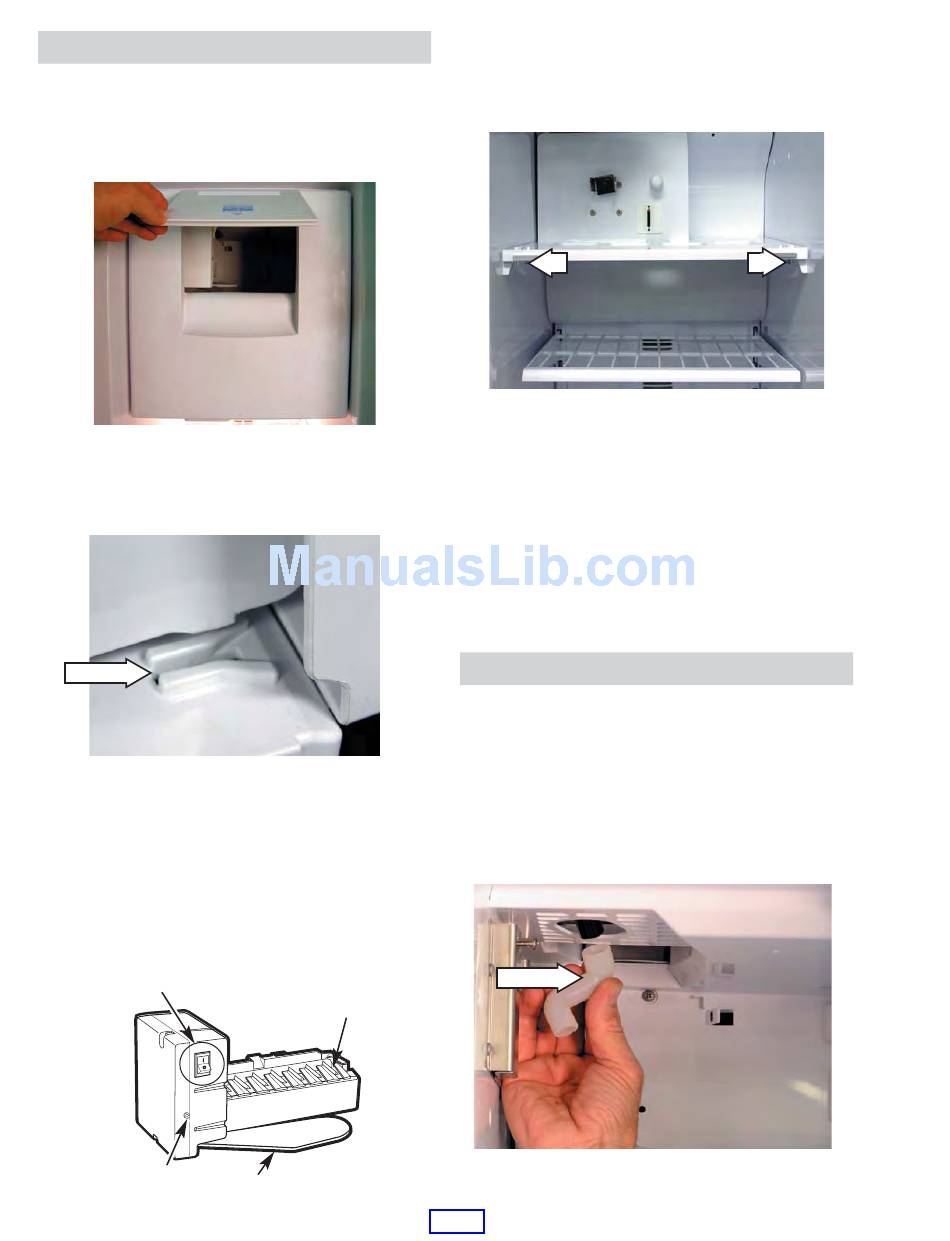

Ice Bin and Icemaker

Ice Bin
The ice bin holds approximately 7 pounds of ice,
equivalent to about 230 cubes.
The ice bin can be removed by lifting it upward,
to clear the tabs holding the bin in place, then
pulling forward.
Tabs
Icemaker
The icemaker is mounted to the upper left wall
of the freezer cabinet. Under normal operating
conditions, the icemaker is capable of producing
approximately 4.3 pounds of ice in a 24-hour
period. During
QUICK ICE
of producing 5.5 pounds of ice in a 24-hour
period.
Power Switch
Green
Power Light
, the icemaker is capable
I = On
0 = Off
Icemaker
Feeler Arm
To remove the icemaker:
1. Remove the ice bin. Remove 2 front screws
that hold the ice bin shelf in place.
2. Pull the shelf forward to access the icemaker
plug, then unplug the icemaker.
3. Remove the 2 screws that hold the icemaker
in place. Remove the icemaker.
Check for 120 VAC to the icemaker at CN07 on
the terminal block between pin #3 (power) and
pin # 5 (neutral).

Icemaker Fill Tube and Heater

To remove the icemaker fi ll tube and heater:
1. Remove the ice bin and icemaker (see
Bin and Icemaker
2. Remove the elbow from the end of the fi ll
tube.
Elbow
– 26 –
Ice
).
