WARNING: The evaporator fi ns are very sharp.
Wear Kevlar gloves when handling.

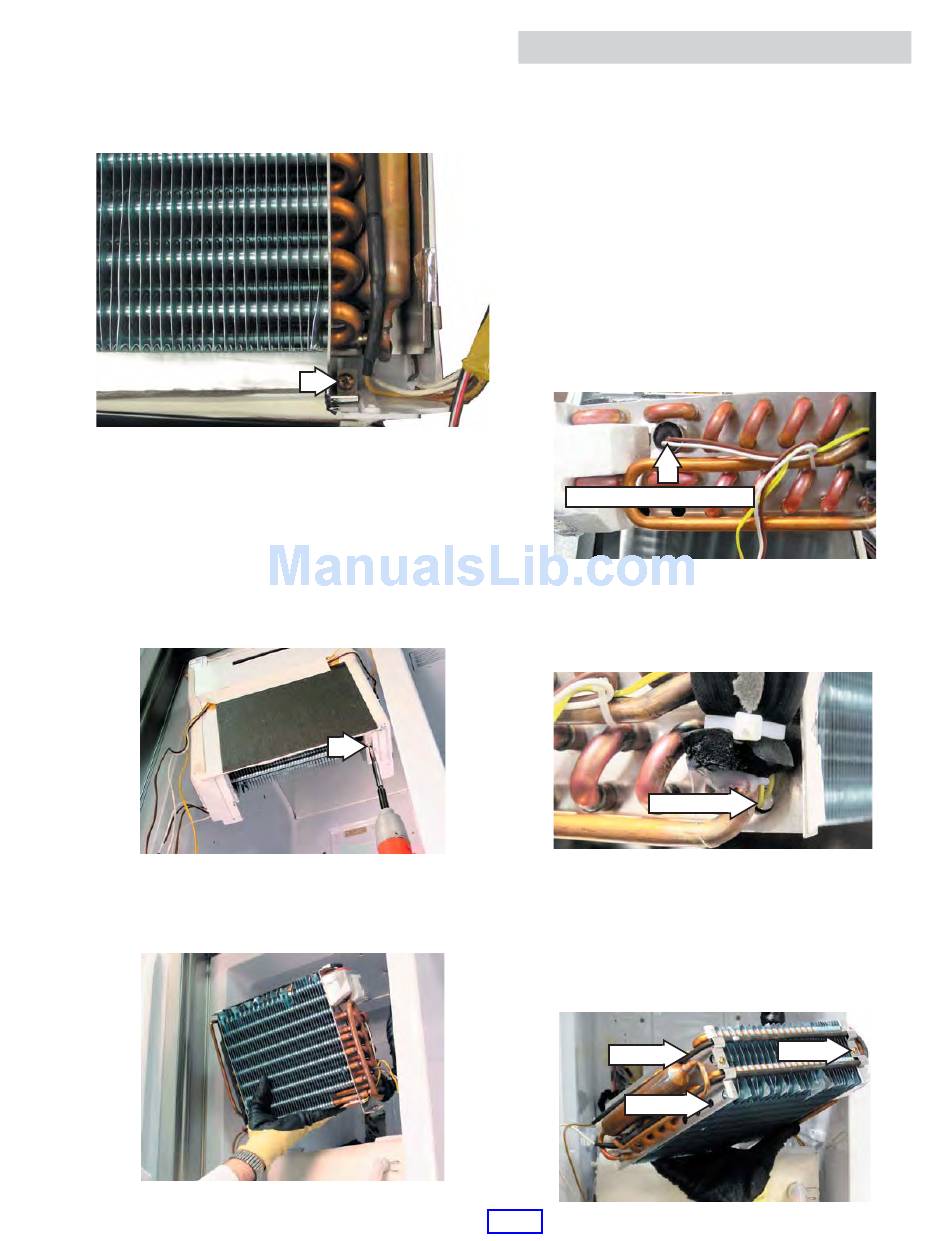

5. Remove the single Phillips-head screw at the
corner of the evaporator.
6. To access the remaining Phillips-head
screw that holds the evaporator in place,
suspend the evaporator from the machine
compartment grille mounting bracket with a
bent wire hook. Remove the screw.
Note: The screw may be covered by foil.
7. Lift the evaporator from the housing.

Freezer Evaporator Components

To access the freezer evaporator components:
1. Access the freezer evaporator assembly. (See
Freezer Evaporator Assembly.
2. Remove the freezer evaporator fan assembly.
(See
Freezer Evaporator Fan Assembly.
3. Access the freezer evaporator. (See
)
Evaporator.
Defrost Safety Thermostat
To remove the defrost safety thermostat, remove
the single Phillips-head screw from the thermostat
mounting bracket. Separate the thermostat from
the bracket.
Defrost Safety Thermostat
Freezer Evaporator Thermistor
To remove the freezer evaporator thermistor, pull
it straight out from its mounting tube.
Thermistor
Defrost Heater
To remove the defrost heater, remove the 2
Phillips-head screws from the evaporator defrost
heater mounting brackets. Separate the defrost
heater from the evaporator.
Heater
Bracket
– 47 –
)
)
Freezer
Screw
