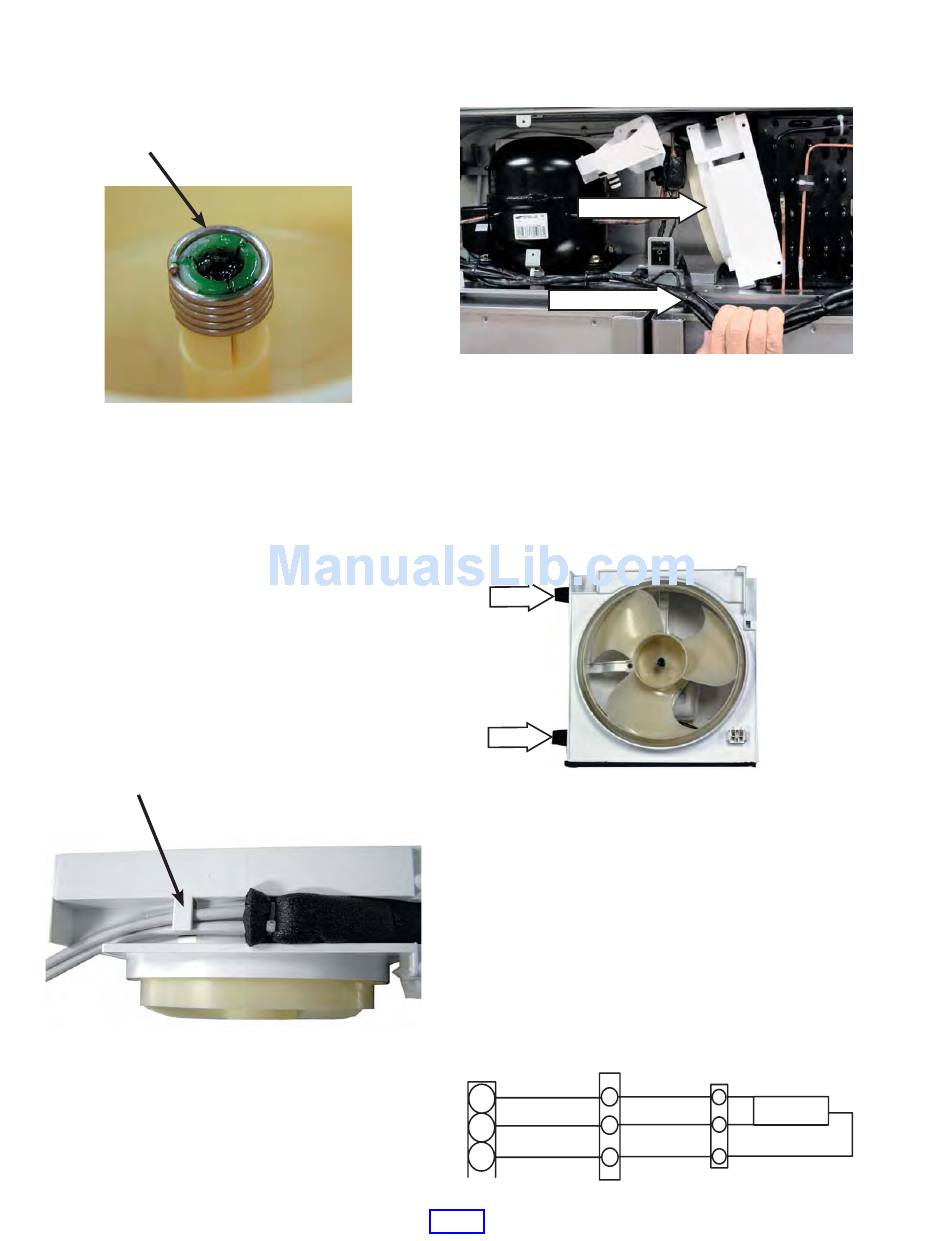

The 3-bladed fan can be removed without
removing the complete fan assembly.
The fan rotates counterclockwise as viewed from
the motor shaft end. It is held in place by a spring
retention clip.
To remove the condenser fan assembly:
1. Remove the water fi lter cartridge.
2. Remove the 2 Phillips-head screws from the
water fi lter receptacle.
3. Remove the 2 Phillips-head screws from the
front of the shroud assembly and disconnect
the fan wiring.
4. Bend the 2 wire retention tabs back to release
the wire harness.
5. Pull the fan forward and tilt it to the left to
release the 2 water fi lter tubes from the
channel at the top of the condenser fan motor
shroud.
Top View
6. Pull the cabinet wiring down as shown in the
photo below. Carefully pull the condenser fan
assembly out of the machine compartment.
Fan Assembly
Cabinet Wiring
Installing the condenser fan assembly:
1. Secure the wires to the condenser fan shroud
to prevent interference with the fan blade
rotation.
2. Ensure the rubber tab covers are in place
when reinstalling the condenser fan assembly.
Tab
Tab
3. Ensure water fi lter lines are fully seated into
the top channel of the water fi lter housing
bracket.
Voltage Checks
When the power control board (PCB) is
energizing the fan, check for approximately 9
to10 VDC between pin #2 and pin #3 at CN02
on the terminal block. Check for approximately
2 VDC between pin #1 and pin #3 at CN02.
CN02
RED
1
R4
LIGHT BLUE
2
L1
GRAY
3
R2
– 42 –
BROWN
2
BLDC C-FAN
PURPLE
4
GRAY
1
