Fresh Food Evaporator
To access the fresh food evaporator:
1. Access the fresh food evaporator assembly.
(See
Fresh Food Evaporator Assembly.
2. Remove the fresh food evaporator fan
assembly. (See
Fresh Food Evaporator Fan
)
Assembly.
3. Remove the tape from the front of the
Styrofoam cover. Note the position of the
wires under the tape. The tape must be
replaced after repair.
4. Remove the Styrofoam cover.
WARNING: The evaporator fi ns are very sharp.
Wear Kevlar gloves when handling.

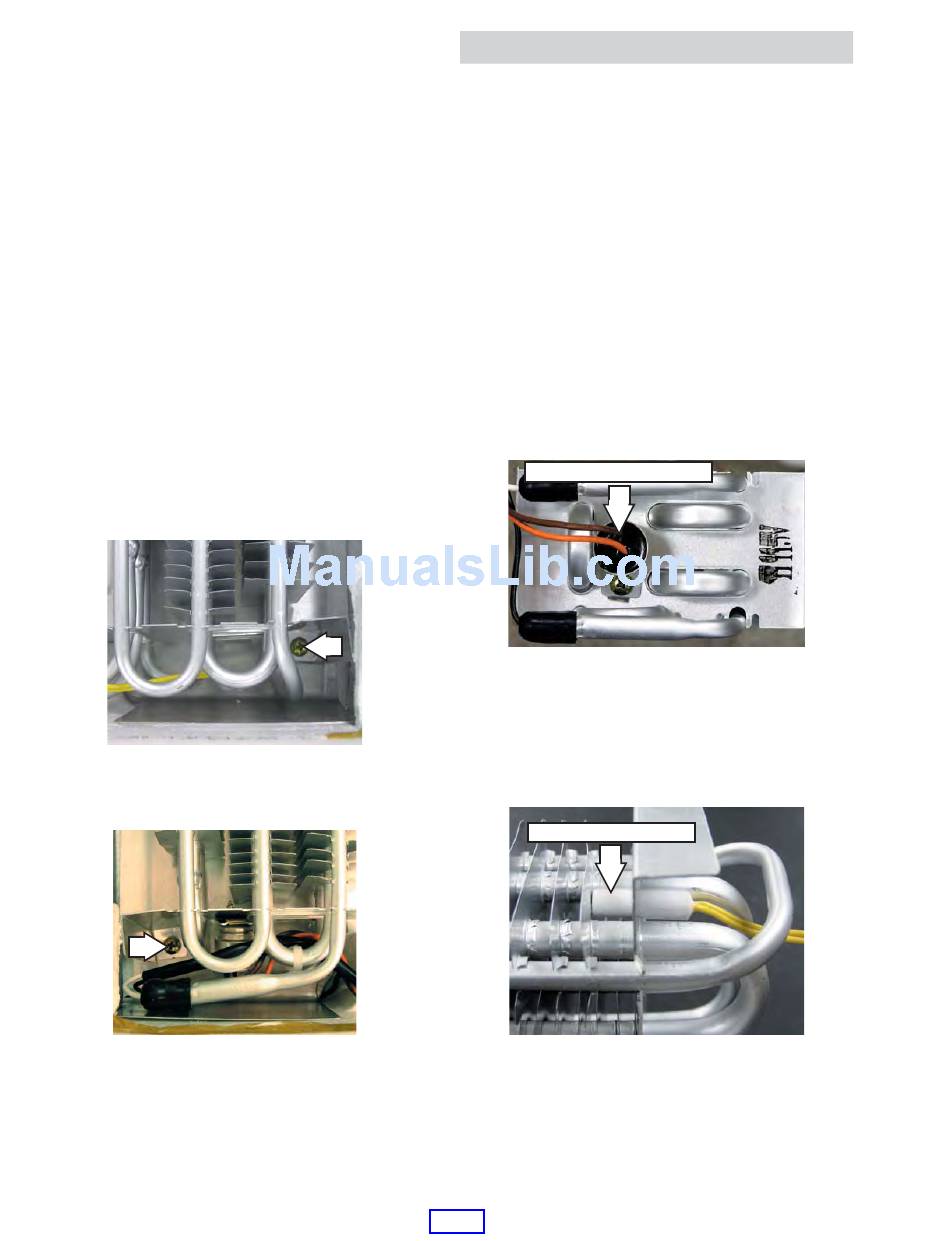

5. Remove the 2 Phillips-head screws that hold
the fresh food evaporator in place (Fig. 1 and
Fig. 2).
Fig. 1
Fig. 2
6. Disconnect the 2 electrical connectors and lift
the fresh food evaporator from the housing.
WARNING: The evaporator fi ns are very sharp.
Wear Kevlar gloves when handling.

Fresh Food Evaporator Components

To access the fresh food evaporator
components:
)
1. Access the fresh food evaporator assembly.
(See
Fresh Food Evaporator Assembly.
2. Remove the fresh food evaporator fan
assembly. (See
Assembly.
3. Access the fresh food evaporator. (See
Food Evaporator.
Defrost Safety Thermostat
To remove the defrost safety thermostat,
remove the single Phillips-head screw from
the thermostat mounting bracket. Separate the
defrost thermostat from the bracket.
Defrost Safety Thermostat
Fresh Food Evaporator Thermistor
To remove the fresh food evaporator thermistor,
pull it straight out from its mounting tube.
Fresh Food Thermistor
Note: The defrost heater is not available
separately and only comes as a part of the
evaporator assembly.
– 50 –
