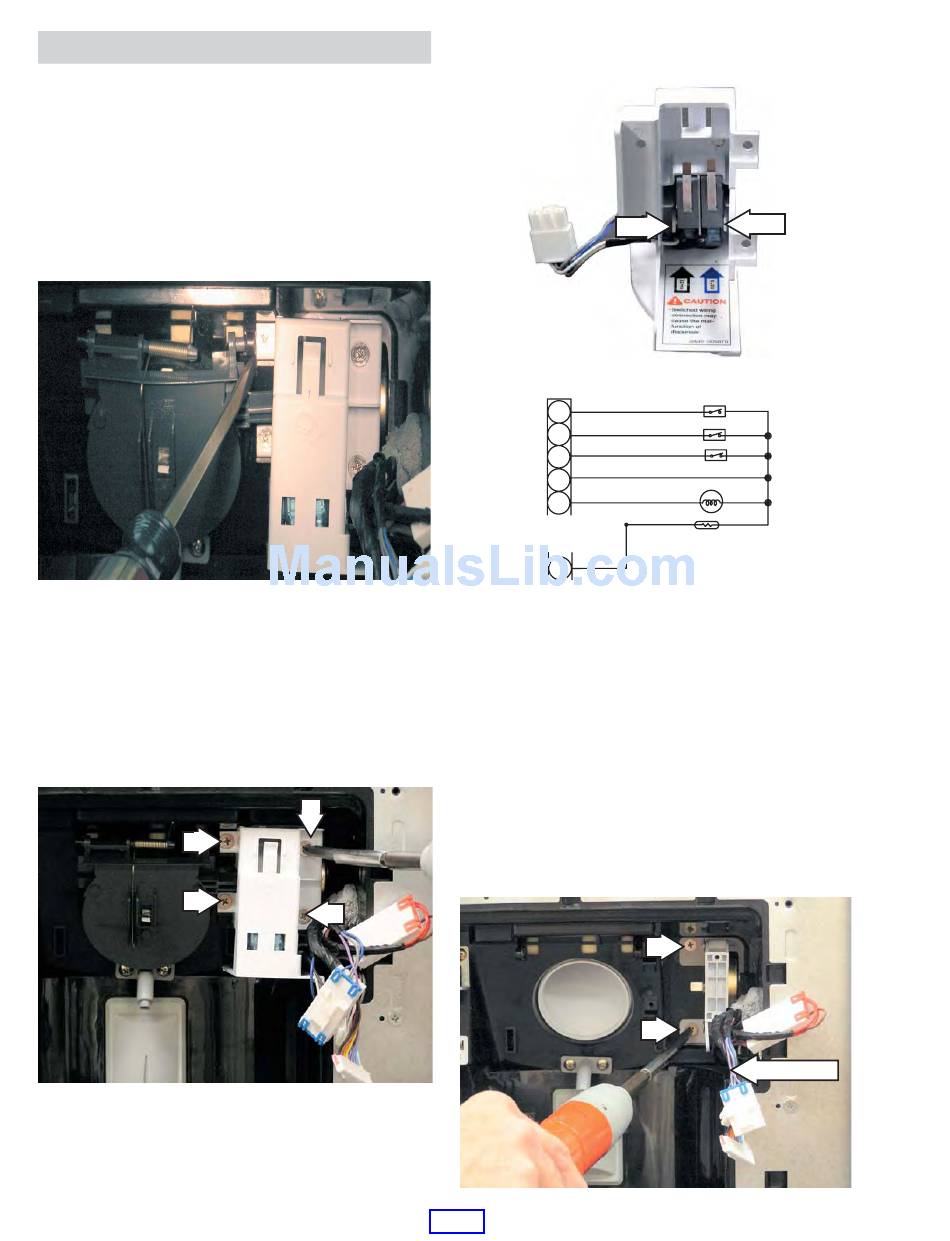

Duct Door Assembly

Duct Door
The dispenser control panel must be removed
before removing the duct door.
Insert a fl at-blade screwdriver between the duct
door (top right corner) and the switch housing.
Use the screwdriver to slide the door to the left,
until the hinge pin is free.
Duct Door Motor Switch Housing
The dispenser motor operates through 2
switches located in a housing at the top, right
corner of the dispenser cavity. The dispenser
motor switch housing is held in place by 4
Phillips-head screws.
The duct door motor switches are held in place by
2 tabs.
CN03
BLUE
1
PURPLE
2
WHITE
3
GRAY
4
LIGHT BLUE
5
CN02
RED
12
Duct Door Motor
The duct door motor rotates an eccentrically
shaped plastic cam which operates the duct door.
To remove the duct door motor:
1. Manually rotate the motor cam until the cam
lobe points forward.
2. Remove the 2 Phillips-head screws from the
motor mounting bracket. (Photo shown with
cam removed.)
– 32 –
Tab
Tab
ICE ROUTE SW 1
ICE ROUTE SW 2
DISPENSER SW
DISPENSER LAMP
RED
EXT - SENSOR
Duct Motor
